30439 - Toro 44" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 240000001 - 240999999) (2004) ELECTRICAL EQUIPMENT ASSEMBLY KAWASAKI FH430V-AS28 Parts Diagram

44" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp

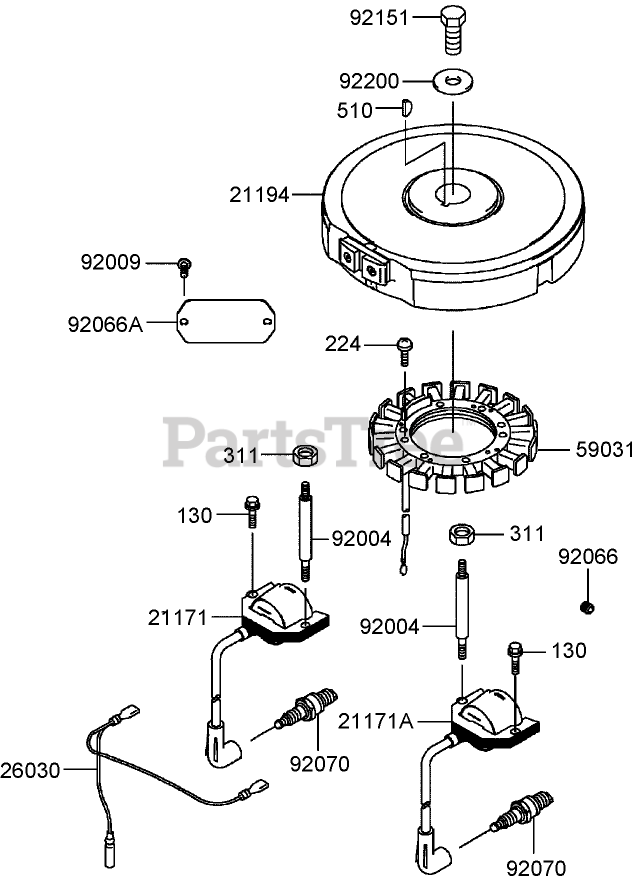

ELECTRICAL EQUIPMENT ASSEMBLY KAWASAKI FH430V-AS28 Parts Diagram

  • Title
21171

Toro 21171-7013

IGNITION COIL ASM
(Superseded to 21171-7034)

Note: Obtain parts from www.kawpowerepc.com

$81.99

$

In Stock, Qty 20+

0

21171A

Toro 21171-7014

Ignition COIL ASM

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

21194

Kawasaki 21194-7012

FLYWHEEL
(Superseded to 21194-0028)

Note: Obtain parts from www.kawpowerepc.com

$181.99

$

In Stock, only 1 left!

0

26030

Kawasaki 26030-7001

Harness

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

In Stock, Qty 8

0

59031

Kawasaki 59031-7002

Coil-Charging
(Superseded to 59031-7011)

Note: Obtain parts from www.kawpowerepc.com

$71.99

$

In Stock, only 3 left!

0

92004

Kawasaki 92004-7008

STUD

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 20+

0

92009

Kawasaki 92009-2308

Screw

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 6

0

92066

Kawasaki 92066-7002

Plug
(Superseded to 92066-0881)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 6

0

92066A

Kawasaki 92066-7005

Plug

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

Usually ships in 2-5 days

0

92070

Kawasaki 92070-7003

SPARK PLUG (R C J 8 Y, SOLID)

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 20+

0

92151

Kawasaki 92151-2097

BOLT (12X30)
(Superseded to 921547003)

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 20+

0

92200

Kawasaki 92200-7002

Washer

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 7

0

130

Kawasaki 130B0620

Bolt-Flanged (6X20)
(Superseded to 130AA0620)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0

224

Kawasaki 224B0520

SCREW-PAN (5X20)
(Superseded to 224AA0520)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

311

Toro 311F0600

NUT-HEX (6mm)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

510

Kawasaki 510A5100

Key-Woodruff

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0
