30436 - Toro 52" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 17hp (SN: 230000001 - 230999999) (2003) UPPER CONTROL ASSEMBLY Parts Diagram

52" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 17hp

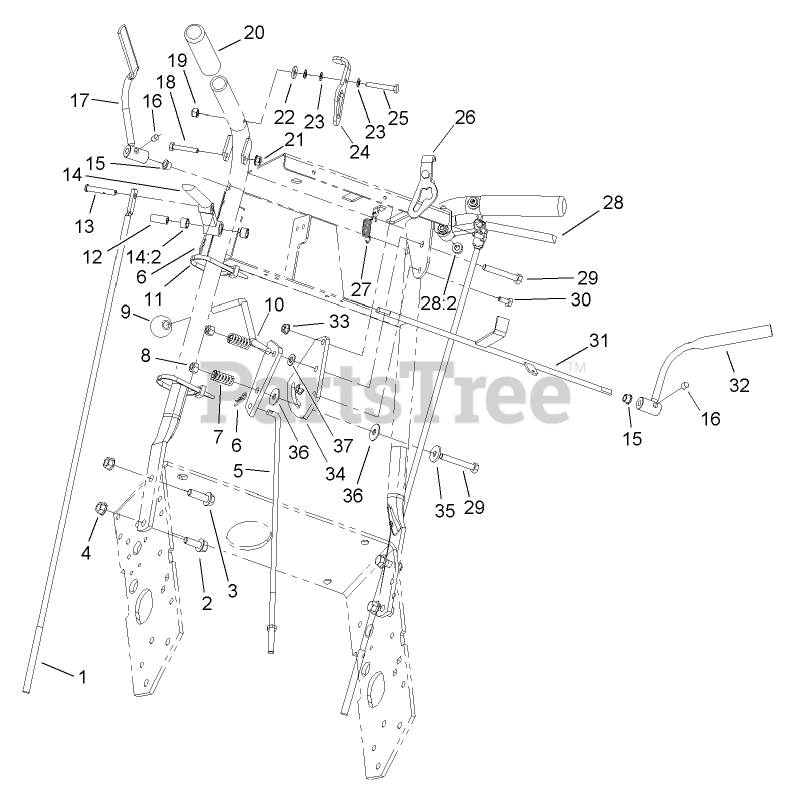

UPPER CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 1-413219

ROD-LEVER, DRIVE

$27.99

$

Usually ships in 3-6 days

0

2

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

3

Toro 3234-24

SCREW-HHF

$3.99

$

In Stock, Qty 18

0

4

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

5

Toro 106-5534

ROD-CONTROL, SPEED

$

$

Not available

6

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

7

Toro 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

$13.99

$

In Stock, only 4 left!

0

10

Toro 106-2748

LEVER-SHIFT

$102.99

$

In Stock, only 2 left!

0

11

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

12

Toro 1-603749

Bushing-Lever, Drive

$7.99

$

In Stock, Qty 5

0

13

Toro 1-613055

Pin-Clevis

$8.99

$

In Stock, only 2 left!

0

14

Toro 103-0218

LH Drive Lever ASM

$158.99

$

Usually ships in 3-6 days

0

14:2

Toro 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 8

0

15

Toro 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 10

0

16

Toro 1-803322

SCREW-SET

$1.49

$

In Stock, Qty 5

0

17

Toro 106-5485

LH OPERATOR PRESENCE CONTROL LEVER ASM

$63.99

$

Usually ships in 3-6 days

0

18

Toro 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

20

Toro 104-9838

GRIP-FOAM

$5.99

$

In Stock, Qty 16

0

21

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

22

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0

24

Toro 106-5483

LATCH-THUMB, LH

$77.99

$

Usually ships in 3-6 days

0

25

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 106-5481

LATCH-THUMB, RH

$77.99

$

Usually ships in 3-6 days

0

27

Toro 1-303363

SPRING-EXTENSION

$6.49

$

In Stock, only 1 left!

0

28

Toro 103-0219

RH Drive Lever ASM

$158.99

$

Usually ships in 3-6 days

0

28:2

Toro 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 8

0

29

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

30

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Toro 104-9803

ROD ASM

$149.99

$

Usually ships in 3-6 days

0

32

Toro 106-5486

RH OPERATOR PRESENCE CONTROL LEVER ASM

$59.99

$

Usually ships in 3-6 days

0

33

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

34

Toro 1-603730

PLATE-LEVER, SHIFTER

$37.99

$

Usually ships in 3-6 days

0

35

Toro 1-603716

Washer-Friction

$5.49

$

In Stock, only 2 left!

0

36

Toro 1-323244

Washer-Friction
(Superseded to 93-1633)

$2.99

$

In Stock, Qty 14

0

37

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
