30435 - Toro 44" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 17hp (SN: 230000001 - 230999999) (2003) PARKING BRAKE ASSEMBLY Parts Diagram

44" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 17hp

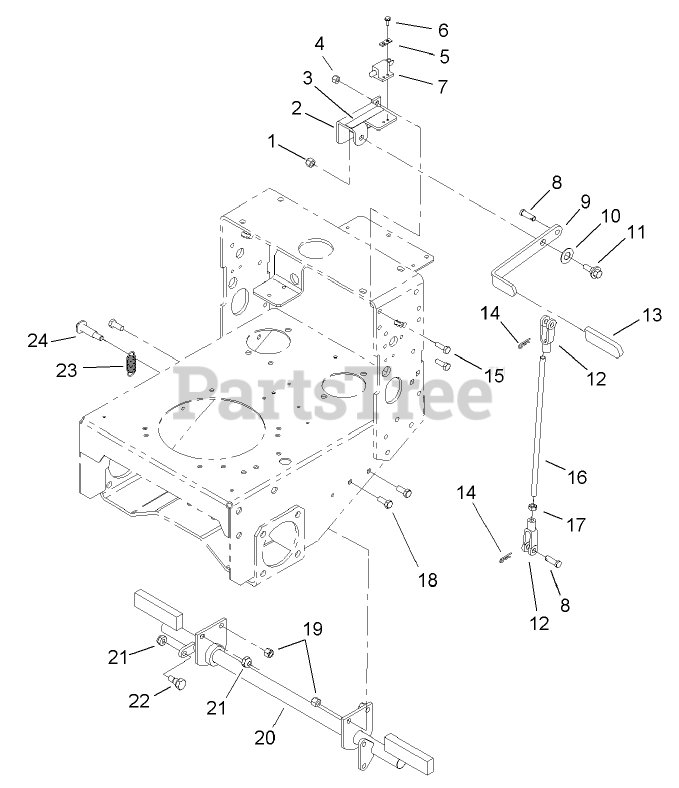

PARKING BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

2

Toro 106-0666-01

BRAKE HANDLE SUPPORT ASM

$

$

Not available

3

Toro 104-2838

DECAL-BRAKE

$30.99

$

Usually ships in 3-6 days

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 82-4570

PLATE-SWITCH

$15.99

$

Usually ships in 3-6 days

0

6

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 20+

0

7

Toro 95-1653

SWITCH-POLE, SINGLE

$21.99

$

Usually ships in 3-6 days

0

8

Toro 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 13

0

9

Toro 106-0671-01

HANDLE-BRAKE

$59.99

$

Usually ships in 3-6 days

0

10

Toro 257-7

BEARING-THRUST

$5.49

$

Usually ships in 3-6 days

0

11

Toro 93-2364

BOLT-SHOULDER

$3.49

$

Usually ships in 3-6 days

0

12

Toro 1-633131

YOKE-LINKAGE, BRAKE

$17.99

$

In Stock, Qty 6

0

13

Toro 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 5

0

14

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

15

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 106-0670

ROD-CONNECTING, BRAKE

$

$

Not available

17

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 5

0

18

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 10

0

19

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Toro 106-0660-01

PARKING BRAKE ASM

$

$

Not available

21

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

22

Toro 27-5240

BOLT-SHOULDER

$24.99

$

Usually ships in 3-6 days

0

23

Toro 613386

SPRING-BRAKE

$9.99

$

Usually ships in 3-6 days

0

24

Toro 56-6590

BOLT-WHEEL
(Superseded to 136-7198)

$1.99

$

In Stock, Qty 20+

0
