30435 - Toro 44" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 17hp (SN: 230000001 - 230999999) (2003) DRIVE BELT AND TENSIONER ASSEMBLY Parts Diagram

44" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 17hp

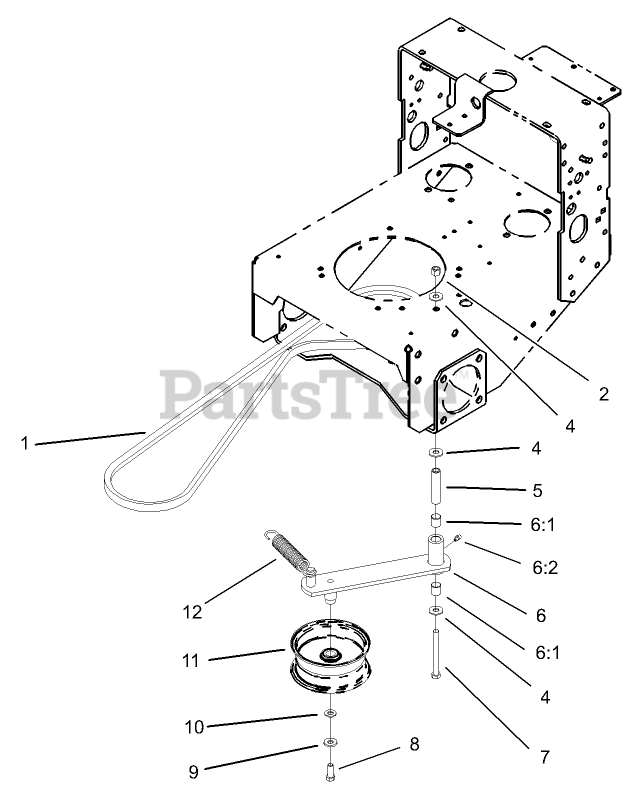

DRIVE BELT AND TENSIONER ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8120

V-BELT, PTO

$118.99

$

In Stock, only 3 left!

0

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 1-809107

WASHER-HARDENED

$5.49

$

In Stock, only 2 left!

0

5

Toro 104-6377

TUBE-IDLER

$21.99

$

Usually ships in 3-6 days

0

6

Toro 106-0734

IDLER ARM ASM

$311.99

$

Usually ships in 3-6 days

0

6:1

Toro 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

6:2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

7

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.99

$

In Stock, only 4 left!

0

8

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

10

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 1-413099

PULLEY-IDLER
(Superseded to 116-4666)

$71.99

$

In Stock, Qty 20+

0

12

Toro 105-8443

SPRING-EXTENSION

$39.99

$

In Stock, only 4 left!

0
