30434 - Toro 44" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 230000001 - 230999999) (2003) WHEEL MOTOR, PUMP IDLER AND BELT ASSEMBLY Parts Diagram

44" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp

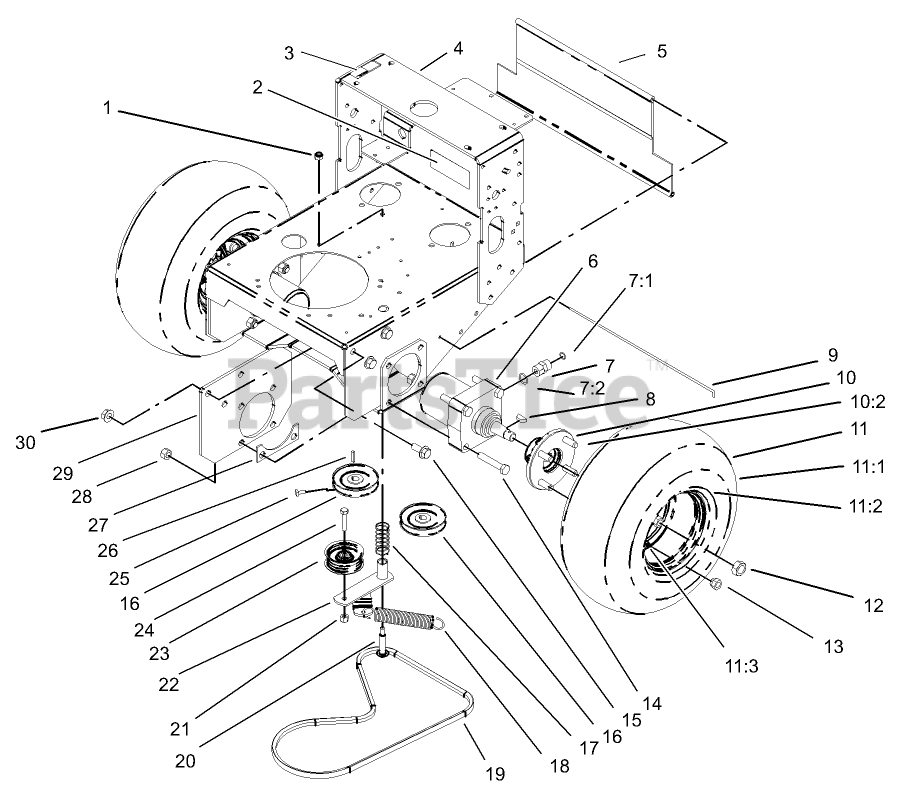

WHEEL MOTOR, PUMP IDLER AND BELT ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

2

Toro 98-0776

DECAL-CAUTION

$

$

Not available

3

Toro 95-2814

DECAL-SHUT OFF, FUEL

$

$

Not available

4

Toro 106-0548-01

HYDRO FRAME ASM

$1368.99

$

Usually ships in 3-6 days

0

5

Toro 95-1526

SHIELD-TRAILING

$85.99

$

Usually ships in 3-6 days

0

6

Toro 104-1171

HYD MOTOR ASM

$1264.99

$

Usually ships in 3-6 days

0

7

Toro 340-6

FITTING-STRAIGHT

$21.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

7:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

8

Toro 3257-8

KEY-WOODRUFF

$5.99

$

In Stock, Qty 5

0

9

Toro 95-1529

ROD-SHIELD

$5.99

$

Usually ships in 3-6 days

0

10

Toro 105-0800

WHEEL HUB ASM

$263.99

$

In Stock, only 1 left!

0

10:2

Toro 10-6830

STUD-TYPE, DRIVE
(Superseded to 111512)

$

$

Not available

11

Toro 104-6321

WHEEL AND TIRE ASM
(Superseded to 106-0892)

$325.99

$

Usually ships in 3-6 days

0

11:1

Toro 104-6322

TIRE

$117.99

$

In Stock, only 2 left!

0

11:2

Toro 104-6323

WHEEL
(Superseded to 106-0893)

$183.99

$

Usually ships in 3-6 days

0

11:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$7.49

$

In Stock, Qty 9

0

12

Toro 85-7310

NUT-MOTOR, WHEEL

$28.99

$

Usually ships in 3-6 days

0

13

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 5

0

14

Toro 325-11

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

15

Toro 3234-32

SCREW-HHF

$10.99

$

In Stock, only 1 left!

0

16

Toro 105-5648

PULLEY-PUMP

$133.99

$

Usually ships in 3-6 days

0

17

Toro 88-1880

SPRING-COMPRESSION

$

$

Not available

18

Toro 68-2190

SPRING

$78.99

$

In Stock, only 1 left!

0

19

Toro 105-5649

V-BELT

$89.99

$

In Stock, only 3 left!

0

20

Toro 27-6230

BOLT-WHEEL

$8.99

$

In Stock, only 2 left!

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

22

Toro 86-4770

IDLER LEVER ASM

$113.99

$

Usually ships in 3-6 days

0

23

Toro 62-4540

PULLEY

$98.99

$

In Stock, only 2 left!

0

24

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

26

Toro 80-6090

KEY-PUMP

$10.99

$

In Stock, only 2 left!

0

27

Toro 86-4740-01

SPACER-FRAME

$

$

Not available

28

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

29

Toro 105-5643-01

PLATE-FRAME

$

$

Not available

30

Toro 32128-23

NUT-HF

$1.99

$

In Stock, Qty 14

0
