30432 - Toro 52" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 17hp (SN: 230000001 - 230999999) (2003) STARTER ASSEMBLY KAWASAKI FH500V-AS29 Parts Diagram

52" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 17hp

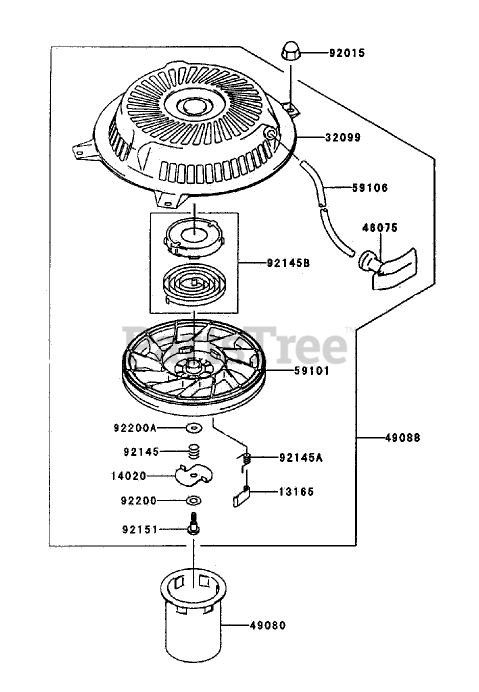

STARTER ASSEMBLY KAWASAKI FH500V-AS29 Parts Diagram

  • Title
13165

Toro 13165-700

Pawl, Recoil Starter

Note: Obtain parts from your local Kawasaki dealer.

$

$

Currently unavailable

14020

Kawasaki 14020-7001

Retainer

Note: Obtain parts from your local Kawasaki dealer.

$9.99

$

In Stock, only 4 left!

0

32099

Kawasaki 32099-7001

Case, Recoil Starter

Note: Obtain parts from your local Kawasaki dealer.

$60.99

$

In Stock, only 1 left!

0

46075

Kawasaki 46075-7001

GRIP-STARTER, RECOIL

Note: Obtain parts from your local Kawasaki dealer.

$5.49

$

In Stock, Qty 20+

0

49080

Kawasaki 49080-7001

Pulley-Starting
(Superseded to 49080-0006)

Note: Obtain parts from your local Kawasaki dealer.

$14.99

$

In Stock, Qty 6

0

49088

Toro 49088-7001

Starter-Recoil

Note: Obtain parts from your local Kawasaki dealer.

$

$

Currently unavailable

59101

Kawasaki 59101-7001

REEL-STARTER, RECOIL

Note: Obtain parts from your local Kawasaki dealer.

$26.99

$

In Stock, only 1 left!

0

59106

Kawasaki 59106-7001

Rope
(Superseded to 59106-7005)

Note: Obtain parts from your local Kawasaki dealer.

$10.99

$

In Stock, only 4 left!

0

92015

Kawasaki 92015-1170

Nut
(Superseded to 92210-0003)

Note: Obtain parts from your local Kawasaki dealer.

$0.99

$

In Stock, Qty 20+

0

92145

Kawasaki 92145-7006

Spring

Note: Obtain parts from your local Kawasaki dealer.

$1.49

$

In Stock, Qty 5

0

92145A

Kawasaki 92145-7007

Spring

Note: Obtain parts from your local Kawasaki dealer.

$0.99

$

In Stock, Qty 18

0

92145B

Kawasaki 92145-7008

Spring

Note: Obtain parts from your local Kawasaki dealer.

$20.99

$

In Stock, Qty 8

0

92151

Kawasaki 92151-7008

Bolt

Note: Obtain parts from your local Kawasaki dealer.

$2.49

$

In Stock, Qty 7

0

92200

Kawasaki 92200-7004

Washer

Note: Obtain parts from your local Kawasaki dealer.

$1.49

$

In Stock, Qty 13

0

92200A

Kawasaki 92200-7005

Washer

Note: Obtain parts from your local Kawasaki dealer.

$1.99

$

In Stock, only 3 left!

0
