30432 - Toro 52" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 17hp (SN: 230000001 - 230999999) (2003) CYLINDER/CRANKCASE ASSEMBLY KAWASAKI FH500V-AS29 Parts Diagram

52" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 17hp

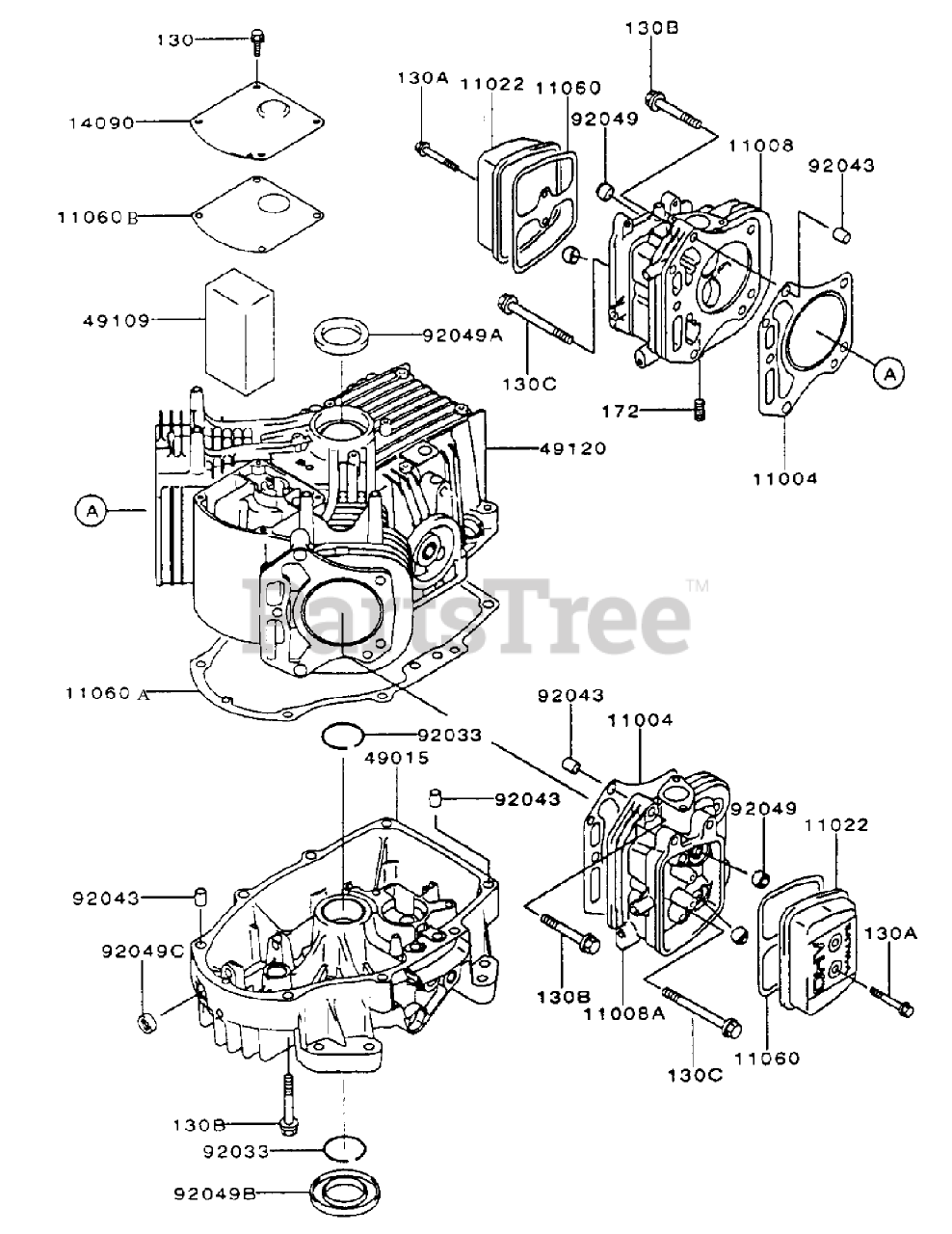

CYLINDER/CRANKCASE ASSEMBLY KAWASAKI FH500V-AS29 Parts Diagram

  • Title

11004

Toro 11004-7001

Gasket-Head

Note: Obtain parts from your local Kawasaki dealer.

$

$

Currently unavailable

11008

Toro 11008-7001

Head-Comp-Cylinder No. 1

Note: Obtain parts from your local Kawasaki dealer.

$

$

Currently unavailable

11008A

Toro 11008-7002

Head-Comp-Cylinder

Note: Obtain parts from your local Kawasaki dealer.

$

$

Currently unavailable

11022

Toro 11022-7001

Case-Rocker

Note: Obtain parts from your local Kawasaki dealer.

$

$

Currently unavailable

11060

Kawasaki 11060-7001

GASKET-CASE, ROCKER

Note: Obtain parts from your local Kawasaki dealer.

$6.99

$

In Stock, Qty 20+

0

11060A

Kawasaki 11060-7008

GASKET-COVER, CRANKCASE
(Superseded to 11060-7007)

Note: Obtain parts from your local Kawasaki dealer.

$6.99

$

In Stock, Qty 20+

0

11060B

Toro 11060-7015

Gasket, Breather

Note: Obtain parts from your local Kawasaki dealer.

$

$

Currently unavailable

14090

Toro 14090-7001

Cover, Breather

Note: Obtain parts from your local Kawasaki dealer.

$

$

Currently unavailable

49015

Toro 49015-6215

Cover-Crankcase

Note: Obtain parts from your local Kawasaki dealer.

$

$

Currently unavailable

49109

Toro 49109-7002

Element-Breather

Note: Obtain parts from your local Kawasaki dealer.

$

$

Currently unavailable

49120

Toro 49120-6119

Crankcase-Comp

Note: Obtain parts from your local Kawasaki dealer.

$

$

Currently unavailable

92033

Kawasaki 92033-7003

Ring-Snap

Note: Obtain parts from your local Kawasaki dealer.

$0.99

$

In Stock, Qty 17

0

92043

Kawasaki 92043-7001

Pin

Note: Obtain parts from your local Kawasaki dealer.

$0.99

$

In Stock, Qty 7

0

92049

Kawasaki 92049-7001

SEAL-OIL, R V C2 (6X11X10.2)

Note: Obtain parts from your local Kawasaki dealer.

$8.49

$

Usually ships in 2-5 days

0

92049A

Kawasaki 92049-7002

Seal-Oil
(Superseded to 92049-7010)

Note: Obtain parts from your local Kawasaki dealer.

$3.49

$

In Stock, Qty 20+

0

92049B

Kawasaki 92049-7004

Seal-Oil
(Superseded to 92049-7011)

Note: Obtain parts from your local Kawasaki dealer.

$5.99

$

In Stock, Qty 20+

0

92049C

Kawasaki 92049-7005

SEAL-OIL, S O (8X14X5 H S)
(Superseded to 920497019)

Note: Obtain parts from your local Kawasaki dealer.

$2.49

$

In Stock, Qty 20+

0

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain parts from your local Kawasaki dealer.

$0.99

$

In Stock, Qty 15

0

130A

Kawasaki 130B0640

Bolt-Flanged (6X40)
(Superseded to 130AA0640)

Note: Obtain parts from your local Kawasaki dealer.

$0.99

$

In Stock, only 3 left!

0

130B

Toro 130T0850

Bolt-Flanged (8X50)

Note: Obtain parts from your local Kawasaki dealer.

$

$

Currently unavailable

130C

Kawasaki 130T0875

Bolt-Flanged (8X75)
(Superseded to 130CA0875)

Note: Obtain parts from your local Kawasaki dealer.

$2.49

$

In Stock, Qty 9

0

172

Toro 172G0818

Bolt-Stud (8X18)

Note: Obtain parts from your local Kawasaki dealer.

$

$

Currently unavailable
