30431 - Toro 44" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp (SN: 240000001 - 240999999) (2004) SPINDLE, PULLEY AND BELT ASSEMBLY Parts Diagram

44" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp

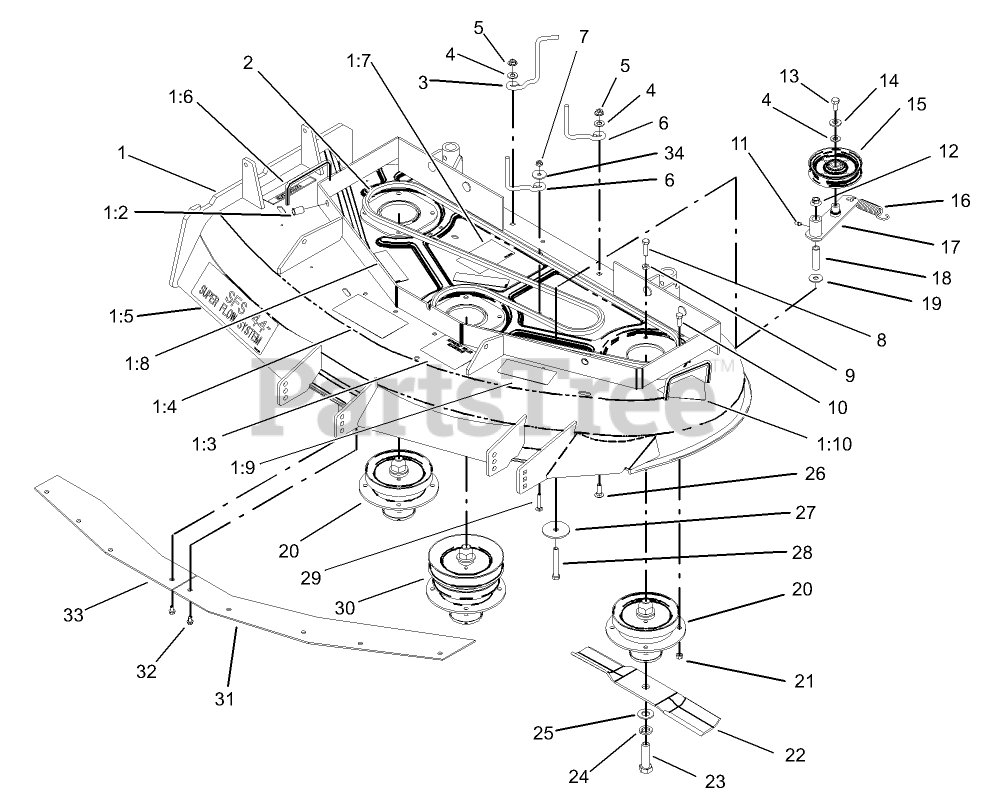

SPINDLE, PULLEY AND BELT ASSEMBLY Parts Diagram

  • Title

1

Toro 106-0617

Deck ASM

$

$

Not available

1:2

Toro 32148-10

INSERT-NUT

$8.49

$

Usually ships in 3-6 days

0

1:3

Toro 106-5532

DECAL-ANTI SCALP

$

$

Not available

1:4

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

1:5

Toro 106-0704

DECAL

$

$

Not available

1:6

Toro 104-8569

DECAL-WARNING

$

$

Not available

1:7

Toro 104-8186

DECAL-ROUTING, BELT

$10.99

$

Usually ships in 3-6 days

0

1:8

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

1:9

Toro 68-8340

DECAL-TORQUE

$21.99

$

In Stock, only 1 left!

0

1:10

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

2

Toro 27-1160

V-BELT

$63.99

$

In Stock, only 1 left!

0

3

Toro 106-5488

Guide-Belt

$

$

Not available

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

6

Toro 52-4780

ROD-BELT

$14.99

$

In Stock, only 2 left!

0

7

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

8

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

9

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

10

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

12

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

14

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

15

Toro 65-5940

PULLEY-IDLER

$43.99

$

In Stock, Qty 7

0

16

Toro 54-2730

Spring-Extension

$22.99

$

In Stock, only 2 left!

0

17

Toro 104-8110

IDLER ARM ASM

$

$

Not available

18

Toro 104-8113

TUBE-IDLER

$23.99

$

Usually ships in 3-6 days

0

19

Toro 52-2860

WASHER

$1.49

$

In Stock, Qty 13

0

20

Toro 106-0786

Spindle Housing ASM

$571.99

$

Usually ships in 3-6 days

0

21

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

22

Toro 54-0010

Blade
(Superseded to 54-0010-03)

$33.99

$

Usually ships in 3-6 days

0

23

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 20+

0

24

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

25

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

26

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

27

Toro 20-9530

WASHER-END

$37.99

$

Usually ships in 3-6 days

0

28

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 17

0

29

Toro 3229-4

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

30

Toro 106-0784

Spindle Housing ASM
(Superseded to 106-0801)

$

$

Not available

31

Toro 100-3258-03

PLATE-BLOWOUT, LH

$162.99

$

Usually ships in 3-6 days

0

32

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

33

Toro 100-3257-03

PLATE-BLOWOUT, RH

$162.99

$

Usually ships in 3-6 days

0

34

Toro 1-503033

Washer-Retainer, Pulley

$5.49

$

Usually ships in 3-6 days

0
