30431 - Toro 44" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp (SN: 240000001 - 240999999) (2004) LOWER CONTROL ASSEMBLY Parts Diagram

44" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp

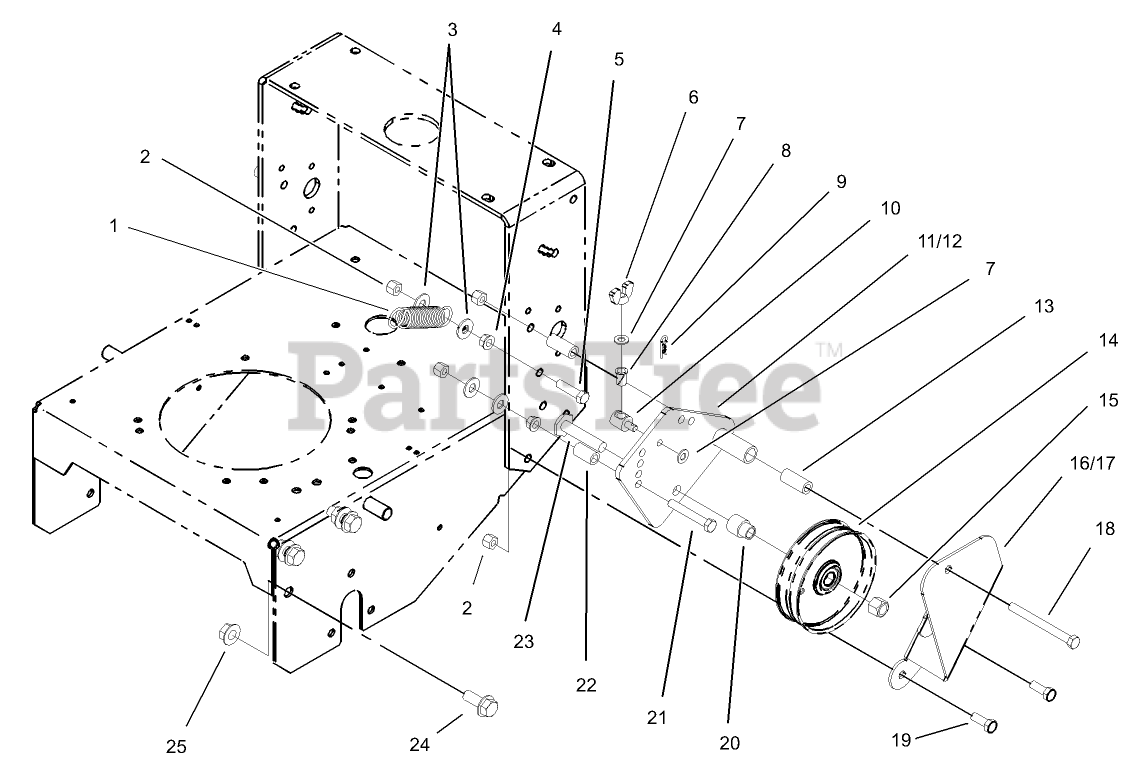

LOWER CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, Qty 20+

0

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

3

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

4

Toro 32128-40

NUT-FLANGE

$7.49

$

Usually ships in 3-6 days

0

5

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 32103-25

NUT-WING

$5.49

$

Usually ships in 3-6 days

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 52-2890

BUSHING-NYLON

$3.49

$

Usually ships in 3-6 days

0

9

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

10

Toro 68-9690

FITTING-ROD

$56.99

$

Usually ships in 3-6 days

0

11

Toro 106-0611-01

LH IDLER BRACKET ASM

$77.99

$

In Stock, only 1 left!

0

12

Toro 106-0612-01

RH IDLER BRACKET ASM

$

$

Not available

13

Toro 74-0040

SPACER-PIVOT, IDLER

$6.49

$

Usually ships in 3-6 days

0

14

Toro 95-2800

PULLEY-IDLER

$44.99

$

Usually ships in 3-6 days

0

15

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 67-6380-01

BRACKET-SUPPORT, LH

$126.99

$

Usually ships in 3-6 days

0

17

Toro 67-6370-01

BRACKET-SUPPORT, RH

$126.99

$

Usually ships in 3-6 days

0

18

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 6

0

19

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

20

Toro 95-2801

SPACER-PULLEY

$9.49

$

Usually ships in 3-6 days

0

21

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

22

Toro 106-0564

SPACER

$

$

Not available

23

Toro 51-4450

SCREW-LEVELER

$13.99

$

Usually ships in 3-6 days

0

24

Toro 3234-32

SCREW-HHF

$10.99

$

In Stock, only 1 left!

0

25

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0
