30431 - Toro 44" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp (SN: 240000001 - 240999999) (2004) CYLINDER/CRANKCASE ASSEMBLY KAWASAKI FH451V-AS11 Parts Diagram

44" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp

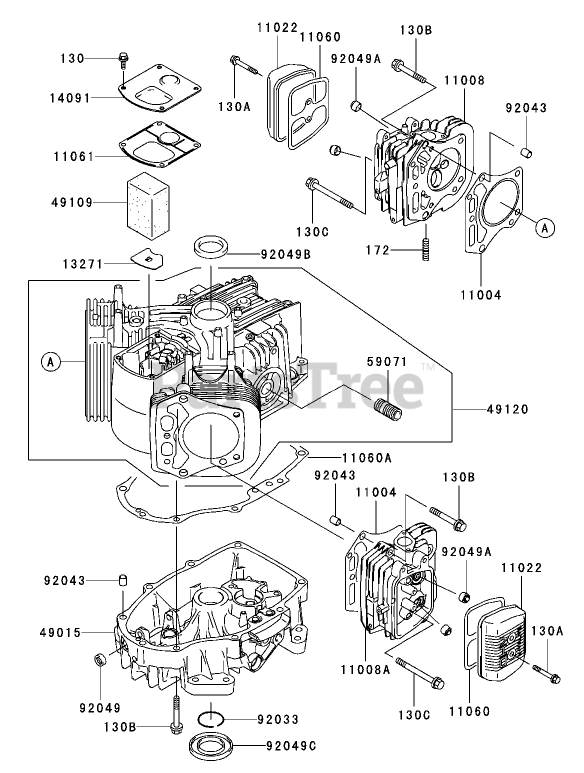

CYLINDER/CRANKCASE ASSEMBLY KAWASAKI FH451V-AS11 Parts Diagram

  • Title

11004

Kawasaki 11004-7005

Gasket-Head
(Superseded to 11004-7015)

Note: Obtain Parts From Kawasaki

$10.99

$

Usually ships in 2-5 days

0

11008

Kawasaki 11008-6042

Head-Cylinder
(Superseded to 11008-6043)

Note: Obtain Parts From Kawasaki

$273.99

$

In Stock, Qty 9

0

11008A

Kawasaki 11008-7009

Head-Cylinder
(Superseded to 11008-7020)

Note: Obtain Parts From Kawasaki

$273.99

$

In Stock, only 1 left!

0

11022

Toro 11022-7003

Case-Rocker

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

11060

Kawasaki 11060-7001

GASKET-CASE, ROCKER

Note: Obtain Parts From Kawasaki

$6.99

$

In Stock, Qty 20+

0

11060A

Kawasaki 11060-7008

GASKET-COVER, CRANKCASE
(Superseded to 11060-7007)

Note: Obtain Parts From Kawasaki

$6.99

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-7001

GASKET-BREATHER
(Superseded to 99996-6104)

Note: Obtain Parts From Kawasaki

$18.99

$

In Stock, Qty 20+

0

13271

Kawasaki 13271-7016

Plate

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, only 3 left!

0

14091

Toro 14091-7006

Cover

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

49015

Kawasaki 49015-6254

Cover-Crankcase
(Superseded to 49015-6223)

Note: Obtain Parts From Kawasaki

$

$

Not available

49109

Toro 49109-7002

Element-Breather

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

49120

Kawasaki 49120-7021

Crankcase-Comp
(Superseded to 49120-6117)

Note: Obtain Parts From Kawasaki

$

$

Not available

59071

Kawasaki 59071-2079

Joint

Note: Obtain Parts From Kawasaki

$6.49

$

In Stock, Qty 8

0

92033

Kawasaki 92033-7003

Ring-Snap

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 17

0

92043

Kawasaki 92043-7001

Pin

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 7

0

92049

Kawasaki 92049-7005

SEAL-OIL, S O (8X14X5 H S)
(Superseded to 920497019)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 20+

0

92049A

Kawasaki 92049-7009

Seal-Oil
(Superseded to 92049-7001)

Note: Obtain Parts From Kawasaki

$8.49

$

Usually ships in 2-5 days

0

92049B

Kawasaki 92049-7010

SEAL-OIL, SD (35X48X8 R HS)

Note: Obtain Parts From Kawasaki

$3.49

$

In Stock, Qty 20+

0

92049C

Kawasaki 92049-7011

SEAL-OIL, S D (35X62X8 L H S)

Note: Obtain Parts From Kawasaki

$5.99

$

In Stock, Qty 20+

0

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 15

0

130A

Kawasaki 130B0640

Bolt-Flanged (6X40)
(Superseded to 130AA0640)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, only 3 left!

0

130B

Toro 130T0850

Bolt-Flanged (8X50)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

130C

Kawasaki 130T0875

Bolt-Flanged (8X75)
(Superseded to 130CA0875)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 9

0

172

Toro 172G0818

Bolt-Stud (8X18)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable
