3040 M (UT-26201) - Green Machine String Trimmer Clutch Parts Diagram

String Trimmer

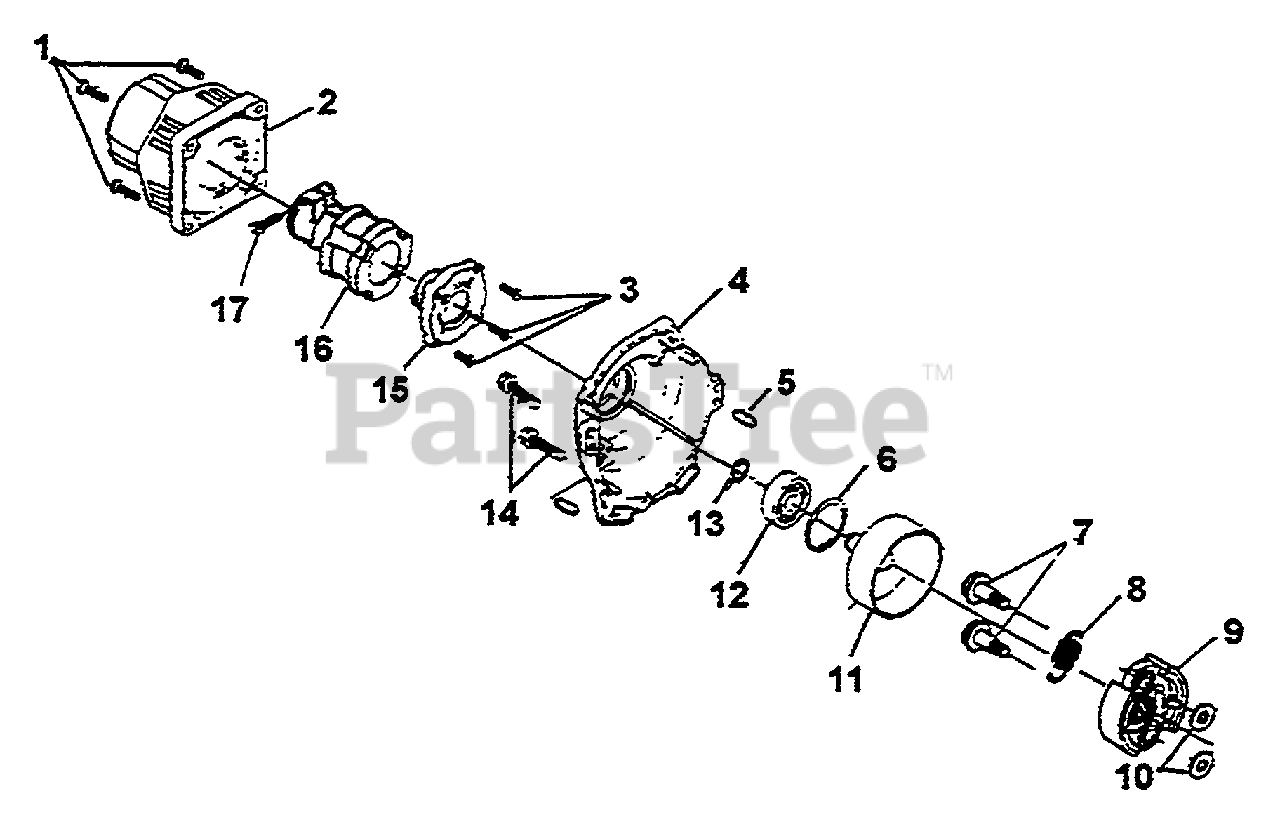

Clutch Parts Diagram

  • Title

1

Homelite GM030016

BOLT & WASHER
(Superseded to UP07108)

$

$

Not available

2

Homelite GM306114

CLUTCH CASE

$

$

Currently unavailable

3

Homelite GM197104

SCREW

$

$

Not available

4

Homelite GM286112

CASE-COVER

$84.99

$

Usually ships in 3-7 days

0

5

Homelite GM288204

PIN, DOWL

$

$

Currently unavailable

6

Homelite GM062801

SNAP RING

$

$

Currently unavailable

7

Homelite GM012448

BOLT, CLUTCH

$

$

Currently unavailable

8

Homelite GM190026

SPRING, CLUTCH

$

$

Not available

9

Homelite GM190111

CLUTCH KIT

Note: Includes ref No. 8 P/N GM190026 (SPRING, CLUTCH)

$

$

Currently unavailable

10

Homelite GM040010

WASHER
(Superseded to GM042802)

$

$

Not available

11

Homelite GM306711

CLUTCH DRUM

$

$

Currently unavailable

12

Homelite GM070009

BEARING

$

$

Currently unavailable

13

Homelite GM062101

SNAP RING
(Superseded to UP07917)

$

$

Not available

14

Homelite GM032803

BOLT & WASHER

$2.99

$

Usually ships in 3-7 days

0

15

Homelite GM306113

BEARING COVER

$

$

Currently unavailable

16

Homelite GM305507

INSERT RING

$143.99

$

Usually ships in 3-7 days

0

17

Homelite GM032803

SCREW

$2.99

$

Usually ships in 3-7 days

0
