3040 M (UT-26201) - Green Machine String Trimmer 2871 Cultivator Attachment Parts Diagram

String Trimmer

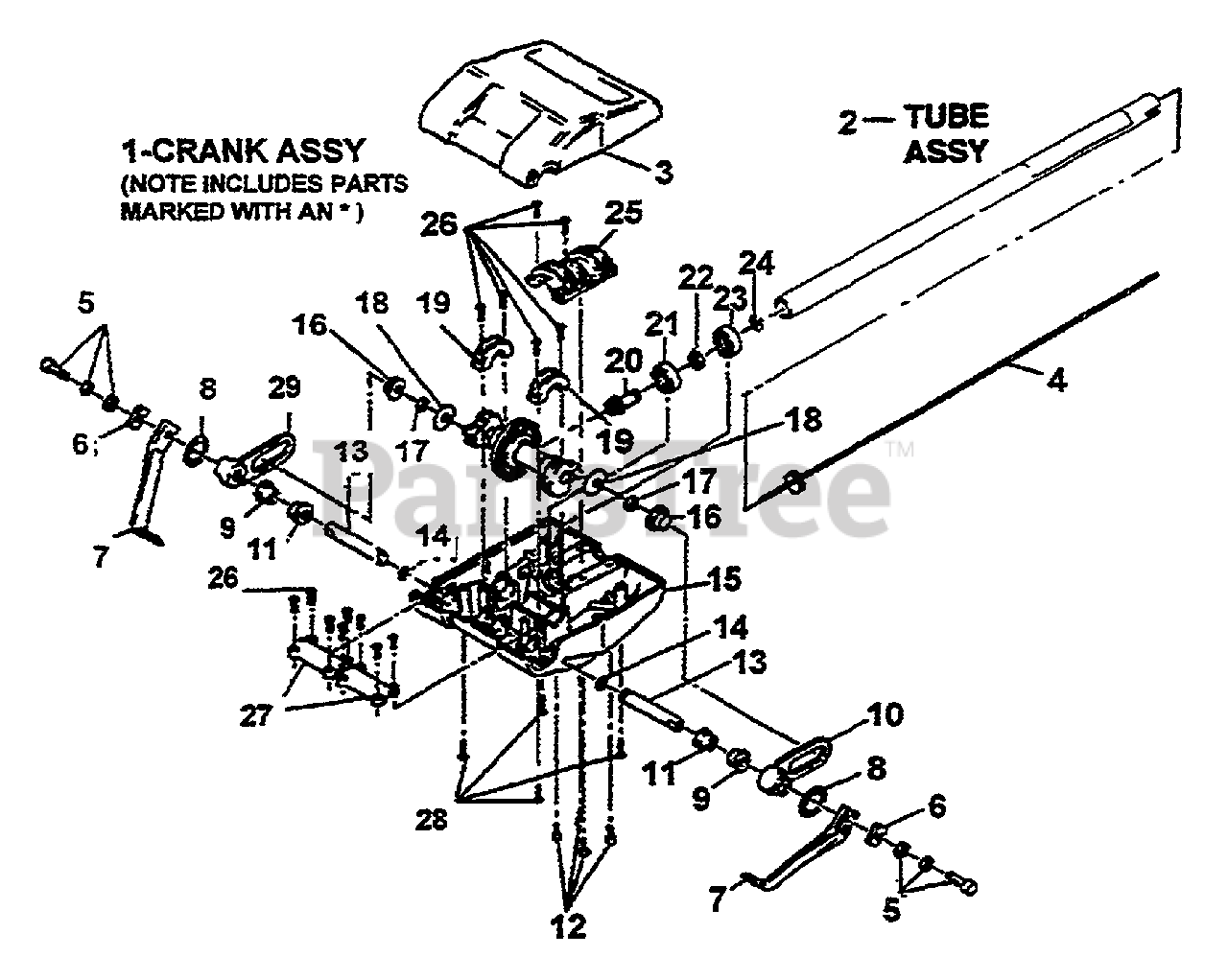

2871 Cultivator Attachment Parts Diagram

  • Title

1

Homelite GM230324

CRANK ASSY

Note: Includes #'s 16, 17 & 18.

$

$

Currently unavailable

2

Homelite GM280316

TUBE ASSY

$61.99

$

Usually ships in 3-7 days

0

3

Homelite GM235206

UPPER COVER

$

$

Currently unavailable

4

Homelite GM237803

FLEX CABLE
(Superseded to A08177)

$

$

Not available

5

Homelite GM970307

BOLT, SEMS

$

$

Not available

6

Homelite GM236706

TINE SUPPORT

$

$

Not available

7

Homelite GM976903

TINE

$

$

Not available

8

Homelite GM235701

"O" RING
(Superseded to UP07916)

$

$

Not available

9

Homelite GM977703

BUSHING

$

$

Not available

10

Homelite GM236501

ROCKER ARM L.H.
(Superseded to UP08046)

$

$

Not available

11

Homelite GM977706

BUSHING

$

$

Currently unavailable

12

Homelite GM011419

SCREW
(Superseded to 82618)

$

$

Not available

13

Homelite GM236704

ROCKER SHAFT

$

$

Not available

14

Homelite GM061301

WIRE RING

$

$

Not available

15

Homelite GM236103

LOWER COVER

$83.99

$

Usually ships in 3-7 days

0

16

Homelite GM235207

BEARING CAP

$2.99

$

In Stock, only 2 left!

0

17

Homelite GM071403

NEEDLE BEARING

$13.99

$

In Stock, only 2 left!

0

18

Homelite GM236903

WASHER
(Superseded to UP07281)

$

$

Not available

19

Homelite GM236106

CRANKSHAFT CLAMP

$

$

Not available

20

Homelite GM236503

PINION GEAR
(Superseded to 08462)

$

$

Not available

21

Homelite GM070005

BEARING
(Superseded to 09146)

$

$

Not available

22

Homelite GM236702

SPACER

$

$

Currently unavailable

23

Homelite GM071012

BEARING

$

$

Not available

24

Homelite GM060008

SNAP RING

$2.49

$

Usually ships in 3-7 days

0

25

Homelite GM236104

SHAFT CLAMP

$

$

Currently unavailable

26

Homelite GM011601

SCREW
(Superseded to 82618)

$

$

Not available

27

Homelite GM236105

SHAFT CLAMP

$

$

Not available

28

Homelite GM011308

SCREW

$

$

Not available

29

Homelite GM236502

ROCKER ARM R.H.
(Superseded to UP08041)

$

$

Not available
