304 (190-304-100) - Cub Cadet 28" Rear Tiller Attachment Tiller Mounting & Lift Parts Diagram

28" Rear Tiller Attachment

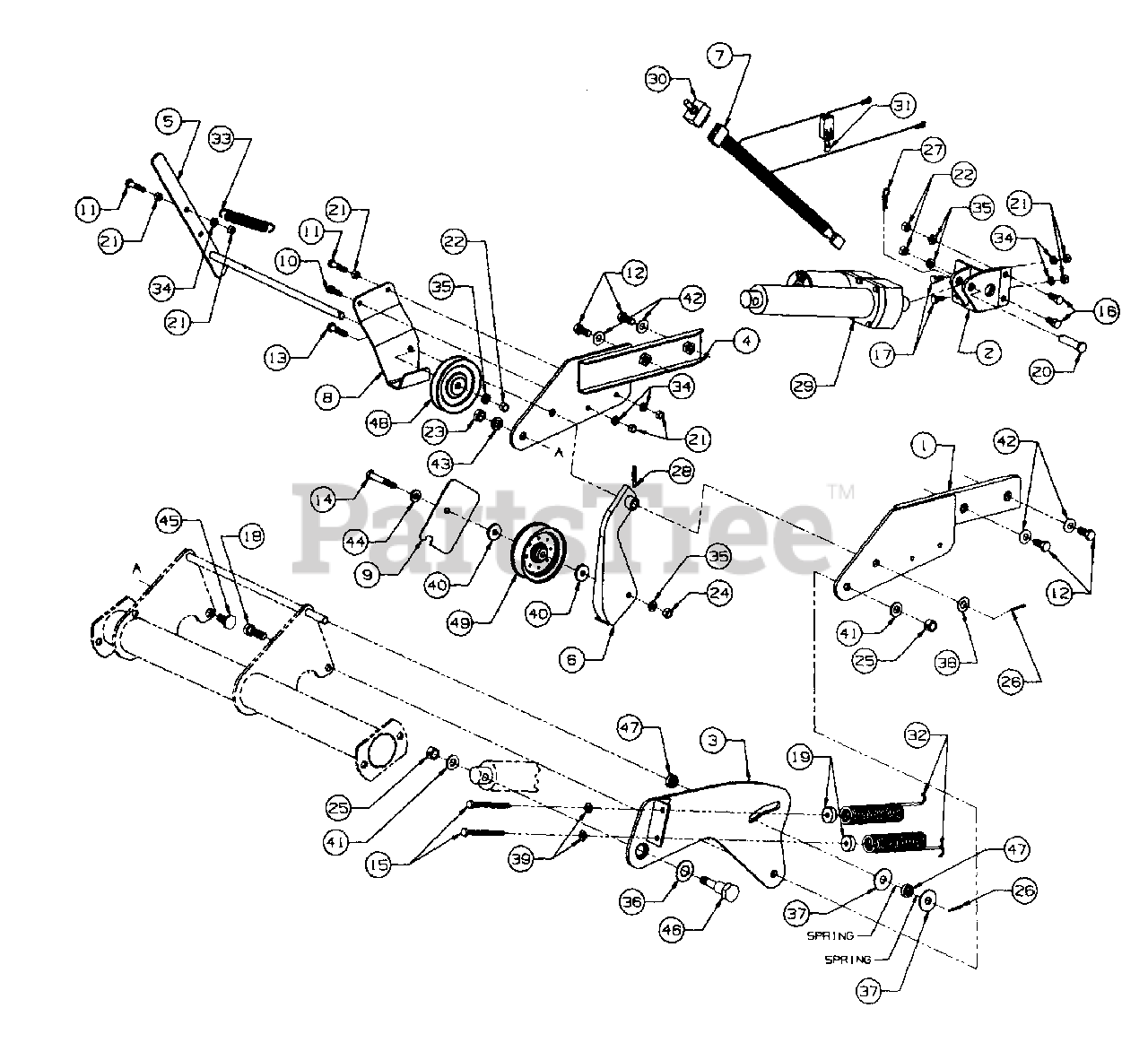

Tiller Mounting & Lift Parts Diagram

  • Title

1

Cub Cadet 603-0217

Bracket, Tiller Mtg RH-Channel

Variations

Cub Cadet 603-0217-0498

MOUNT, TILLER-R/H (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

2

Cub Cadet 603-0226

Bracket, Lift Cylinder Mtg

Variations

Cub Cadet 603-0226-0498

TILLER MOUNTING ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

$

$

3

Cub Cadet 603-0238

Arm, Lift

Variations

Cub Cadet 603-0238-0498

ASSEMBLY LIFT-ARM (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

4

Cub Cadet 603-0246

Bracket, Tiller Mtg LH-Channel

Variations

Cub Cadet 603-0246-0498

MOUNT, TILLER-L/H (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

5

Cub Cadet 603-0255

Shaft Assy, Idler

Variations

Cub Cadet 603-0255-0498

SHAFT, IDLER - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0255-0637

SHAFT, IDLER - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 603-0301

Bracket, Floating Idler
(Superseded to 603-0301-0498)

Variations

Cub Cadet 603-0301-0498

ASSY IDLER BRACKET - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0301-0637

USE 603-0301-0498 ASSY IDLER - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 629-3012

Harness, Lift Cylinder
(Superseded to 929-3012)

$

$

Not available

Cub Cadet 725-0157

Tie, Cable

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 703-2583

Bracket. Fixed Idler

Variations

Cub Cadet 703-2583-0498

IDLER BRACKET (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2583-0637

IDLER BRACKET (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 703-2732

Plate, Belt Guard
(Superseded to 703-2732-0637)

Variations

Cub Cadet 703-2732-0637

PLATE-BELT GUARD - POWDER BLACK (0637)

$

$

Not available

$

$

10

Cub Cadet 710-0376

Screw, Hex Cap, 5/16-18 X 1.0 Lg GR5

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet 710-0442

Screw, Hex Cap, 5/16-18 X 1.50 Lg
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0505

Screw, Hex Cap, 7/16-14 X 1.0 Lg

$6.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 X 1.50 Lg GR5

$4.49

$

In Stock, Qty 6

0

14

Cub Cadet 710-0859

Screw, Hex Cap, 3/8-16 X 2.50 Lg GR5

$6.99

$

In Stock, Qty 16

0

15

Cub Cadet 710-1207

Screw, Hex Cap, 5/16-18 X 3.50 Lg

$6.99

$

In Stock, only 4 left!

0

16

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X .75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

17

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 X .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-3181

Screw, Hex Cap, 1/2-13 X 1.50 Lg GR5

$6.99

$

In Stock, only 1 left!

0

19

Cub Cadet 711-0509

Insert, Spring

$60.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 711-0510

Pin, Clevis, .50 Dia X 2.19 Lg

$11.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 712-0267

Nut, Hex, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-0798

Nut, Hex, 3/8-16

$4.49

$

In Stock, Qty 12

0

23

Cub Cadet 712-0922

Nut, Hex Jam, 1/2-20
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

24

Cub Cadet 712-3017

Nut, Hex, 3/8-16

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 712-3022

Nut, Hex Center Lock, 1/2-13 GR5

$3.99

$

In Stock, Qty 9

0

26

Cub Cadet 714-0115

Pin, Cotter, 1/8 Dia X 1.0 Lg

$3.99

$

In Stock, only 2 left!

0

27

Cub Cadet 714-0145

Cotter, Hairpin

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 715-0105

Pin, Spring Roll, 3/16 Dia X 1.5 Lg

$

$

Not available

29

Cub Cadet 717-3393

Cylinder, Electric Lift

$

$

Not available

30

Cub Cadet 725-1053

Switch, Toggle Lift
(Superseded to 925-1053)

$105.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 725-1543

Fuse, 30 Amp

$4.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 732-0323

Spring, Helper

$

$

Not available

33

Cub Cadet 732-0626

Spring, Extension, .75 Dia X 5.06 Lg

$12.99

$

In Stock, only 1 left!

0

34

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

35

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet 736-0188

Washer, Flat, .76 X 1.49 X .06 Thk

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 736-0208

Washer, Flat, .51 X 1.50 X .07 Thk

$4.49

$

In Stock, Qty 9

0

38

Cub Cadet 736-0272

Washer, Flat, .510 X 1.00 X .06 Thk

$4.99

$

In Stock, Qty 20+

0

39

Cub Cadet 736-0275

Washer, Flat, 5/16

$6.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 736-0280

Washer, Flat, .390 X 1.12 X .187 Thk
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 736-0326

Washer, Flat, .510 X 1.00 X .12 Thk

$4.49

$

In Stock, only 4 left!

0

42

Cub Cadet 736-0407

Washer, Bell, .45 X 1.00 X .062 Thk

$3.99

$

In Stock, Qty 12

0

43

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 6

0

44

Cub Cadet 736-3010

Washer, Flat, .406 X .812 X .134 Thk Hdn

$4.99

$

In Stock, only 1 left!

0

45

Cub Cadet 738-0816

Bolt, Shoulder, .62 Dia X .30 Lg
(Superseded to 938-0816)

$

$

Not available

46

Cub Cadet 738-3145

Bolt, Shoulder, .75 Dia X 1.10 Lg

$

$

Not available

47

Cub Cadet 750-0289

Spacer, .510 ID X .875 OD X .275 Lg

$

$

Not available

48

Cub Cadet 756-3003

Pulley, V-Idler, 4.0 OD

$59.99

$

In Stock, only 1 left!

0

49

Cub Cadet 756-3078

Pulley, Flat Idler, 3.12 OD

$

$

Not available
