30342 - Toro 52" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 17hp (SN: 260000001 - 260999999) (2006) CARRIER FRAME ASSEMBLY Parts Diagram

52" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 17hp

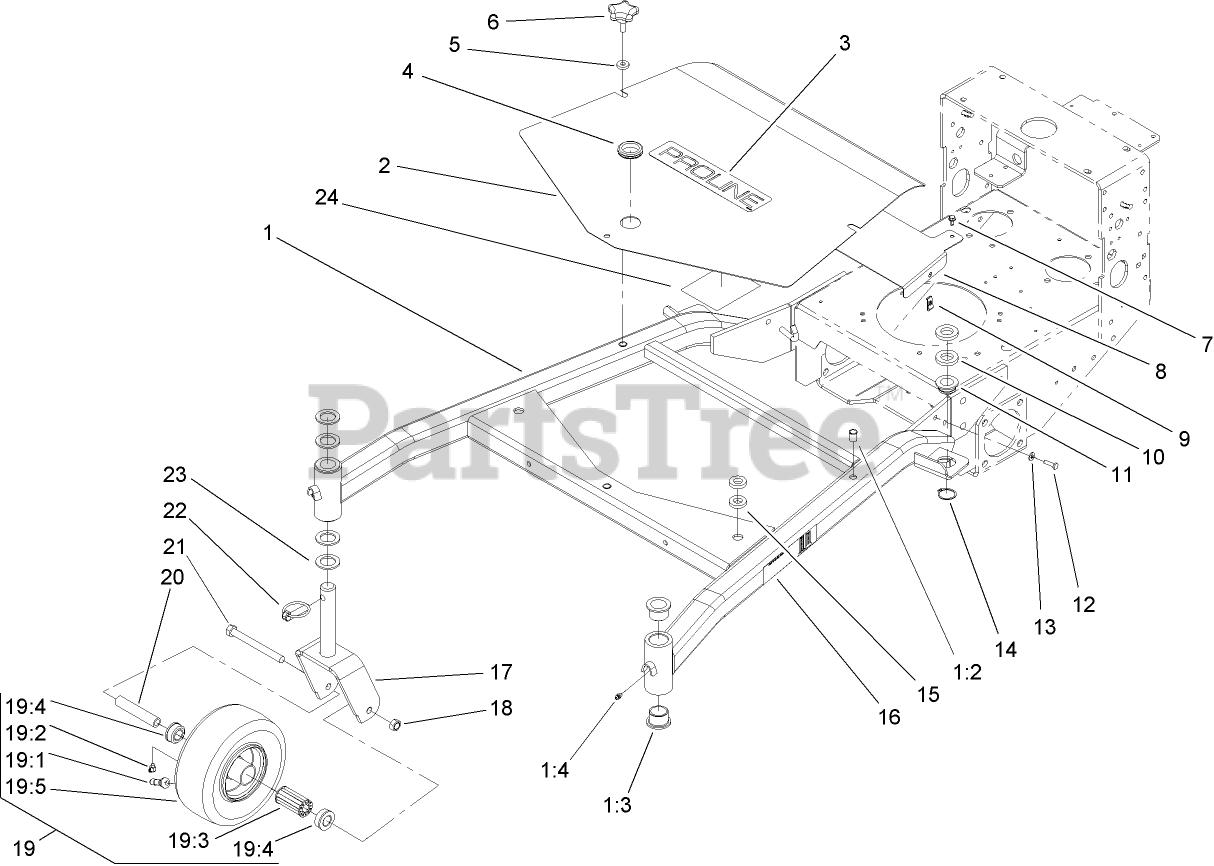

CARRIER FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 106-0708

CARRIER FRAME ASM

$2050.99

$

Usually ships in 3-6 days

0

1:2

Toro 32148-9

INSERT-NUT

$3.49

$

In Stock, only 2 left!

0

1:3

Toro 94-1291

BUSHING

$10.99

$

In Stock, Qty 11

0

1:4

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

2

Toro 106-3360-01

COVER-FRAME, CARRIER

$

$

Not available

3

Toro 106-0719

DECAL

$12.99

$

Usually ships in 3-6 days

0

4

Toro 240-3

GROMMET-RUBBER

$18.99

$

In Stock, only 1 left!

0

5

Toro 106-0565

WASHER-RUBBER

$5.99

$

Usually ships in 3-6 days

0

6

Toro 106-0887

KNOB

$8.49

$

In Stock, Qty 5

0

7

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

8

Toro 106-3361-01

SHIELD-HEAT

$

$

Not available

9

Toro 3290-199

NUT-SPEED

$5.49

$

Usually ships in 3-6 days

0

10

Toro 104-1105

SPACER-SUPPORT, DECK

$10.99

$

In Stock, only 3 left!

0

11

Toro 1-513336

BUSHING-DECK

$25.99

$

In Stock, Qty 7

0

12

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 32120-33

RING-RETAINING

$7.49

$

In Stock, only 4 left!

0

15

Toro 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

16

Toro 106-0635

DECAL-HOC

$7.49

$

Usually ships in 3-6 days

0

17

Toro 105-3159-01

FORK-CASTOR

$129.99

$

In Stock, only 1 left!

0

18

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

19

Toro 100-6451

CASTER WHEEL ASM

$158.99

$

In Stock, only 2 left!

0

19:1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 17

0

19:2

Toro 302-11

FITTING-LUBE, 45 DEG

$1.49

$

In Stock, only 2 left!

0

19:3

Toro 83-4740

BEARING

$14.99

$

In Stock, Qty 7

0

19:4

Toro 62-5580

BEARING-OUTSIDE

$6.99

$

In Stock, only 2 left!

0

19:5

Toro 100-6452

TIRE-TUBELESS

$71.99

$

In Stock, only 2 left!

0

20

Toro 100-6453

BUSHING-SPANNER

$26.99

$

In Stock, only 2 left!

0

21

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

22

Toro 283-71

PIN-LYNCH

$5.99

$

In Stock, Qty 5

0

23

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

24

Toro 106-5505

DECAL-SERVICE, GEAR (TBAR)

$

$

Not available

24

Toro 106-5503

DECAL-SERVICE, HYDRO (TBAR)

$

$

Not available

24

Toro 106-5511

DECAL-SERVICE, GEAR (PISTOL GRIP)

$

$

Not available

24

Toro 106-5513

DECAL-SERVICE, HYDRO (PISTOL GRIP)

$

$

Not available
