30342 - Toro 52" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 17hp (SN: 240000001 - 240999999) (2004) SPINDLE, PULLEY AND BELT ASSEMBLY Parts Diagram

52" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 17hp

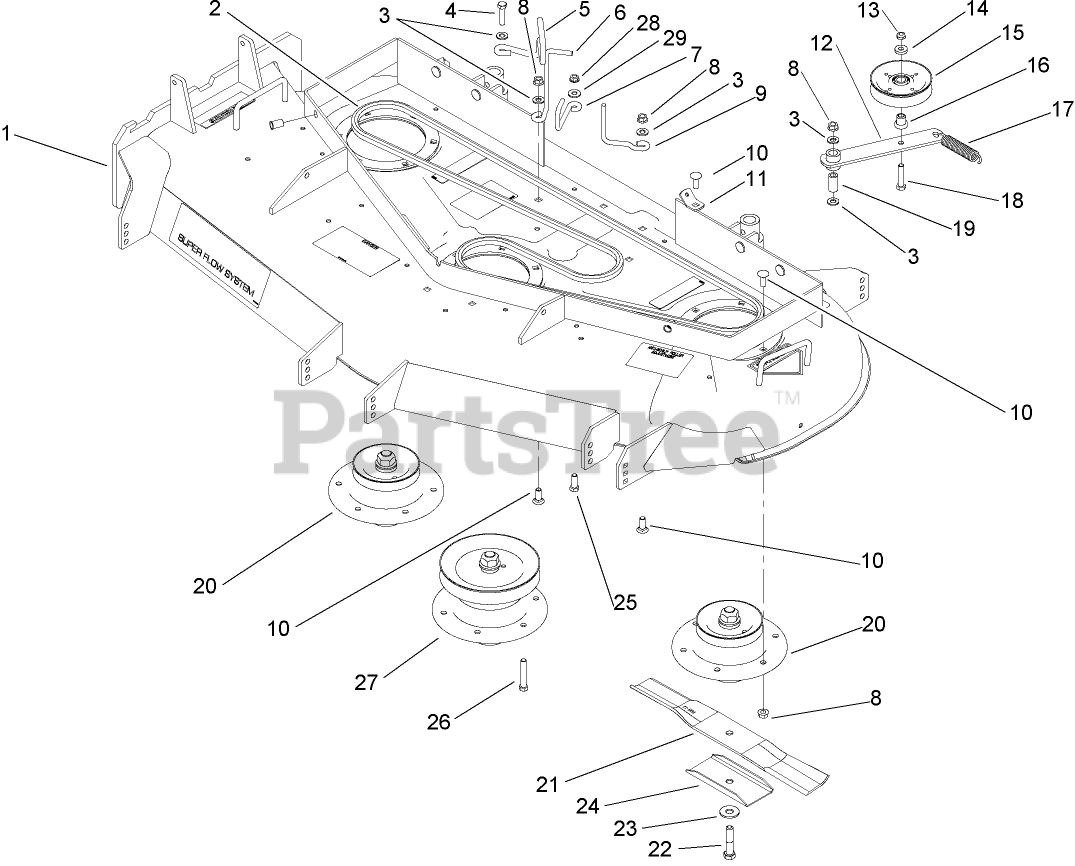

SPINDLE, PULLEY AND BELT ASSEMBLY Parts Diagram

  • Title
1

Toro 106-0619

DECK ASM

$4326.99

$

Usually ships in 3-6 days

0

2

Toro 104-6397

V-BELT

$268.99

$

In Stock, only 1 left!

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 105-0850

GUIDE-BELT

$38.99

$

Usually ships in 3-6 days

0

6

Toro 98-5980

GUIDE-BELT

$83.99

$

In Stock, only 1 left!

0

7

Toro 104-6396

GUIDE-BELT

$

$

Not available

8

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

9

Toro 52-4780

ROD-BELT

$14.99

$

In Stock, only 2 left!

0

10

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

11

Toro 104-6374

PLATE-SPRING

$20.99

$

Usually ships in 3-6 days

0

12

Toro 104-6375

IDLER ARM ASM

$109.99

$

Usually ships in 3-6 days

0

13

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

14

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

15

Toro 65-5940

PULLEY-IDLER

$43.99

$

In Stock, Qty 7

0

16

Toro 104-6379

BUSHING-PULLEY

$

$

Not available

17

Toro 51-3650

SPRING-EXTENSION

$23.99

$

In Stock, Qty 5

0

18

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 9

0

19

Toro 51-3640

SLEEVE

$16.99

$

In Stock, only 1 left!

0

20

Toro 106-0787

SPINDLE HOUSING ASM

$592.99

$

Usually ships in 3-6 days

0

21

Toro 27-0990

Blade
(Superseded to 27-0990-03)

$23.99

$

In Stock, only 3 left!

0

22

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, Qty 6

0

23

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 92-9820

STIFFENER-BLADE

$62.99

$

Usually ships in 3-6 days

0

25

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

26

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

27

Toro 106-0785

SPINDLE HOUSING ASM

$

$

Not available

28

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

29

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
