30340 - Toro 44" ProLine Walk-Behind Mower, Hydro Drive, 17hp (SN: 210000001 - 210999999) (2001) CARRIER FRAME ASSEMBLY Parts Diagram

44" ProLine Walk-Behind Mower, Hydro Drive, 17hp

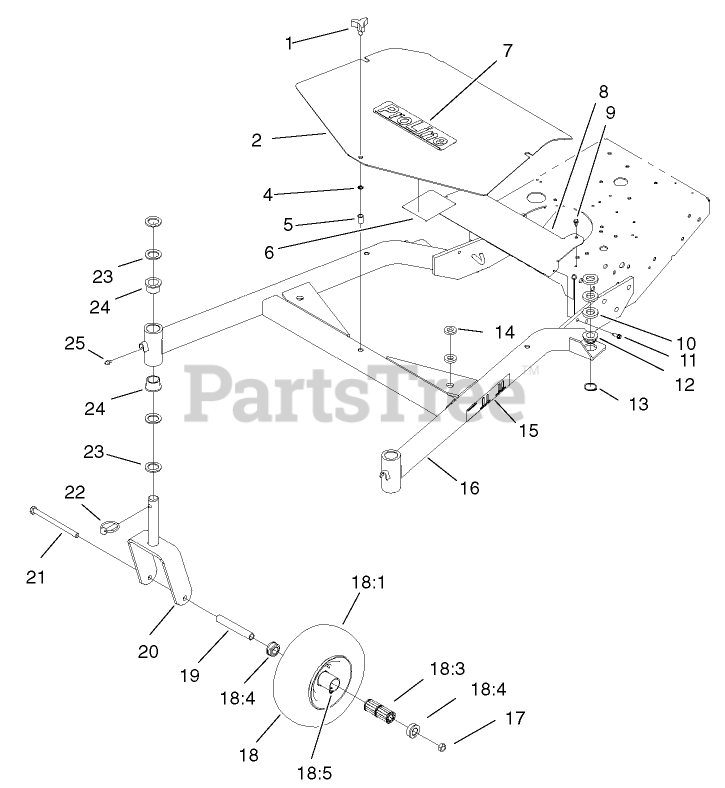

CARRIER FRAME ASSEMBLY Parts Diagram

  • Title
1

$20.99

$

In Stock, only 2 left!

0

2

Toro 104-8153-01

COVER-FRAME, CARRIER

$

$

Not available

4

Toro 32151-72

RING-RETAINING

$1.99

$

Usually ships in 3-6 days

0

5

Toro 32148-9

INSERT-NUT

$3.49

$

In Stock, only 2 left!

0

6

Toro 105-4142

DECAL-SERVICE, GEAR

$

$

Not available

7

Toro 74-2080

DECAL-PROLINE

$

$

Not available

8

Toro 105-0845-01

SHIELD-HEAT

$

$

Not available

9

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

10

Toro 104-1105

SPACER-SUPPORT, DECK

$10.99

$

In Stock, only 3 left!

0

11

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

12

Toro 1-513336

BUSHING-DECK

$25.99

$

In Stock, Qty 20+

0

13

Toro 32120-33

RING-RETAINING

$7.49

$

In Stock, Qty 20+

0

14

Toro 105-0842

SPACER

$18.99

$

Usually ships in 3-6 days

0

15

Toro 104-8171

DECAL-HOC

$

$

Not available

16

Toro 104-1109-01

CARRIER FRAME ASM

$2218.99

$

Usually ships in 3-6 days

0

17

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

18

Toro 104-1170

CASTOR WHEEL ASM

$208.99

$

Usually ships in 3-6 days

0

18:1

Toro 104-1169

TIRE AND TUBE ASM

$104.99

$

Usually ships in 3-6 days

0

18:3

Toro 62-5570

BEARING-ROLLER

$20.99

$

In Stock, only 2 left!

0

18:4

Toro 62-5580

BEARING-OUTSIDE

$7.49

$

In Stock, Qty 12

0

18:5

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0

19

Toro 104-1189

BUSHING-SPANNER

$36.99

$

Usually ships in 3-6 days

0

20

Toro 104-1183-01

CASTOR FORK ASM

$231.99

$

Usually ships in 3-6 days

0

21

Toro 325-33

SCREW-HH

$14.99

$

In Stock, only 4 left!

0

22

Toro 283-71

PIN-LYNCH

$5.99

$

In Stock, Qty 5

0

23

Toro 3-6781

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

24

Toro 94-1291

BUSHING

$11.99

$

In Stock, Qty 14

0

25

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0
