30340 - Toro 44" ProLine Walk-Behind Mower, Hydro Drive, 17hp (SN: 210000001 - 210999999) (2001) BATTERY ASSEMBLY Parts Diagram

44" ProLine Walk-Behind Mower, Hydro Drive, 17hp

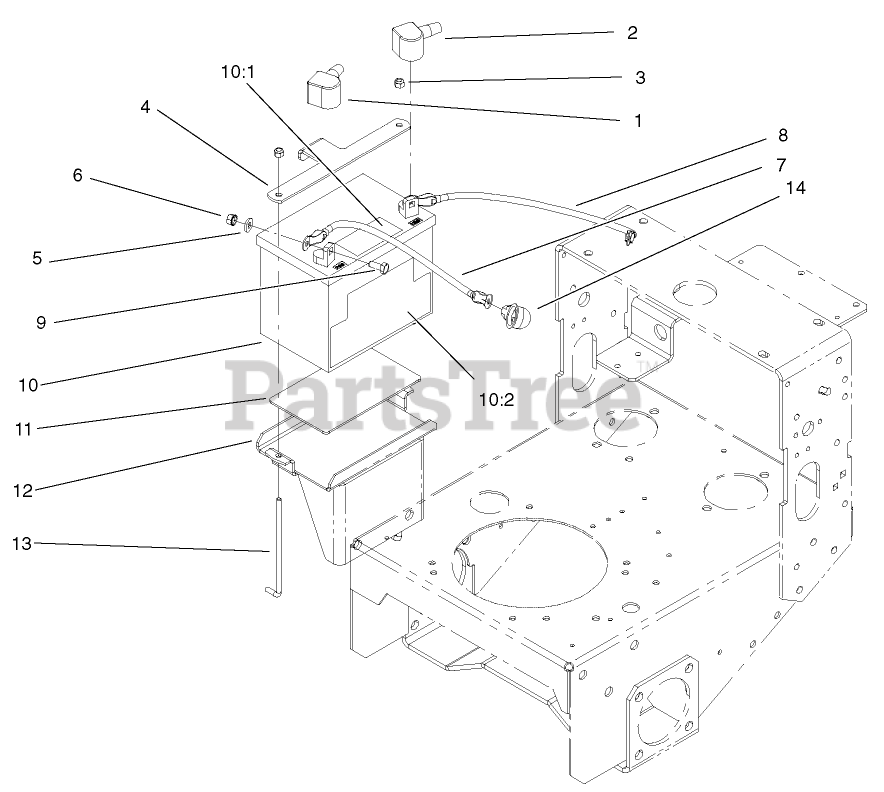

BATTERY ASSEMBLY Parts Diagram

  • Title

1

Toro 77-0981

BOOT-TERMINAL, RED

$17.99

$

Usually ships in 3-6 days

0

2

Toro 77-0980

BOOT-TERMINAL, BLACK

$

$

Not available

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

4

Toro 104-8568-03

PLATE-HOLD DOWN, BATTERY

$69.99

$

Usually ships in 3-6 days

0

5

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

7

Toro 105-0833

CABLE-BATTERY, BLACK

$

$

Not available

8

Toro 100-6457

CABLE-BATTERY, RED

$

$

Not available

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

10

Toro 104-8162

BATTERY-DRY

$

$

Not available

10:1

Toro 104-4163

Decal-Battery

$

$

Currently unavailable

10:2

Toro 104-4164

Decal-Battery

$

$

Currently unavailable

11

Toro 62-4300

PAD-SKID, ANTI

$19.99

$

Usually ships in 3-6 days

0

12

Toro 105-0804-01

BATTERY PLATE ASM
(Superseded to 105-3150-01)

$118.99

$

Usually ships in 3-6 days

0

13

Toro 104-8567

HOLDOWN-BATTERY

$28.99

$

Usually ships in 3-6 days

0

14

Toro 93-3190

BOOT-INSULATOR, TERMINAL

$7.99

$

Usually ships in 3-6 days

0
