30339 - Toro 52" ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 210000001 - 210999999) (2001) CONTROL PANEL ASSEMBLY Parts Diagram

52" ProLine Walk-Behind Mower, Hydro Drive, 15hp

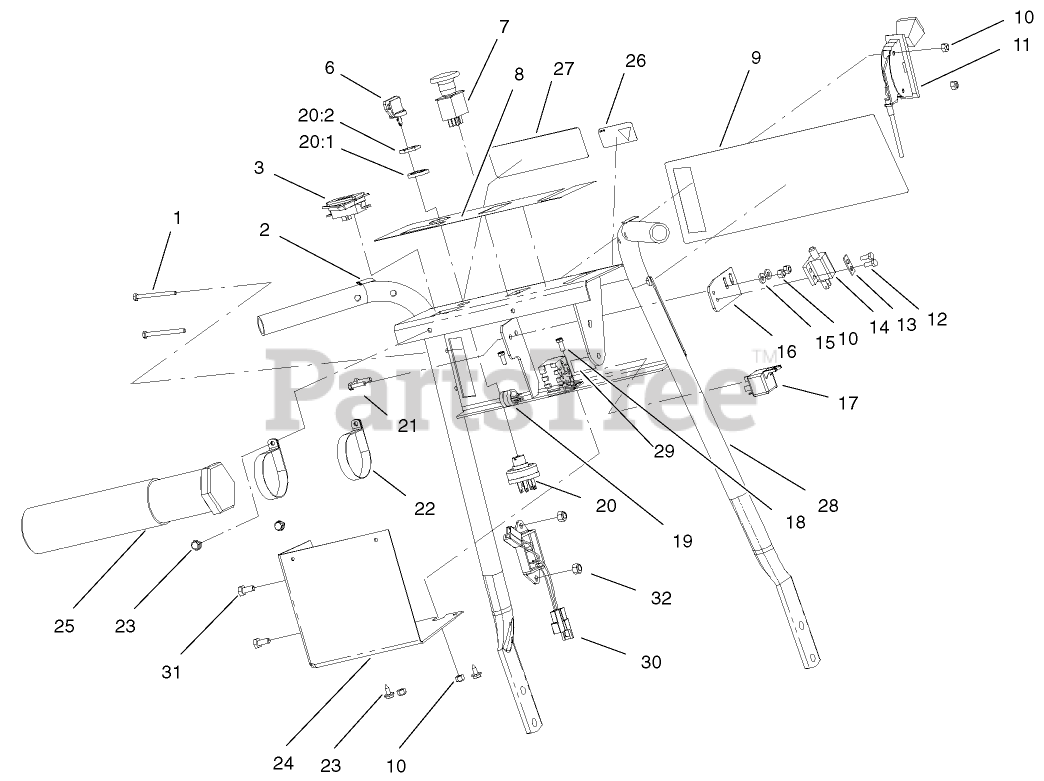

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 32105-14

SCREW-SHH

$2.99

$

Usually ships in 3-6 days

0

2

Toro 105-4110

DECAL-LOCK, NEUTRAL
(Superseded to 130-8370)

$7.99

$

Usually ships in 3-6 days

0

3

Toro 104-8143

HOURMETER

$269.99

$

Usually ships in 3-6 days

0

6

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

7

Toro 95-7489

SWITCH-PTO

$34.99

$

In Stock, only 1 left!

0

8

Toro 105-4106

Decal-Warning

$

$

Not available

9

Toro 105-4108

DECAL-PROLINE

$

$

Not available

10

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 105-4113

CONTROL-THROTTLE

$121.99

$

Usually ships in 3-6 days

0

12

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 8

0

13

Toro 82-4570

PLATE-SWITCH

$14.99

$

Usually ships in 3-6 days

0

14

Toro 95-1653

SWITCH-POLE, SINGLE

$19.99

$

Usually ships in 3-6 days

0

15

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 105-4137-03

PLATE-MOUNTING, SWITCH

$

$

Not available

17

Toro 105-4145

RELAY

$47.99

$

Usually ships in 3-6 days

0

18

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

19

Toro 2412-134

CLAMP-R

$6.49

$

Usually ships in 3-6 days

0

20

Toro 29-5560

SWITCH-ON / OFF

$17.99

$

In Stock, only 2 left!

0

20:1

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

20:2

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

21

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

22

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

23

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

24

Toro 105-4112-03

BRACKET-COVER

$

$

Not available

25

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

26

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

27

Toro 82-4590

DECAL-WARNING

$

$

Not available

28

Toro 105-4139

Handle ASM

$

$

Not available

29

Toro 105-4146

DECAL-RELAY, 24 VOLT

$

$

Not available

30

Toro 105-4608

Module-Filter

$32.99

$

Usually ships in 3-6 days

0

31

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
