30338 - Toro 44" ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 210000001 - 210999999) (2001) UPPER HANDLE ASSEMBLY Parts Diagram

44" ProLine Walk-Behind Mower, Hydro Drive, 15hp

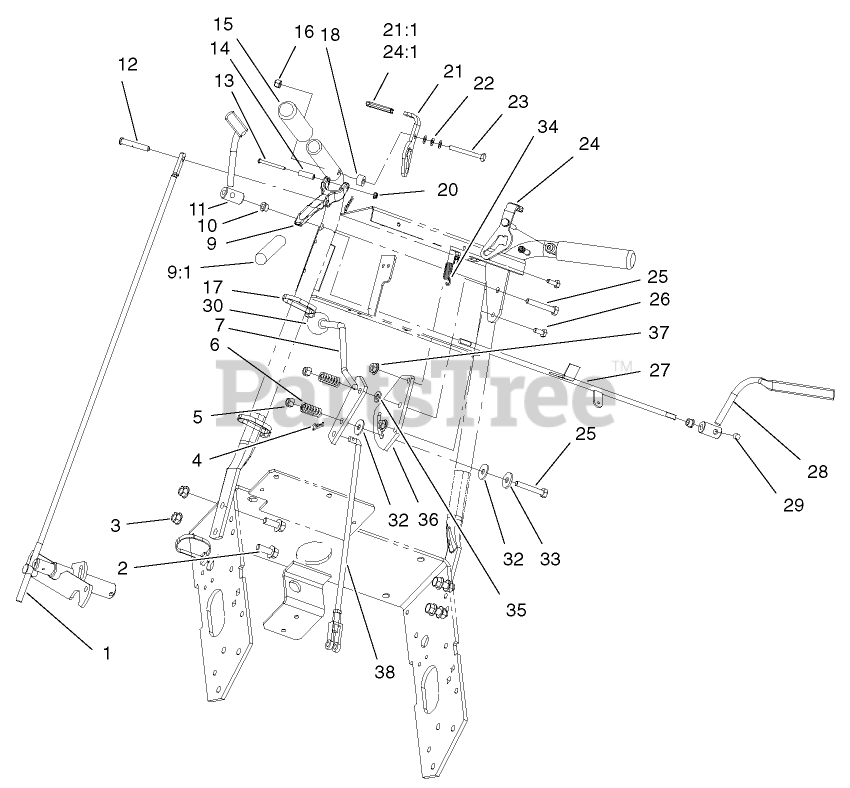

UPPER HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 1-413219

ROD-LEVER, DRIVE

$27.99

$

Usually ships in 3-6 days

0

2

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

3

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

4

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

7

Toro 1-602733

Lever-Shift

$

$

Not available

9

Toro 1-302006

DRIVE LEVER ASM

$55.99

$

In Stock, Qty 5

0

9:1

Toro 1-303021

GRIP-LEVER, DRIVE

$1.49

$

In Stock, Qty 17

0

10

Toro 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 10

0

11

Toro 1-412183-03

LEVER-LH

$78.99

$

In Stock, Qty 5

0

12

Toro 1-808286

PIN-CLEVIS

$5.49

$

In Stock, Qty 20+

0

13

Toro 1-808250

PIN-LEVER, DRIVE

$2.99

$

In Stock, Qty 20+

0

14

Toro 1-806340

PIN-ROLL

$5.49

$

In Stock, only 2 left!

0

15

Toro 104-9838

GRIP-FOAM

$5.99

$

In Stock, Qty 16

0

16

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

17

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

18

Toro 1-323549

SPACER

$13.99

$

Usually ships in 3-6 days

0

20

$1.49

$

In Stock, Qty 20+

0

21

Toro 104-6261

Thumb Latch ASM, LH

$

$

Not available

21:1

Toro 1-303019

GRIP-LATCH

$2.99

$

In Stock, Qty 5

0

22

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

23

Toro 321-18

SCREW-HH

$2.49

$

In Stock, only 3 left!

0

24

Toro 104-6262

Thumb Latch ASM, RH

$

$

Not available

24:1

Toro 1-303019

GRIP-LATCH

$2.99

$

In Stock, Qty 5

0

25

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

26

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 104-9803

ROD ASM

$149.99

$

Usually ships in 3-6 days

0

28

Toro 1-412185-03

LEVER-RH

$74.99

$

In Stock, only 4 left!

0

29

Toro 1-803322

SCREW-SET

$1.49

$

In Stock, Qty 5

0

30

$13.99

$

In Stock, only 4 left!

0

32

Toro 1-323244

Washer-Friction
(Superseded to 93-1633)

$2.99

$

In Stock, Qty 14

0

33

Toro 1-603716

Washer-Friction

$5.49

$

In Stock, only 2 left!

0

34

Toro 1-303363

SPRING-EXTENSION

$6.49

$

In Stock, only 1 left!

0

35

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

36

Toro 1-603730

PLATE-LEVER, SHIFTER

$37.99

$

Usually ships in 3-6 days

0

37

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

38

Toro 105-4103

ROD-SPEED CONTROL

$

$

Not available
