30338 - Toro 44" ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 210000001 - 210999999) (2001) SPINDLE HOUSING ASSEMBLY NO. 104-6316 Parts Diagram

44" ProLine Walk-Behind Mower, Hydro Drive, 15hp

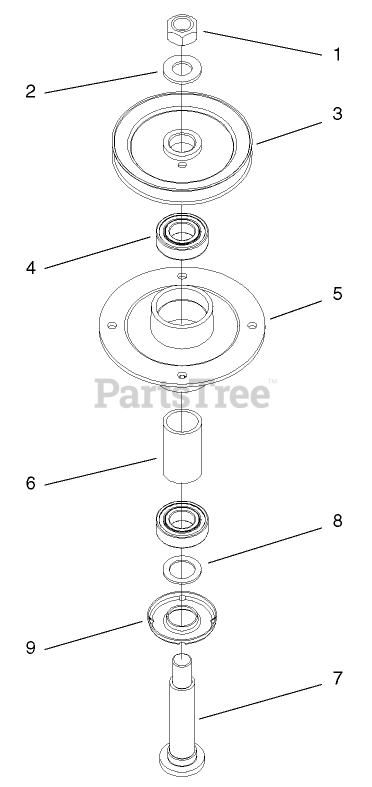

SPINDLE HOUSING ASSEMBLY NO. 104-6316 Parts Diagram

  • Title
1

Toro 3219-7

NUT-HEX

$1.99

$

In Stock, Qty 9

0

2

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 6

0

3

Toro 104-1181

PULLEY ASM

$87.99

$

Usually ships in 3-6 days

0

4

Toro 104-6325

BEARING-BALL
(Superseded to 116-0720)

$22.99

$

In Stock, Qty 10

0

5

Toro 67-7590

HOUSING-SPINDLE

$331.99

$

Usually ships in 3-6 days

0

6

Toro 104-6312

SPACER-BEARING
(Superseded to 106-0794)

$29.99

$

Usually ships in 3-6 days

0

7

Toro 104-8193

SHAFT-SPINDLE
(Superseded to 106-0797)

$270.99

$

Usually ships in 3-6 days

0

8

Toro 88-7540

WASHER-BACKUP

$1.99

$

In Stock, Qty 5

0

9

Toro 79-1920

SHIELD-BEARING

$14.99

$

In Stock, only 4 left!

0
