30338 - Toro 44" ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 210000001 - 210999999) (2001) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

44" ProLine Walk-Behind Mower, Hydro Drive, 15hp

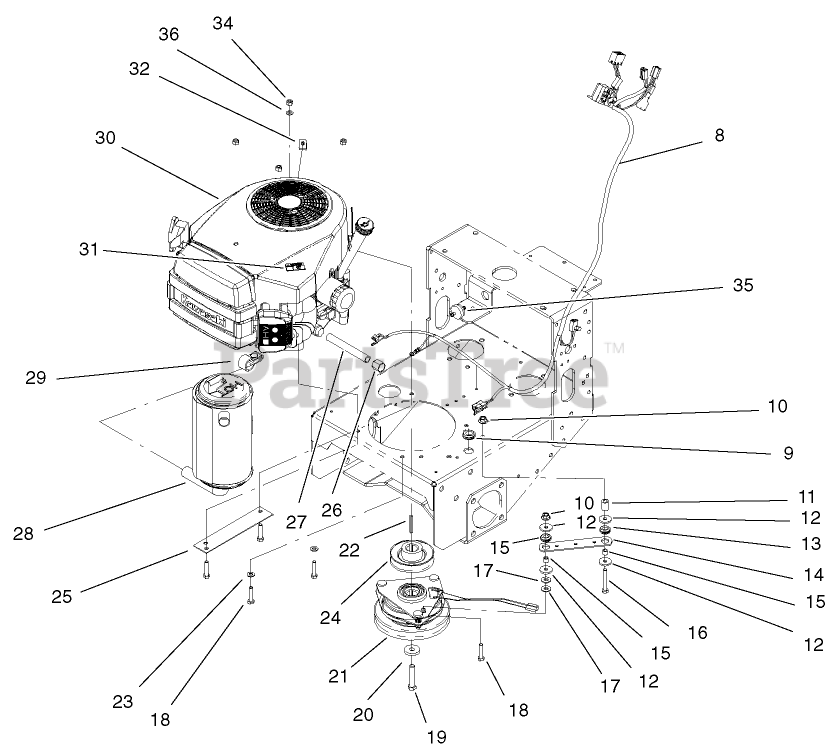

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title

8

Toro 104-9822

Harness-Wire

$

$

Not available

9

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

10

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 104-6373

TUBE-RETAINER

$15.99

$

Usually ships in 3-6 days

0

12

Toro 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

13

Toro 1-633630

GROMMET

$5.99

$

In Stock, Qty 8

0

14

Toro 1-633543

STRAP-CLUTCH/BRAKE

$

$

Not available

15

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

16

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

17

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 3212-9

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

20

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

21

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

In Stock, only 1 left!

0

22

Toro 608006

KEY-SQUARE

$5.49

$

Usually ships in 3-6 days

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Toro 44-5940

Pulley

$151.99

$

Usually ships in 3-6 days

0

25

Toro 94-5847-01

COVER-PULLEY

$

$

Not available

26

Toro 288-10

CAP-PIPE

$10.99

$

Usually ships in 3-6 days

0

27

Toro 289-19

NIPPLE

$

$

Not available

28

Toro 100-6467

MUFFLER

$

$

Not available

29

Toro 100-6468

Clamp-Muffler

$

$

Not available

30

Engine-Kawasaki, Fh451v-As08

Note: Not serviced

$

$

Not available

31

Toro 63-8440

DECAL-SURFACE, HOT

$

$

Not available

32

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

34

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

35

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, only 4 left!

0

36

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0
