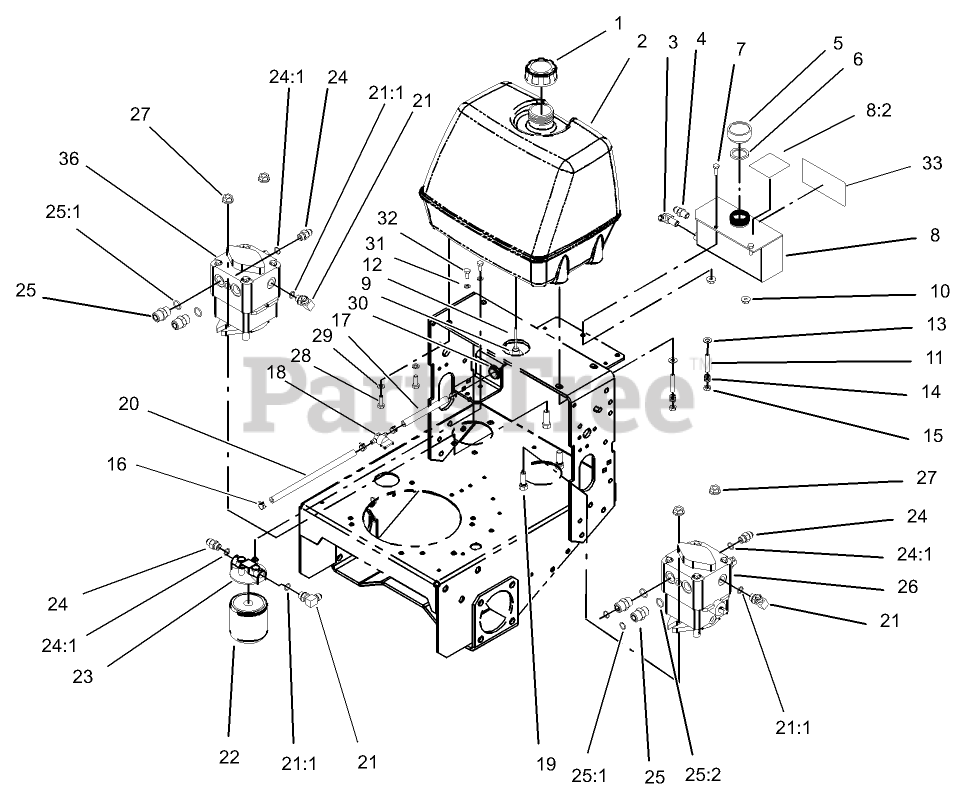

30335 - Toro 36" ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 210000001 - 210999999) (2001) FUEL TANK, HYDRAULIC TANK, PUMP AND FILTER ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, Hydro Drive, 15hp

FUEL TANK, HYDRAULIC TANK, PUMP AND FILTER ASSEMBLY Parts Diagram

  • Title

1

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

2

Toro 1-323551

TANK-FUEL
(Superseded to 106-0730)

$

$

Not available

3

Toro 1-603988

FITTING-ELBOW

$20.99

$

Usually ships in 3-6 days

0

4

Toro 1-513510

FITTING-STRAIGHT

$11.99

$

Usually ships in 3-6 days

0

5

Toro 1-513167

CAP

$26.99

$

In Stock, Qty 5

0

6

Toro 1-523103

GASKET-CAP, TANK

$6.49

$

In Stock, Qty 7

0

7

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 99-4625

HYDRAULIC TANK ASM

$

$

Not available

8:2

Toro 1-523552

DECAL-TANK, HYD

$1.99

$

In Stock, Qty 15

0

9

Toro 1-513645

BUSHING-VALVE, FUEL
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

10

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

11

Toro 104-8121

STUD-THREADED

$16.99

$

Usually ships in 3-6 days

0

12

Toro 1-543277

ELBOW-TANK, FUEL

$11.99

$

In Stock, Qty 10

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

Usually ships in 3-6 days

0

15

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

16

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

17

Toro 47-2966

HOSE-FUEL
(Superseded to 109-0678)

$5.49

$

Usually ships in 3-6 days

0

18

Toro 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 14

0

19

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

20

Toro 47-2982

HOSE-FUEL
(Superseded to 110-4894)

$8.49

$

In Stock, only 1 left!

0

21

Toro 105-0858

FITTING-90 DEG
(Superseded to 103-1802)

$22.99

$

In Stock, only 1 left!

0

21:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

22

Toro 1-633750

FILTER-OIL, HYD

$26.99

$

In Stock, Qty 17

0

22

Toro 1-633752

FILTER-OIL, HYD (WINTER)

$34.99

$

In Stock, only 1 left!

0

23

Toro 104-7836

HEAD-FILTER

$18.99

$

In Stock, only 3 left!

0

24

Toro 353-384

FITTING-STRAIGHT

$6.99

$

Usually ships in 3-6 days

0

24:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

25

Toro 340-4

FITTING-STRAIGHT

$11.99

$

In Stock, only 3 left!

0

25:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

25:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

26

Toro 104-1167

PUMP-HYDRAULIC

$

$

Not available

27

Toro 32128-42

NUT-HF

$1.49

$

In Stock, only 3 left!

0

28

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

30

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

31

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

32

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

33

Toro 104-8172

DECAL-MOBIL 1

$

$

Not available

36

Toro 105-4101

PUMP-HYDRAULIC

$

$

Not available
