30335 - Toro 36" ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 210000001 - 210999999) (2001) BLOWER HOUSING AND BAFFLE ASSEMBLY-KOHLER MODEL CV15T-41604 Parts Diagram
36" ProLine Walk-Behind Mower, Hydro Drive, 15hp

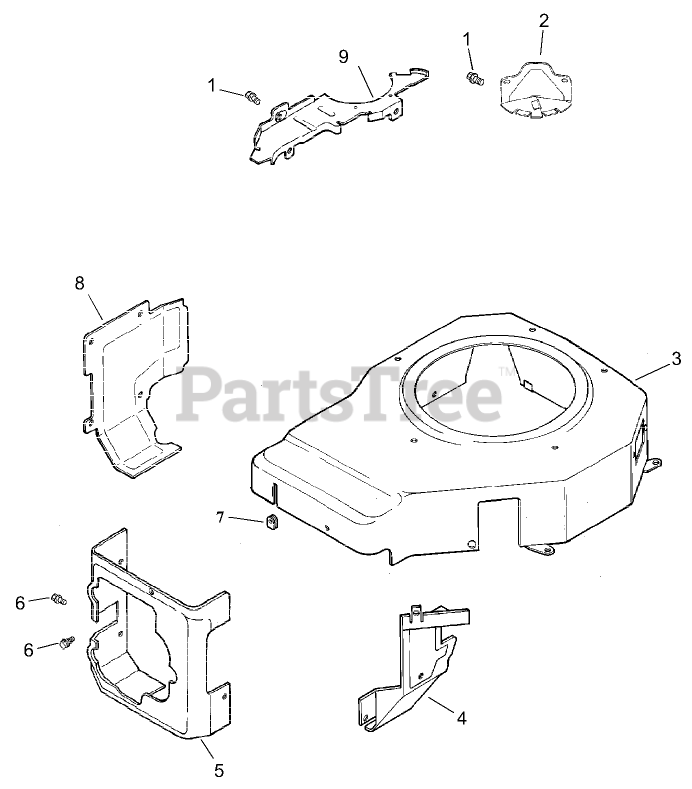

BLOWER HOUSING AND BAFFLE ASSEMBLY-KOHLER MODEL CV15T-41604 Parts Diagram
Kohler M-550010-S
Screw-HF (M5x0.8x10)
$3.99
$
In Stock, only 1 left!
Kohler 12 096 29-S
Cover-Starter
$12.99
$
Usually ships in 2-5 days
Kohler 12 027 68-S
Housing-Blower
$220.99
$
Usually ships in 2-5 days
Kohler 12 063 10-S
Baffle-Side, Intake
$47.99
$
Usually ships in 2-5 days
Kohler 12 063 08-S
Baffle-Head, Cylinder
$48.99
$
Usually ships in 2-5 days
Kohler M-545010-S
SCREW-HHFTF (M5X.80X10)
$4.49
$
In Stock, only 3 left!
Kohler 12 313 03-S
Grommet-Spark Plug
$
$
Not available
Kohler 12 063 19-S
Baffle-Cylinder
$
$
Not available
Kohler 12 146 07-S
Plate-Housing, Blower
$9.49
$
Usually ships in 2-5 days
$
$
Not available
