30334 - Toro 52" ProLine Walk-Behind Mower, Gear Drive, 17hp (SN: 210000001 - 210999999) (2001) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

52" ProLine Walk-Behind Mower, Gear Drive, 17hp

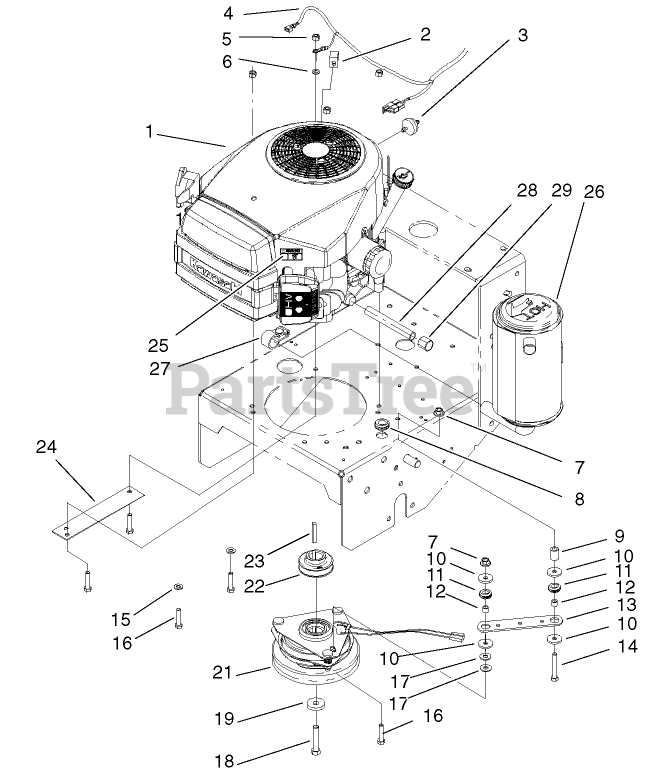

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Engine-Kawasaki, Fh500v-As25

Note: Not serviced

$

$

Not available

2

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

3

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, only 4 left!

0

4

Toro 104-9825

HARNESS-WIRE

$

$

Not available

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

7

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

9

Toro 104-6373

TUBE-RETAINER

$15.99

$

Usually ships in 3-6 days

0

10

Toro 1-613235

WASHER

$1.99

$

In Stock, Qty 5

0

11

Toro 1-633630

GROMMET

$5.99

$

In Stock, Qty 8

0

12

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

13

Toro 1-633543

STRAP-CLUTCH/BRAKE

$

$

Not available

14

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 3212-9

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

19

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

21

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

In Stock, only 1 left!

0

22

Toro 105-0827

PULLEY-DRIVE
(Superseded to 107-4112)

$137.99

$

Usually ships in 3-6 days

0

23

Toro 608006

KEY-SQUARE

$5.49

$

Usually ships in 3-6 days

0

24

Toro 94-5847-01

COVER-PULLEY

$

$

Not available

25

Toro 63-8440

DECAL-SURFACE, HOT

$

$

Not available

26

Toro 100-6467

MUFFLER

$

$

Not available

27

Toro 100-6468

Clamp-Muffler

$

$

Not available

28

Toro 289-19

NIPPLE

$

$

Not available

29

Toro 288-10

CAP-PIPE

$10.99

$

Usually ships in 3-6 days

0
