30334 - Toro 52" ProLine Walk-Behind Mower, Gear Drive, 17hp (SN: 210000001 - 210999999) (2001) CARBURETOR ASSEMBLY KAWASAKI FH500V-AS25 Parts Diagram

52" ProLine Walk-Behind Mower, Gear Drive, 17hp

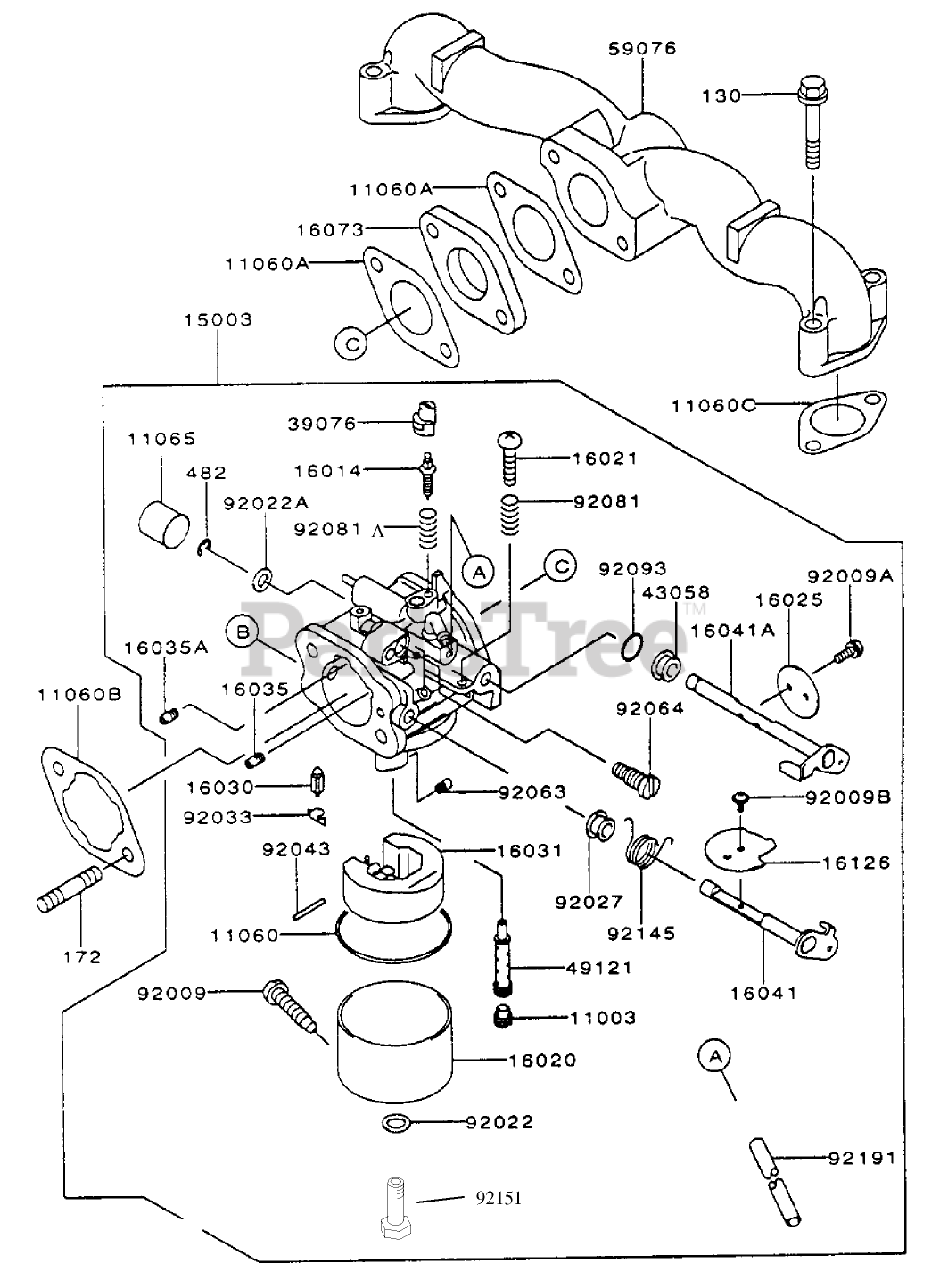

CARBURETOR ASSEMBLY KAWASAKI FH500V-AS25 Parts Diagram

  • Title

11003

Kawasaki 11003-2105

Seat-Valve

$13.99

$

In Stock, only 4 left!

0

11060

Kawasaki 11060-2406

Gasket, Chamber

$4.99

$

Usually ships in 2-5 days

0

11060A

Kawasaki 11060-7003

Gasket-Insulator
(Superseded to 11061-7004)

$2.49

$

In Stock, only 1 left!

0

11060B

Kawasaki 11060-7004

Gsket-Air Filter
(Superseded to 11061-7018)

$3.99

$

In Stock, Qty 5

0

11060C

Kawasaki 11060-7005

Gasket, Manifold
(Superseded to 11061-7019)

$2.49

$

In Stock, Qty 17

0

11065

Kawasaki 11065-2061

Cap

$1.49

$

In Stock, only 1 left!

0

15003

Toro 15003-2698

Carburetor-Assy

$

$

Currently unavailable

16014

Kawasaki 16014-2080

Screw-Pilot Air

$

$

Not available

16020

Kawasaki 16020-2141

Chamber-Float

$50.99

$

In Stock, only 1 left!

0

16021

Kawasaki 16021-2060

Screw-Throttlestop

$5.99

$

Usually ships in 2-5 days

0

16025

Kawasaki 16025-2193

Valve-Throttle, #130

$

$

Not available

16030

Kawasaki 16030-2067

Valve-Float
(Superseded to 16030-2068)

$23.99

$

In Stock, only 1 left!

0

16031

Kawasaki 16031-2066

Float

$29.99

$

In Stock, only 1 left!

0

16035

Kawasaki 16035-2060

Jet-Air, #1.7

$9.49

$

Usually ships in 2-5 days

0

16035A

Toro 16035-2061

Jet-Air, #1.2

$

$

Currently unavailable

16041

Toro 16041-2252

Shaft-Carburetor, Choke

$

$

Currently unavailable

16041A

Kawasaki 16041-2253

Shaft-Carburetor, Throttle

$

$

Not available

16073

Kawasaki 16073-7001

Insulator
(Superseded to 16073-7007)

$

$

Not available

16126

Toro 16126-2219

Valve

$

$

Currently unavailable

39076

Kawasaki 39076-2053

Limiter

$6.99

$

In Stock, only 1 left!

0

43058

Kawasaki 43058-3716

Ring

$3.99

$

Usually ships in 2-5 days

0

49121

Kawasaki 49121-2222

Nozzle-Main

$32.99

$

Usually ships in 2-5 days

0

59076

Kawasaki 59076-7001

Manifold-Intake
(Superseded to 59076-7017)

$

$

Not available

92009

Kawasaki 92009-2015

Screw
(Superseded to 315470-6133A)

$5.49

$

Usually ships in 2-5 days

0

92009A

Kawasaki 92009-2024

Screw
(Superseded to 92009-2378)

$1.99

$

Usually ships in 2-5 days

0

92009B

Kawasaki 92009-2081

Screw
(Superseded to 92009-2026)

$1.99

$

In Stock, only 1 left!

0

92022

Kawasaki 92022-2231

Washer

$1.99

$

In Stock, only 4 left!

0

92022A

Kawasaki 92022-2239

Washer

$1.49

$

Usually ships in 2-5 days

0

92027

Kawasaki 92027-2025

Collar

$3.99

$

Usually ships in 2-5 days

0

92033

Kawasaki 92033-2067

Ring-Snap

$5.49

$

In Stock, only 3 left!

0

92043

Kawasaki 92043-2226

Pin

$7.49

$

In Stock, only 1 left!

0

92063

Kawasaki 92063-2358

Jet-Main

$10.99

$

Usually ships in 2-5 days

0

92064

Kawasaki 92064-2125

Jet-Pilot

$11.99

$

In Stock, only 3 left!

0

92081

Kawasaki 92081-2009

Spring

$3.49

$

In Stock, only 3 left!

0

92081A

Kawasaki 92081-2256

Spring

$7.99

$

In Stock, only 1 left!

0

92093

Kawasaki 92093-2002

Seal

$1.99

$

In Stock, Qty 6

0

92145

Kawasaki 92145-2061

Spring

$2.99

$

In Stock, only 2 left!

0

92151

Kawasaki 92151-2092

Bolt

$13.99

$

Usually ships in 2-5 days

0

92191

Toro 92191-7008

Tube

$

$

Currently unavailable

130

Kawasaki 130B0635

Bolt-Flanged (6X35)
(Superseded to 130AA0635)

$1.99

$

In Stock, Qty 16

0

172

Kawasaki 172G0685

Bolt-Stud
(Superseded to 172BA0685)

$2.99

$

Usually ships in 2-5 days

0

482

Kawasaki 482L4000

Circlip-Type-E
(Superseded to 482EA4000)

$0.99

$

In Stock, Qty 10

0
