30332 - Toro 44" ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 210000001 - 210999999) (2001) LOWER CONTROL ASSEMBLY Parts Diagram

44" ProLine Walk-Behind Mower, Gear Drive, 15hp

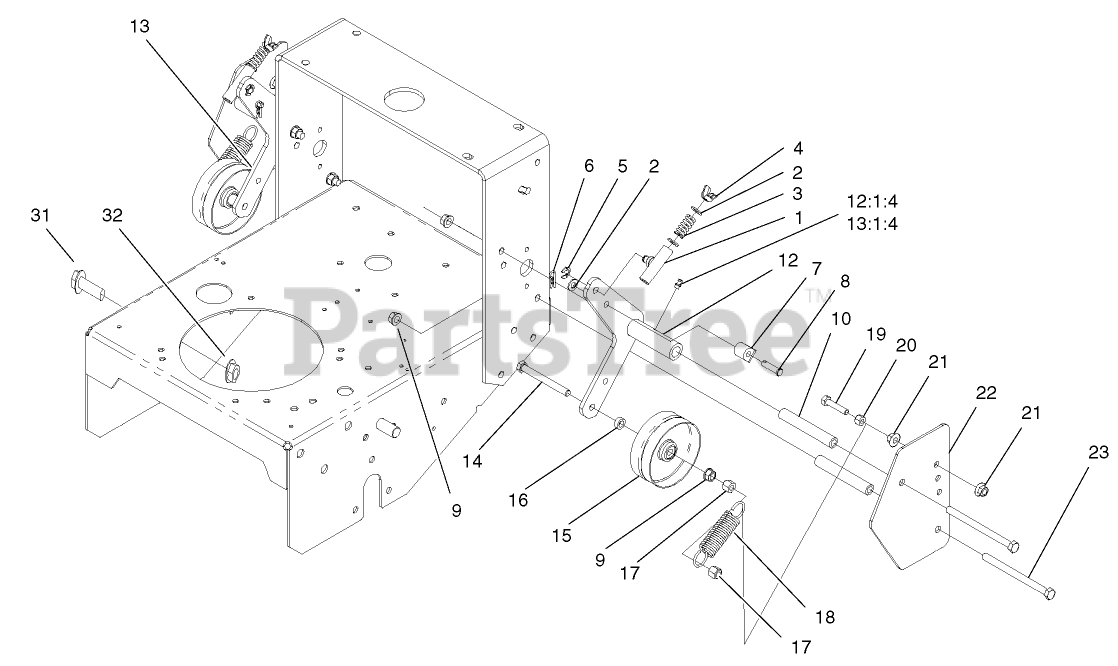

LOWER CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 1-322125

SWIVEL-BRAKE
(Superseded to 110-5866)

$25.99

$

Usually ships in 3-6 days

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

4

Toro 32103-23

NUT-WING, LOCK

$

$

Not available

5

Toro 32151-47

RING-RETAINING

$2.99

$

In Stock, only 3 left!

0

6

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

7

Toro 74-0521

FITTING-ROD

$14.99

$

Usually ships in 3-6 days

0

8

Toro 283-6

PIN-CLEVIS

$1.99

$

In Stock, Qty 11

0

9

Toro 32128-40

NUT-FLANGE

$7.49

$

Usually ships in 3-6 days

0

10

Toro 1-323283-01

SPACER-SHIELD
(Superseded to 1-323283)

$9.49

$

In Stock, Qty 9

0

11

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

12

Toro 104-9846-03

ARM-IDLER ASM, RH

$

$

Not available

13

Toro 104-9845-03

ARM-IDLER ASM, LH

$

$

Not available

14

Toro 323-57

Screw-HH
(Superseded to 61-0790)

$3.49

$

Usually ships in 3-6 days

0

15

Toro 1-323277

IDLER-WHEEL, DRIVE

$31.99

$

In Stock, only 2 left!

0

16

Toro 105-4102

Spacer-Pulley

$

$

Not available

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

18

Toro 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 3 left!

0

19

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

22

Toro 1-413359-01

SHIELD,WHEEL DRIVE

$

$

Not available

23

Toro 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

24

Toro 3234-32

SCREW-HHF

$10.99

$

In Stock, only 1 left!

0

25

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0
