30332 - Toro 44" ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 210000001 - 210999999) (2001) FRAME, FUEL TANK AND SHIFT PLATE ASSEMBLY Parts Diagram

44" ProLine Walk-Behind Mower, Gear Drive, 15hp

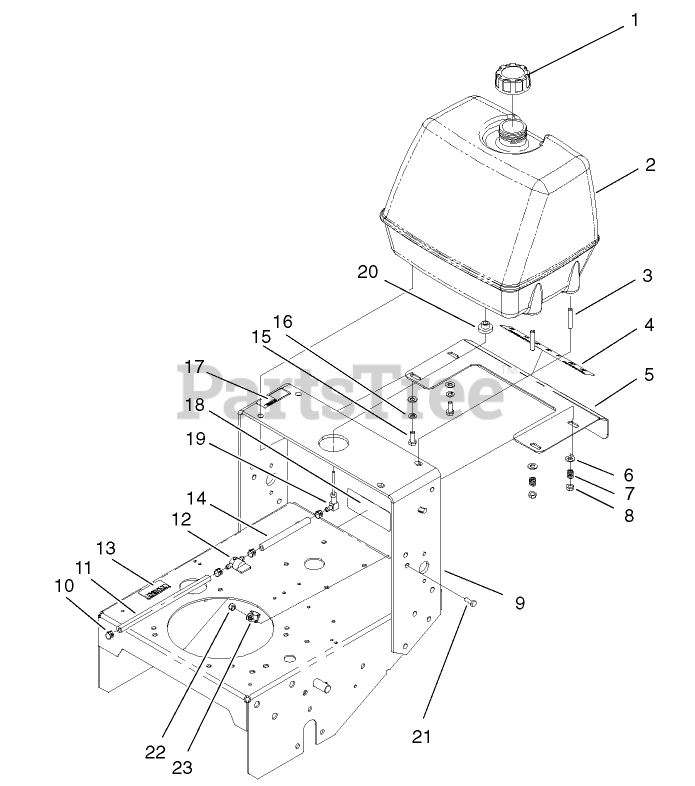

FRAME, FUEL TANK AND SHIFT PLATE ASSEMBLY Parts Diagram

  • Title

1

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

2

Toro 1-323551

TANK-FUEL
(Superseded to 106-0730)

$

$

Not available

3

Toro 104-8121

STUD-THREADED

$16.99

$

Usually ships in 3-6 days

0

4

Toro 105-4104

DECAL-SPEED, GROUND

$16.99

$

Usually ships in 3-6 days

0

5

Toro 104-8102-01

PLATE-GATE, SHIFT

$

$

Not available

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

Usually ships in 3-6 days

0

8

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

9

Toro 104-8100-01

TRACTION FRAME ASM

$1271.99

$

Usually ships in 3-6 days

0

10

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

11

Toro 47-2982

HOSE-FUEL
(Superseded to 110-4894)

$8.49

$

In Stock, only 1 left!

0

12

Toro 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 14

0

13

Toro 105-2625

DECAL-STD, SAFETY

$

$

Not available

14

Toro 47-2980

HOSE-FUEL
(Superseded to 107-0588)

$5.49

$

In Stock, Qty 9

0

15

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 95-2814

DECAL-SHUT OFF, FUEL

$

$

Not available

18

Toro 98-0776

DECAL-CAUTION

$16.99

$

Usually ships in 3-6 days

0

19

Toro 1-543277

ELBOW-TANK, FUEL

$11.99

$

In Stock, Qty 10

0

20

Toro 1-513645

BUSHING-VALVE, FUEL
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

21

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

23

Toro 2412-134

CLAMP-R

$6.49

$

Usually ships in 3-6 days

0
