30332 - Toro 44" ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 210000001 - 210999999) (2001) AIR-FILTER/MUFFLER ASSEMBLY KAWASAKI FH451V-AS08 Parts Diagram

44" ProLine Walk-Behind Mower, Gear Drive, 15hp

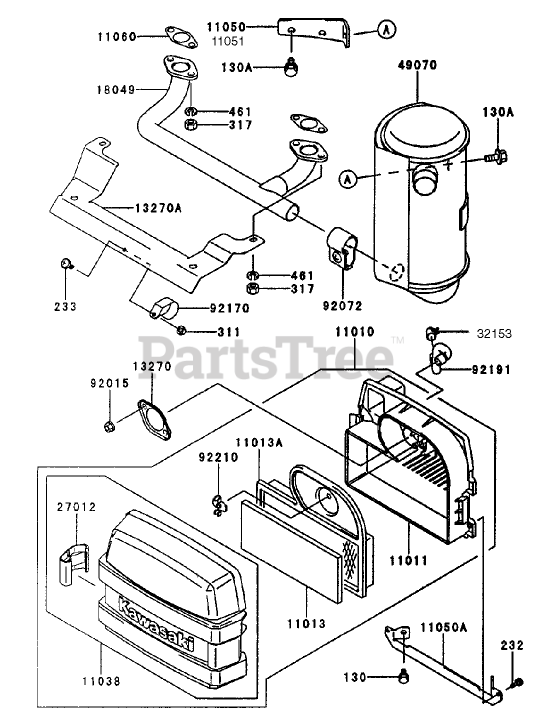

AIR-FILTER/MUFFLER ASSEMBLY KAWASAKI FH451V-AS08 Parts Diagram

  • Title
11010

Kawasaki 11010-7001

Air Filter ASM
(Superseded to 11010-7007)

$72.99

$

In Stock, Qty 6

0

11011

Toro 11011-7001

Case-Air Filter

$

$

Currently unavailable

11013

Kawasaki 11013-7001

Element-FILTER, AIR
(Superseded to 11013-7033)

$5.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 11013-7002

Element-Filter, AIR

$21.99

$

In Stock, Qty 20+

0

11038

Toro 11038-7001

Case-ASM-Air Filter

$

$

Not available

11050

Toro 11050-7004

Bracket

$

$

Currently unavailable

11050A

$9.49

$

Usually ships in 2-5 days

0

11051

$

$

Currently unavailable

11060

Kawasaki 11060-7021

GASKET-MUFFLER
(Superseded to 11060-7006)

$2.49

$

In Stock, Qty 20+

0

13270

$5.49

$

In Stock, only 2 left!

0

13270A

$17.99

$

Usually ships in 2-5 days

0

18049

Kawasaki 18049-7001

Pipe-Exhaust

$139.99

$

Usually ships in 2-5 days

0

27012

Kawasaki 27012-7001

HOOK-FILTER, AIR
(Superseded to 27012-6003)

$2.99

$

In Stock, Qty 20+

0

32153

$5.99

$

Usually ships in 2-5 days

0

49070

Kawasaki 49070-7002

Muffler-Comp
(Superseded to 49070-6001)

$147.99

$

In Stock, Qty 7

0

92072

$

$

Currently unavailable

92015

Kawasaki 92015-1193

Nut
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92170

$3.99

$

In Stock, only 2 left!

0

92191

$

$

Not available

92210

$3.49

$

In Stock, Qty 20+

0

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0816

Bolt-Flanged (8X16)
(Superseded to 130AA0816)

$0.99

$

In Stock, Qty 20+

0

232

Kawasaki 232B0514

SCREW-PAN
(Superseded to 232AA0514)

$0.99

$

In Stock, only 3 left!

0

233

Kawasaki 233B0416

SCREW (4X16)
(Superseded to 233AA0416)

$0.99

$

In Stock, Qty 6

0

311

Toro 311B0400

Nut-Hex (4mm)

$

$

Currently unavailable

317

Kawasaki 317R0800

NUT-HEX, SMALL (8mm)
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 16

0

461

Toro 461F0800

Washer-Spring (8mm)

$

$

Currently unavailable
