30329 - Toro 36" ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 210000001 - 210999999) (2001) CONTROL PANEL ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, Gear Drive, 15hp

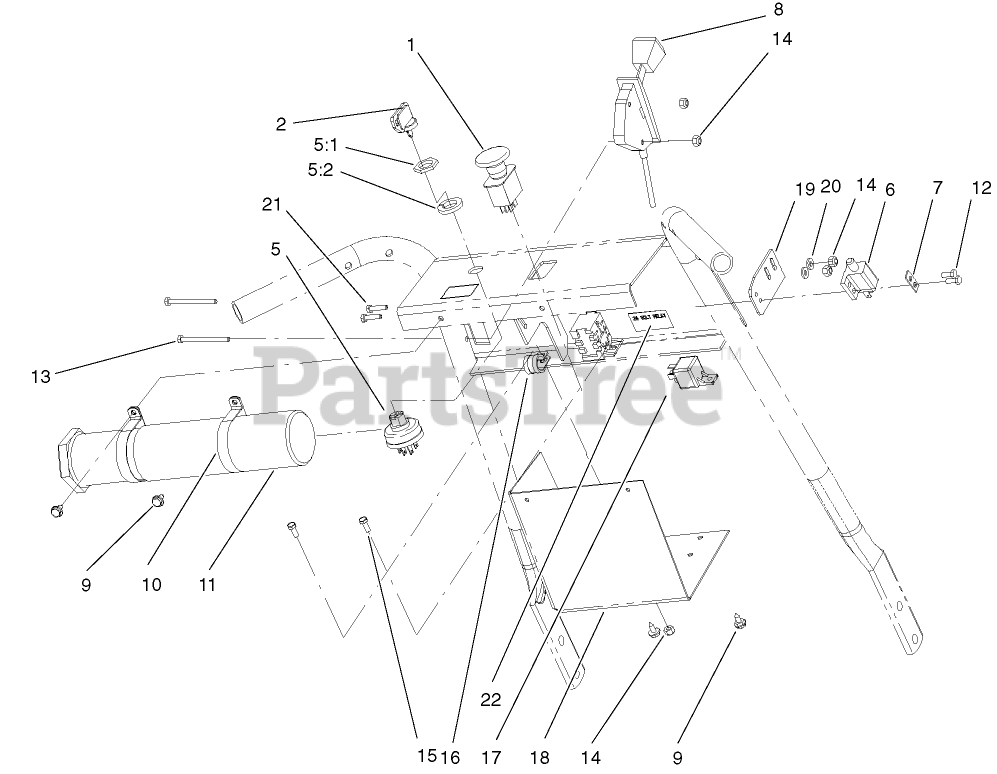

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 95-7489

SWITCH-PTO

$40.99

$

In Stock, only 1 left!

0

2

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 13

0

5

Toro 29-5560

SWITCH-ON / OFF

$17.99

$

In Stock, only 2 left!

0

5:1

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

5:2

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

6

Toro 95-1653

SWITCH-POLE, SINGLE

$20.99

$

Usually ships in 3-6 days

0

7

Toro 82-4570

PLATE-SWITCH

$14.99

$

Usually ships in 3-6 days

0

8

Toro 105-4114

CONTROL-THROTTLE

$155.99

$

Usually ships in 3-6 days

0

9

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

10

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

11

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

12

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

13

Toro 32105-14

SCREW-SHH

$3.49

$

Usually ships in 3-6 days

0

14

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

16

Toro 2412-134

CLAMP-R

$6.49

$

Usually ships in 3-6 days

0

17

Toro 105-4145

RELAY

$49.99

$

Usually ships in 3-6 days

0

18

Toro 105-4112-03

BRACKET-COVER

$

$

Not available

19

Toro 105-4137-03

PLATE-MOUNTING, SWITCH

$

$

Not available

20

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

22

Toro 105-4146

DECAL-RELAY, 24 VOLT

$

$

Not available
