30327 - Toro 44" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 17hp (SN: 260000001 - 260999999) (2006) CONTROL EQUIPMENT ASSEMBLY KAWASAKI FH541V-BS30-R Parts Diagram

44" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 17hp

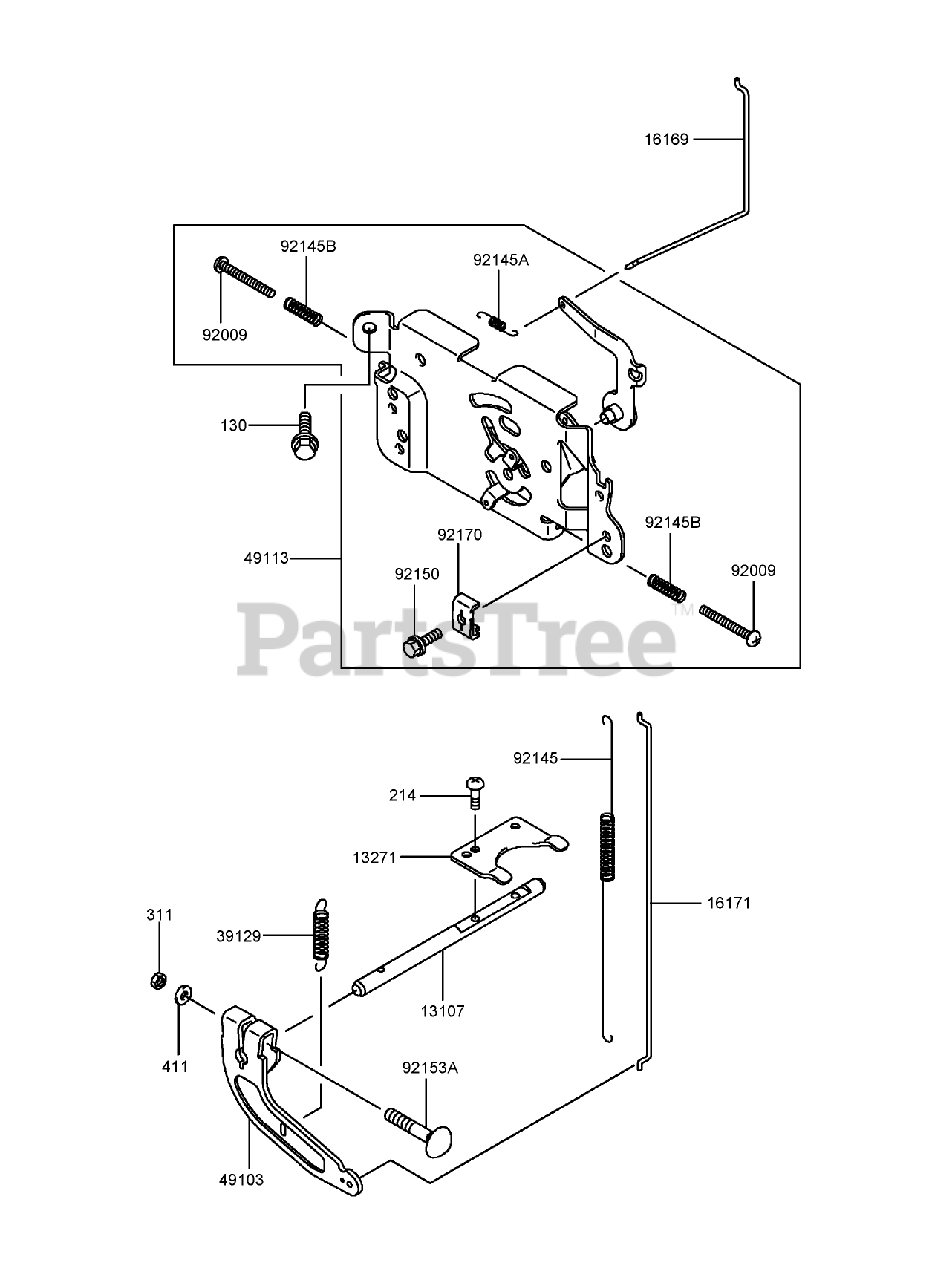

CONTROL EQUIPMENT ASSEMBLY KAWASAKI FH541V-BS30-R Parts Diagram

  • Title

13107

Kawasaki 13107-7010

Shaft
(Superseded to 13107-0750)

Note: Obtain parts from www.kawpowerepc.com

$12.99

$

In Stock, Qty 5

0

13271

Kawasaki 13271-7018

Plate
(Superseded to 13271-7032)

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

In Stock, Qty 6

0

16169

Kawasaki 16169-7010

Link-Choke
(Superseded to 16169-0010)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 10

0

16171

Kawasaki 16171-7001

Link
(Superseded to 16171-0039)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 8

0

39129

Kawasaki 39129-7003

Spring-Governor
(Superseded to 39129-7002)

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 20+

0

49103

Kawasaki 49103-7004

Arm-Governor
(Superseded to 49103-7002)

Note: Obtain parts from www.kawpowerepc.com

$7.99

$

In Stock, Qty 12

0

49113

Kawasaki 49113-7027

PANEL-CONTROL
(Superseded to 49113-7056)

Note: Obtain parts from www.kawpowerepc.com

$26.99

$

In Stock, Qty 9

0

92009

Kawasaki 92009-7007

SCREW (4X35)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

Usually ships in 2-5 days

0

92145

Kawasaki 92145-7003

Spring

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, Qty 20+

0

92145A

Kawasaki 92145-7004

Spring
(Superseded to 92145-7032)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

92145B

Kawasaki 92145-7005

Spring

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 12

0

92150

Kawasaki 92150-2182

BOLT (5X18)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

92153A

Kawasaki 92153-7033

BOLT (6X35)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92170

Kawasaki 92170-7001

Clamp

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, Qty 20+

0

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

214

Kawasaki 214B0408

SCREW-PAN (4X8)
(Superseded to 214AA0408)

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

In Stock, Qty 15

0

311

Toro 311B0600

NUT-HEX (6mm)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

411

Kawasaki 411B0600

Washer-Plain (6mm)
(Superseded to 411AA0600)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 12

0
