30326 R - Troy-Bilt 26" Tiller Attachment (SN: 0100101 - 0199999) CHAINCASE ASSEMBLY Parts Diagram

26" Tiller Attachment

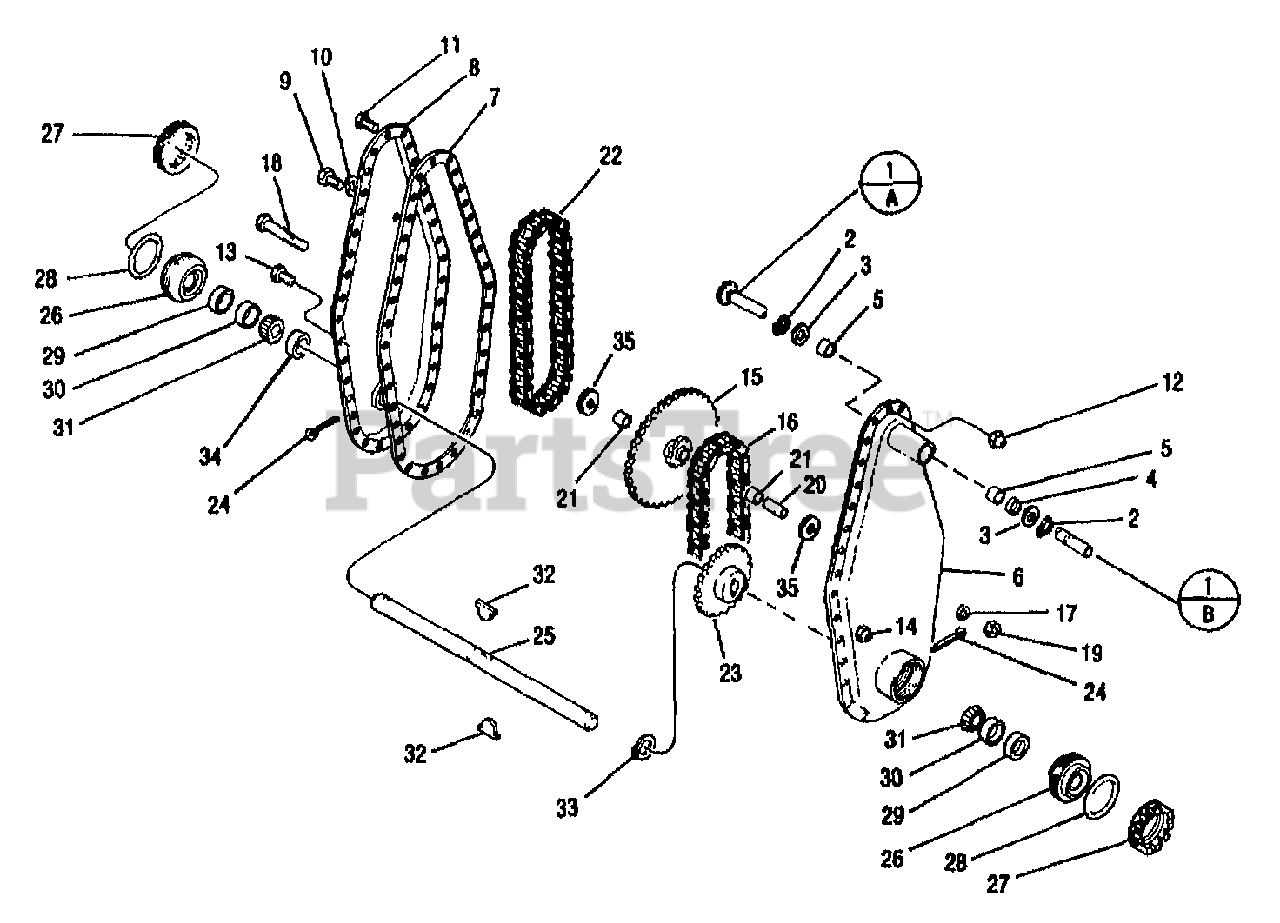

CHAINCASE ASSEMBLY Parts Diagram

  • Title
1

Troy-Bilt 1748175

ASSM-INPUT PTO SHAFT

$

$

Currently unavailable

2

Troy-Bilt 1113527

RING-RETAIN EXT .707 ID
(Superseded to 916-0101)

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 1748169

WASHER-THRUST

$

$

Currently unavailable

4

Troy-Bilt 1185224

SEAL-OIL 3/4 DIAMETER

$15.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 1185471

BEARING-NEEDLE 3/4

$

$

Not available

6

Troy-Bilt 1748171

ASSM-HOUSING LH

$

$

Currently unavailable

7

Troy-Bilt 1748168

GASKET-CHAIN CASE

$

$

Currently unavailable

8

Troy-Bilt 1748170

ASSM-HOUSING RH

$

$

Currently unavailable

9

MTD 1111725

SCR-HH 1/2-20X.75 G5 ZP

$

$

Not available

10

MTD 1746786

WASHER-1.0X.53X.06 NYLON

$

$

Not available

11

Troy-Bilt 1111599

SCR-HH 1/4-20X.625 G5 ZP
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

13

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 1750646

ASSM-SPROCKET

$

$

Currently unavailable

16

Troy-Bilt 1748163

CHAIN-DRIVE ASA 50

$

$

Currently unavailable

17

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

18

MTD 1100770

SCR-HH 3/8-16X2.75 G5 ZP

$

$

Not available

19

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

20

Troy-Bilt 1747946

SLEEVE-IDLER

$

$

Currently unavailable

21

Troy-Bilt 1747947

BEARING-NEEDLE 1/2

$

$

Currently unavailable

22

Troy-Bilt 1748162

CHAIN-DRIVE ASA 41

$

$

Currently unavailable

23

Troy-Bilt 1750647

ASSM-SPROCKET 24T

$

$

Currently unavailable

24

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 1748241

SHAFT-TINE

$

$

Currently unavailable

26

Troy-Bilt 1748288

BEARING-CARRIER

$

$

Currently unavailable

27

MTD 1748290

RING-LOCKING

$

$

Not available

28

MTD 1748199

RING-O 3.35 ID

$

$

Not available

29

Troy-Bilt 1185629

SEAL-OIL 1.25
(Superseded to 721-0110)

$

$

Not available

30

MTD 1177343

BEARING-CUP

$

$

Not available

31

Troy-Bilt 1177262

BRG-TAPERED ROLLER CONE

$

$

Currently unavailable

32

Troy-Bilt 1200034

KEY-HI PRO .25X.875

$

$

Currently unavailable

33

Troy-Bilt 1118816

RING-RET. EXT 1.25 ID
(Superseded to 716-0116)

$4.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 1750645

SPACER-1.75X1.265X.5

$

$

Currently unavailable

35

Troy-Bilt 1750416

WASHER-THRUST .79X.37X.03

$

$

Currently unavailable

Troy-Bilt 1360A

OIL (1901964)

$

$

Currently unavailable
