30321 - Toro 44" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 17hp (SN: 240000001 - 240999999) (2004) SPINDLE ASSEMBLY NO. 106-0784 Parts Diagram

44" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 17hp

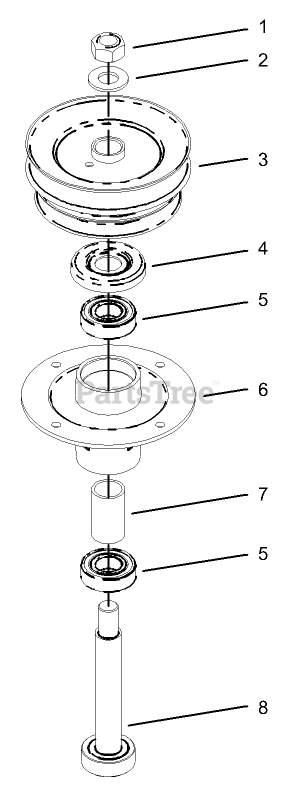

SPINDLE ASSEMBLY NO. 106-0784 Parts Diagram

  • Title
1

Toro 3219-7

NUT-HEX

$1.99

$

In Stock, Qty 10

0

2

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 7

0

3

Toro 104-1116

PULLEY AND HUB ASM

$148.99

$

Usually ships in 3-6 days

0

4

Toro 106-0873

SHIELD-BEARING

$17.99

$

In Stock, only 4 left!

0

5

Toro 104-6325

BEARING-BALL
(Superseded to 116-0720)

$22.99

$

In Stock, Qty 5

0

6

Toro 106-0818

Housing-Spindle

$

$

Not available

7

Toro 106-0794

Spacer-Bearing

$29.99

$

Usually ships in 3-6 days

0

8

Toro 106-0779

Shaft-Spindle
(Superseded to 106-0801)

$

$

Not available
