30321 - Toro 44" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 17hp (SN: 240000001 - 240999999) (2004) LUBRICATION EQUIPMENT ASSEMBLY KAWASAKI FH500V-AS29 Parts Diagram

44" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 17hp

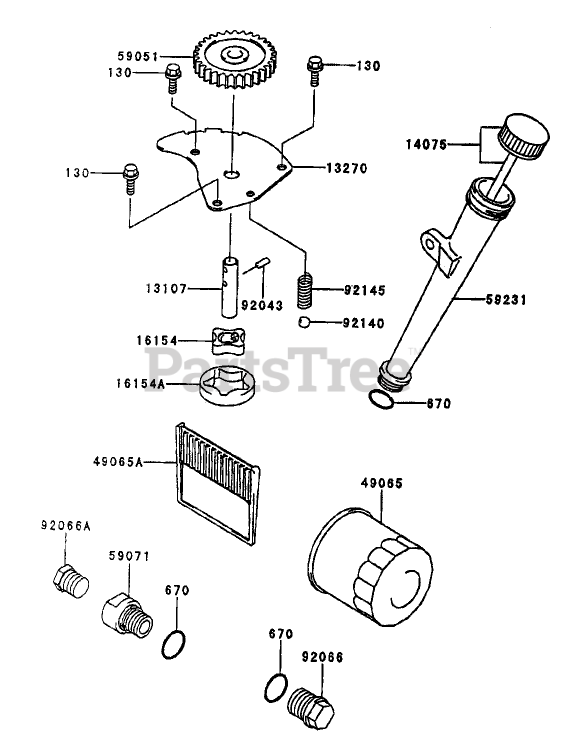

LUBRICATION EQUIPMENT ASSEMBLY KAWASAKI FH500V-AS29 Parts Diagram

  • Title

13107

Kawasaki 13107-2099

Shaft-Oil Pump
(Superseded to 13107-2296)

Note: Obtain parts from your local Kawasaki dealer.

$12.99

$

In Stock, only 1 left!

0

13270

Kawasaki 13270-7004

Plate

Note: Obtain parts from your local Kawasaki dealer.

$

$

Not available

14075

Kawasaki 14075-7001

Cap ASM
(Superseded to 14075-7009)

Note: Obtain parts from your local Kawasaki dealer.

$

$

Not available

16154

Kawasaki 16154-2053

ROTOR-PUMP (IN)

Note: Obtain parts from your local Kawasaki dealer.

$12.99

$

In Stock, Qty 5

0

16154A

Kawasaki 16154-2054

ROTOR-PUMP (OUT)

Note: Obtain parts from your local Kawasaki dealer.

$9.49

$

In Stock, Qty 5

0

49065

Toro 49065-2078

Filter-Oil
(Superseded to 49065-2071)

Note: Obtain parts from your local Kawasaki dealer.

$

$

Not available

49065A

Kawasaki 49065-7001

Filter-Oil

Note: Obtain parts from your local Kawasaki dealer.

$3.49

$

Usually ships in 2-5 days

0

59051

Kawasaki 59051-7004

Gear-Spur
(Superseded to 59051-6001)

Note: Obtain parts from your local Kawasaki dealer.

$

$

Not available

59071

Kawasaki 59071-7004

Joint
(Superseded to 59071-7023)

Note: Obtain parts from your local Kawasaki dealer.

$8.99

$

In Stock, Qty 12

0

59231

Kawasaki 59231-7001

Filler
(Superseded to 59231-7005)

Note: Obtain parts from your local Kawasaki dealer.

$5.99

$

In Stock, Qty 6

0

92043

Kawasaki 92043-7003

Pin

Note: Obtain parts from your local Kawasaki dealer.

$

$

Not available

92066

Kawasaki 92066-7003

Plug
(Superseded to 920660774)

Note: Obtain parts from your local Kawasaki dealer.

$5.49

$

In Stock, Qty 8

0

92066A

Toro 92066-7006

Plug

Note: Obtain parts from your local Kawasaki dealer.

$

$

Currently unavailable

92140

Kawasaki 92140-7003

Ball

Note: Obtain parts from your local Kawasaki dealer.

$1.49

$

In Stock, Qty 11

0

92145

Kawasaki 92145-7002

Spring

Note: Obtain parts from your local Kawasaki dealer.

$

$

Not available

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain parts from your local Kawasaki dealer.

$0.99

$

In Stock, Qty 15

0

670

Kawasaki 670D2016

O-RING (16mm)
(Superseded to M88478)

Note: Obtain parts from your local Kawasaki dealer.

$1.99

$

In Stock, Qty 20+

0
