30318 - Toro 44" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 15hp (SN: 240000001 - 240002000) (2004) ENGINE CONTROL ASSEMBLY KOHLER CV15T-41604 Parts Diagram

44" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 15hp

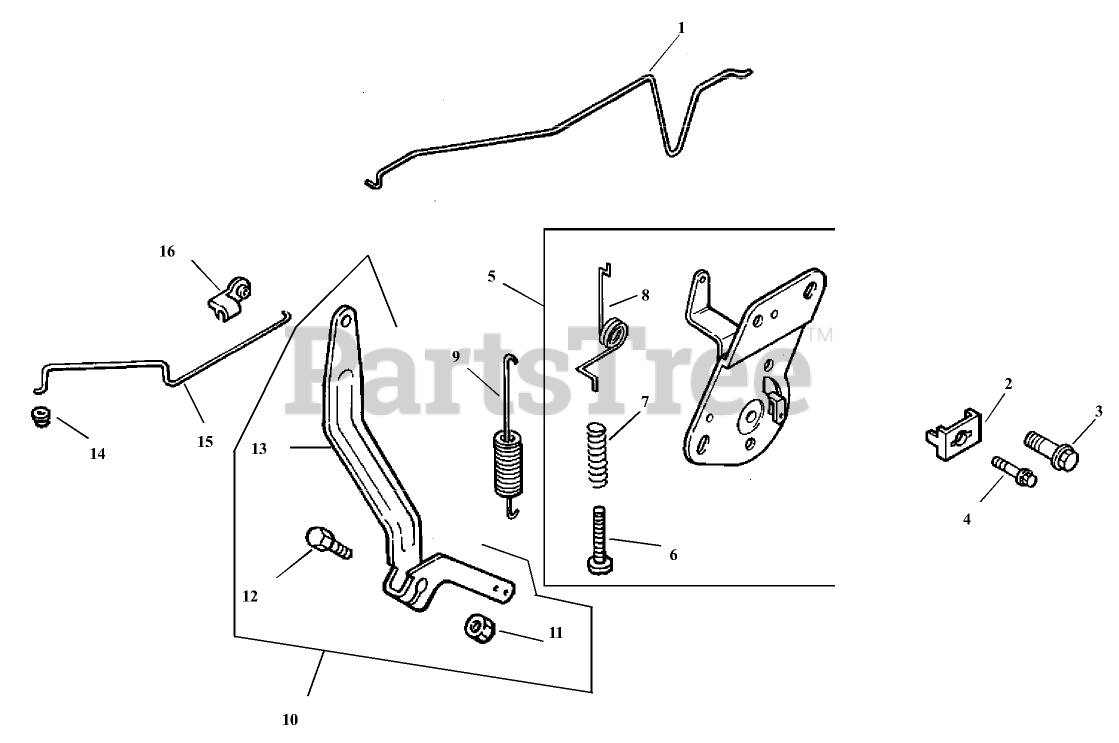

ENGINE CONTROL ASSEMBLY KOHLER CV15T-41604 Parts Diagram

  • Title
1

Kohler 12 079 07-S

Linkage-Choke

Note: Order Parts from Kohler

$7.99

$

In Stock, only 1 left!

0

2

Kohler 12 237 01-S

CLAMP-CABLE
(Superseded to 25 237 53-S)

Note: Order Parts from Kohler

$3.49

$

In Stock, Qty 5

0

3

Kohler M-664020-S

Screw-Socket, 6 Lobed (Thread Forming, M6x1.0x20)
(Superseded to 25 086 403-S)

Note: Order Parts from Kohler

$2.49

$

In Stock, only 2 left!

0

4

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Order Parts from Kohler

$3.99

$

Usually ships in 2-5 days

0

5

Kohler 12 536 01-S

Control-Speed ASM (Incl. 6-8)

Note: Order Parts from Kohler

$

$

Not available

6

Kohler M-443025-S

Screw-SPH,M4x0.7x25

Note: Order Parts from Kohler

$2.49

$

In Stock, only 1 left!

0

7

Kohler 12 089 11-S

Spring-Control, Speed

Note: Order Parts from Kohler

$2.49

$

In Stock, only 4 left!

0

8

Kohler 12 089 23-S

Spring-Return, Choke

Note: Order Parts from Kohler

$10.99

$

In Stock, only 1 left!

0

9

Kohler 12 089 19-S

Spring-Governor

Note: Order Parts from Kohler

$

$

Not available

10

Kohler 12 755 83-S

Kit-Governor Lever (Incl. 11-13)

Note: Order Parts from Kohler

$6.49

$

In Stock, only 1 left!

0

11

Kohler 12 100 07-S

Nut-Flange, Hex (1/4-20)

Note: Order Parts from Kohler

$2.49

$

In Stock, only 2 left!

0

12

Kohler 52 211 04-S

Bolt-Square Neck, Round Head (1/4-20x1)

Note: Order Parts from Kohler

$4.99

$

Usually ships in 2-5 days

0

13

Kohler 12 090 28-S

Lever-Governor

Note: Order Parts from Kohler

$5.99

$

In Stock, only 1 left!

0

14

Kohler 25 158 08-S

BUSHING-LINKAGE, THROTTLE

Note: Order Parts from Kohler

$5.99

$

In Stock, Qty 18

0

15

Kohler 12 079 01-S

Linkage-Throttle

Note: Order Parts from Kohler

$11.99

$

In Stock, only 1 left!

0

16

Kohler 25 158 11-S

BUSHING-RETAINING, LINKAGE

Note: Order Parts from Kohler

$5.99

$

In Stock, only 2 left!

0
