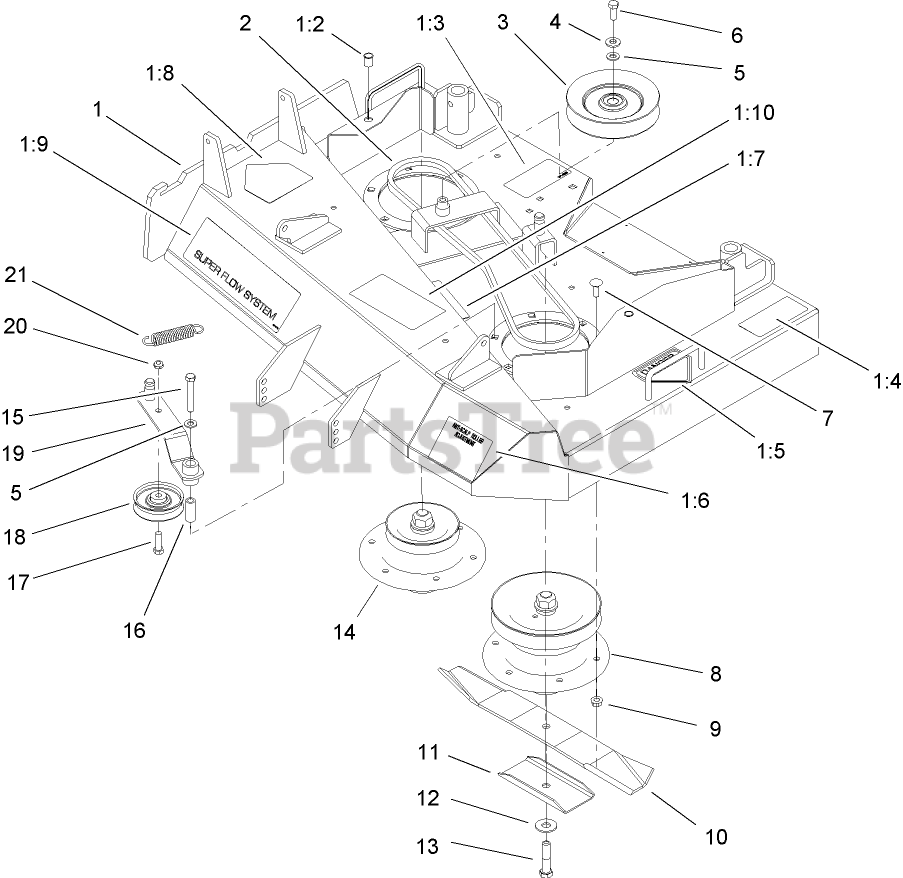

30317 - Toro 36" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 15hp (SN: 260000001 - 260999999) (2006) SPINDLE, PULLEY AND BELT ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 15hp

SPINDLE, PULLEY AND BELT ASSEMBLY Parts Diagram

  • Title
1

Toro 106-0615

36 INCH DECK ASM

$

$

Not available

1:2

Toro 32148-9

INSERT-NUT

$3.49

$

In Stock, only 2 left!

0

1:3

$19.99

$

Usually ships in 3-6 days

0

1:4

Toro 68-8340

DECAL-TORQUE

$21.99

$

In Stock, only 1 left!

0

1:5

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

1:6

Toro 106-5532

DECAL-ANTI SCALP

$

$

Not available

1:7

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

1:8

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

1:9

$

$

Not available

1:10

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

2

Toro 51-3530

V-BELT-DRIVE, DECK

$37.99

$

In Stock, only 1 left!

0

3

Toro 1-633166

PULLEY-IDLER

$56.99

$

In Stock, only 3 left!

0

4

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

6

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

7

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

8

Toro 106-0785

SPINDLE HOUSING ASM

$

$

Not available

9

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

10

Toro 56-2390-03

BLADE-SAIL, EXTRA HIGH

$37.99

$

In Stock, Qty 13

0

11

Toro 92-9820

STIFFENER-BLADE

$62.99

$

Usually ships in 3-6 days

0

12

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, Qty 6

0

14

Toro 106-0787

SPINDLE HOUSING ASM

$592.99

$

Usually ships in 3-6 days

0

15

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

16

Toro 51-3641

SLEEVE-PIVOT, IDLER

$20.99

$

In Stock, only 1 left!

0

17

Toro 3211-5

SCREW-HH

$3.49

$

In Stock, Qty 5

0

18

Toro 51-3660

PULLEY-IDLER

$39.99

$

In Stock, Qty 5

0

19

Toro 105-0889

IDLER ARM ASM

$161.99

$

Usually ships in 3-6 days

0

20

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

21

Toro 105-2673

SPRING-EXTENSION

$28.99

$

Usually ships in 3-6 days

0
