30317 - Toro 36" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 15hp (SN: 260000001 - 260999999) (2006) ENGINE INSTALLATION ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 15hp

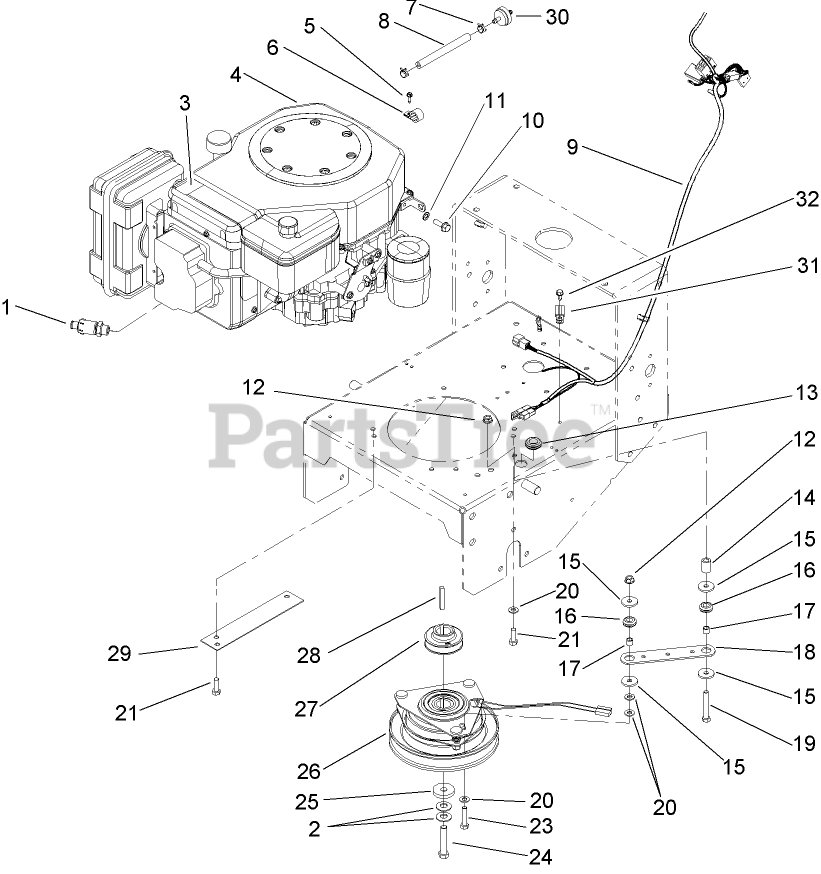

ENGINE INSTALLATION ASSEMBLY Parts Diagram

  • Title
1

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 2 left!

0

2

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

3

Toro 106-0699

DECAL-WARNING

$55.99

$

Usually ships in 3-6 days

0

4

Engine-Kohler, CV15T-41629

Note: Not serviced separately

$

$

Not available

4

Engine-Kohler, CV15T-41629

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

5

Toro 32144-19

SCREW-SHWH

$1.49

$

Usually ships in 3-6 days

0

6

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

7

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

8

Toro 110-4894

HOSE-FUEL

$9.99

$

In Stock, only 1 left!

0

9

Toro 104-8136

HARNESS-WIRE

$334.99

$

Usually ships in 3-6 days

0

10

Toro 33104-025

SCREW-HHF

$7.99

$

In Stock, only 2 left!

0

11

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

12

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

14

Toro 104-6373

TUBE-RETAINER

$15.99

$

Usually ships in 3-6 days

0

15

Toro 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

16

Toro 1-633630

GROMMET

$5.99

$

In Stock, Qty 16

0

17

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

18

Toro 1-633543-03

STRAP-CLUTCH, BRAKE

$14.99

$

In Stock, only 2 left!

0

19

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

21

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

23

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 3212-9

SCREW-HH

$12.99

$

In Stock, only 2 left!

0

25

Toro 107-4136

WASHER
(Superseded to 1-543610)

$6.49

$

In Stock, Qty 16

0

26

Toro 105-2635

CLUTCH / BRAKE ASM

$576.99

$

In Stock, only 1 left!

0

27

Toro 107-4112

PULLEY-DRIVE

$137.99

$

Usually ships in 3-6 days

0

28

Toro 608006

KEY-SQUARE

$5.49

$

In Stock, only 1 left!

0

29

Toro 94-5847-01

COVER-PULLEY

$

$

Not available

30

Toro 56-6360

FILTER-FUEL

$6.49

$

In Stock, Qty 20+

0

31

Toro 2412-134

CLAMP-R

$6.49

$

Usually ships in 3-6 days

0

32

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

99

Toro 103-1964

HOSE-DRAIN, OIL

Note: Not illustrated

$11.99

$

In Stock, only 2 left!

0
