30317 - Toro 36" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 15hp (SN: 240000001 - 240002000) (2004) SPINDLE ASSEMBLY NO. 106-0785 Parts Diagram

36" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 15hp

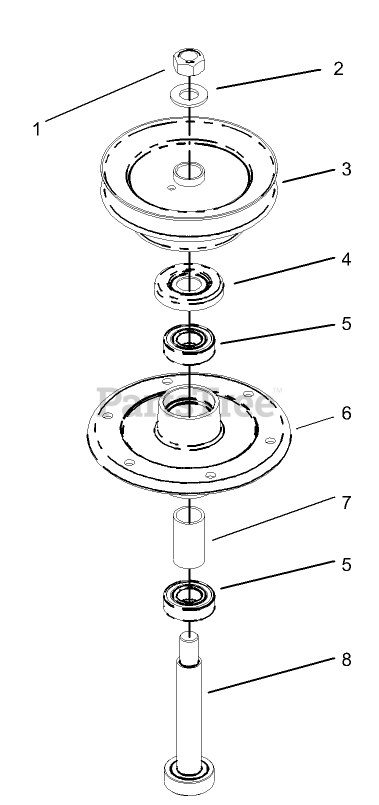

SPINDLE ASSEMBLY NO. 106-0785 Parts Diagram

  • Title
1

Toro 3219-7

NUT-HEX

$1.99

$

In Stock, Qty 9

0

2

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 6

0

3

Toro 104-1117

PULLEY AND HUB ASM

$

$

Not available

4

Toro 106-0873

SHIELD-BEARING

$18.99

$

In Stock, only 3 left!

0

5

Toro 104-6325

BEARING-BALL
(Superseded to 116-0720)

$22.99

$

In Stock, Qty 20+

0

6

Toro 106-0819

HOUSING-SPINDLE

$293.99

$

Usually ships in 3-6 days

0

7

Toro 106-0795

SPACER-BEARING

$29.99

$

In Stock, only 1 left!

0

8

Toro 106-0781

SHAFT-SPINDLE

$254.99

$

Usually ships in 3-6 days

0
