30316 - Toro 32" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp (SN: 250000001 - 250999999) (2005) DECK ASSEMBLY Parts Diagram

32" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp

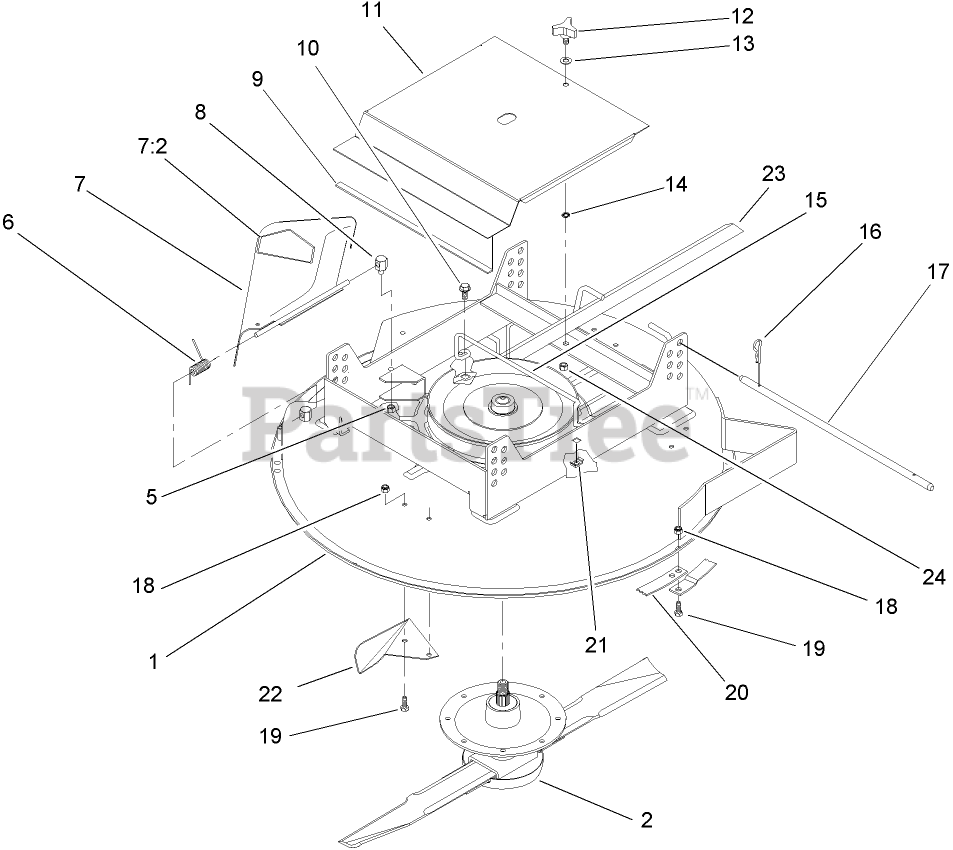

DECK ASSEMBLY Parts Diagram

  • Title

1

Deck ASM

Note: Not serviced separately

$

$

Not available

2

Spindle ASM

Note: Not serviced separately

$

$

Not available

5

Toro 32153-2

NUT-LOCK, SIDE

$0.99

$

In Stock, Qty 14

0

6

Toro 28-8010

SPRING

$20.99

$

Usually ships in 3-6 days

0

7

Toro 44-5930

DEFLECTOR ASM

$164.99

$

Usually ships in 3-6 days

0

7:2

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 12

0

8

Toro 28-7350

POST-PIVOT

$33.99

$

Usually ships in 3-6 days

0

9

Toro 67-6180

STRIP-MAGNETIC

$30.99

$

Usually ships in 3-6 days

0

10

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

11

Toro 67-6160-01

Cover

$101.99

$

Usually ships in 3-6 days

0

12

Toro 106-0887

KNOB

$8.49

$

In Stock, Qty 5

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 32151-72

RING-RETAINING

$1.99

$

In Stock, only 2 left!

0

15

Toro 74-0570

GUIDE-BELT

$66.99

$

Usually ships in 3-6 days

0

16

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

17

Toro 67-6140

ROD-SUPPORT

$

$

Not available

18

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

19

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 92-5419-03

RING-RECYCLER

$22.99

$

Usually ships in 3-6 days

0

21

Toro 3290-496

NUT-RETAINER

$6.49

$

In Stock, only 3 left!

0

22

Toro 80-2630-03

KICKER

$31.99

$

In Stock, only 4 left!

0

23

Toro 67-6920

V-BELT

$67.99

$

Usually ships in 3-6 days

0

24

Toro 32148-10

INSERT-NUT

$8.49

$

Usually ships in 3-6 days

0
