30316 - Toro 32" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp (SN: 250000001 - 250999999) (2005) CRANKCASE ASSEMBLY KOHLER CV13T 21540 Parts Diagram

32" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp

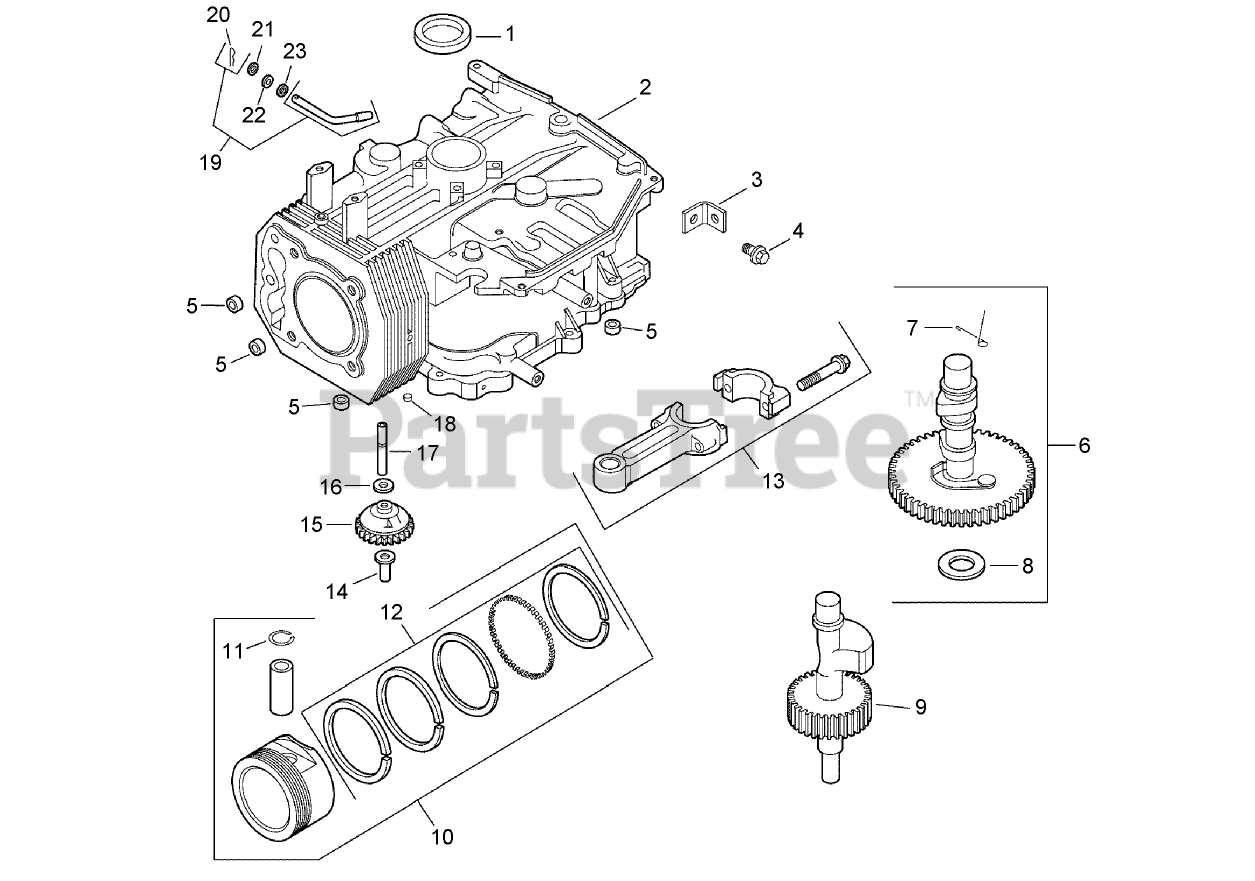

CRANKCASE ASSEMBLY KOHLER CV13T 21540 Parts Diagram

  • Title

1

Kohler 12 032 03-S

Seal-Oil

Note: Obtain parts from www.kohlerplus.com

$9.99

$

Usually ships in 2-5 days

0

2

Crankcase (USE: Short Block 12 522 33)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Crankcase (USE: Short Block 12 522 33)

Note: Not serviced separately

$

$

Not available

3

Kohler 12 445 02-S

Strap-Lifting

Note: Obtain parts from www.kohlerplus.com

$17.99

$

Usually ships in 2-5 days

0

4

Kohler M-839025-S

Screw-HF (M8x1.25x25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

5

Kohler 24 380 13-S

Pin-Locating
(Superseded to 24 380 16-S)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 3 left!

0

6

Kohler 12 755 49-S

Camshaft Kit (Incl. Ref. #7 and 8)

Note: Obtain parts from www.kohlerplus.com

$209.99

$

Usually ships in 2-5 days

0

7

Kohler 12 089 37-S

Spring-Actuating

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 1 left!

0

8

Kohler 12 422 08-S

SHIM-CAMSHAFT (BLUE .03)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

8

Kohler 12 422 09-S

SHIM-CAMSHAFT (RED .032)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

8

Kohler 12 422 10-S

SHIM-CAMSHAFT (YELLOW .034)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

8

Kohler 12 422 11-S

SHIM-CAMSHAFT (GREEN .036)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 12 422 12-S

SHIM-CAMSHAFT (GRAY .038)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

8

Kohler 12 422 13-S

SHIM-CAMSHAFT (BLACK .04)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

8

Kohler 12 422 07-S

SHIM-CAMSHAFT (WHITE .028)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

Usually ships in 2-5 days

0

9

Kohler 12 144 27-S

Shaft-Balance

Note: Obtain parts from www.kohlerplus.com

$111.99

$

Usually ships in 2-5 days

0

10

Kohler 12 874 01-S

Piston w/Ring Set (STD) (Incl. Ref. #11 and 12)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

10

Kohler 12 874 10-S

Piston w/Ring Set (.08)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

10

Kohler 12 874 02-S

Piston w/Ring Set (.25)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

10

Kohler 12 874 03-S

Piston w/Ring Set (.50)

Note: Obtain parts from www.kohlerplus.com

$234.99

$

Usually ships in 2-5 days

0

11

Kohler 12 018 02-S

Retainer-Pin, Piston

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

12

Kohler 12 108 01-S

Ring Set (STD and .08)

Note: Obtain parts from www.kohlerplus.com

$123.99

$

In Stock, only 1 left!

0

12

Kohler 12 108 02-S

Ring Set (.25)

Note: Obtain parts from www.kohlerplus.com

$115.99

$

Usually ships in 2-5 days

0

12

Kohler 12 108 03-S

Ring Set (.50)

Note: Obtain parts from www.kohlerplus.com

$115.99

$

Usually ships in 2-5 days

0

13

Kohler 12 067 05-S

Rod-Connecting (STD)

Note: Obtain parts from www.kohlerplus.com

$147.99

$

Usually ships in 2-5 days

0

13

Kohler 12 067 06-S

Rod-Connecting (.25)

Note: Obtain parts from www.kohlerplus.com

$124.99

$

Usually ships in 2-5 days

0

14

Kohler 12 380 01-S

PIN-REGULATING, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 10

0

15

Kohler 12 043 05-S

Gear-Governor

Note: Obtain parts from www.kohlerplus.com

$25.99

$

Usually ships in 2-5 days

0

16

Kohler M-631005-S

WASHER-FLAT (6 MM)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

17

Kohler 12 144 02-S

SHAFT-GEAR, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 8

0

18

Kohler 52 139 09-S

PLUG-CUP

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, only 2 left!

0

19

Kohler 12 755 64-S

Governor Cross Shaft Kit (Includes 20)

Note: Obtain parts from www.kohlerplus.com

$12.99

$

In Stock, only 1 left!

0

20

Kohler 12 154 05-S

Clip-Pin, Hitch

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

21

Kohler X-25-102-S

WASHER-FLAT (1/4)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 5

0

22

Kohler 12 032 01-S

Seal-Cross Shaft, Governor

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 9

0

23

Kohler M-631015-S

WASHER-FLAT (6mm)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0
