30316 - Toro 32" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp (SN: 250000001 - 250999999) (2005) BLOWER HOUSING AND BAFFLE ASSEMBLY KOHLER CV13T 21540 Parts Diagram

32" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp

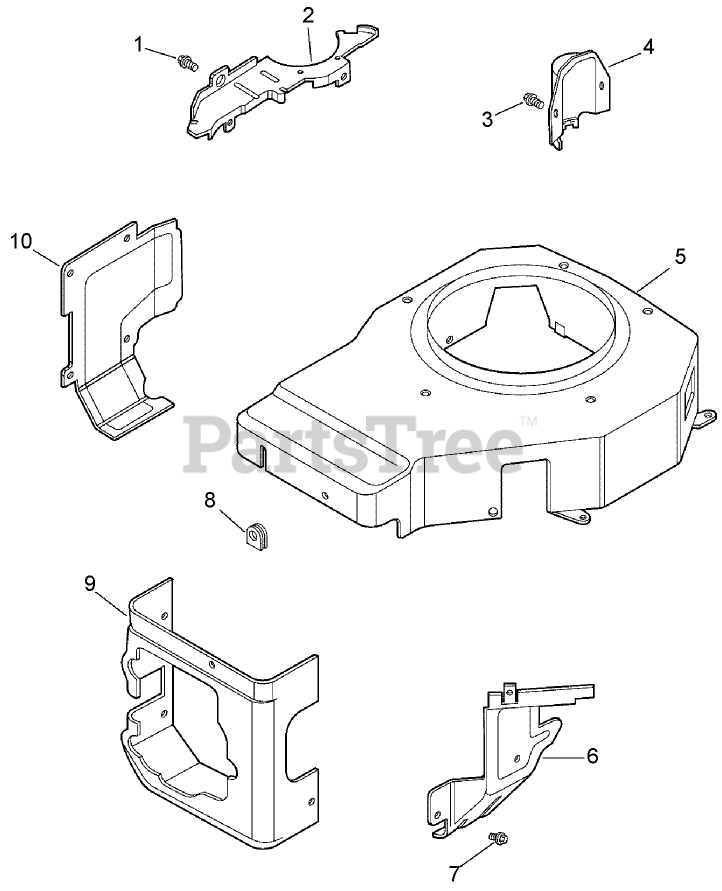

BLOWER HOUSING AND BAFFLE ASSEMBLY KOHLER CV13T 21540 Parts Diagram

  • Title
1

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 2 left!

0

2

Kohler 12 146 07-S

Plate-Housing, Blower

Note: Obtain parts from www.kohlerplus.com

$9.49

$

Usually ships in 2-5 days

0

3

Kohler M-550010-S

Screw-HF (M5x0.8x10)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 1 left!

0

4

Kohler 12 096 29-S

Cover-Starter

Note: Obtain parts from www.kohlerplus.com

$12.99

$

Usually ships in 2-5 days

0

5

Kohler 12 027 68-S

Housing-Blower

Note: Obtain parts from www.kohlerplus.com

$220.99

$

Usually ships in 2-5 days

0

6

Kohler 12 063 10-S

Baffle-Side, Intake

Note: Obtain parts from www.kohlerplus.com

$47.99

$

Usually ships in 2-5 days

0

7

Kohler M-561016-S

SCREW-FLANGE, THREAD FORMING (M5X.80X16)
(Superseded to M-545016-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 15

0

8

Kohler 12 313 03-S

Grommet-Spark Plug

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

9

Kohler 12 063 08-S

Baffle-Head, Cylinder

Note: Obtain parts from www.kohlerplus.com

$48.99

$

Usually ships in 2-5 days

0

10

Kohler 12 063 19-S

Baffle-Cylinder

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 12 113 124-S

Decal-15HP

Note: Obtain parts from www.kohlerplus.com

$7.49

$

Usually ships in 2-5 days

0

Kohler 12 113 124-S

Decal-15HP

Note: Not illustrated

$7.49

$

Usually ships in 2-5 days

0

Kohler 25 113 39-S

DECAL-LAMINATE, CLEAR
(Superseded to 25 113 79-S)

Note: Not illustrated

$2.49

$

In Stock, only 4 left!

0

Kohler 25 113 39-S

DECAL-LAMINATE, CLEAR
(Superseded to 25 113 79-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 4 left!

0
