30316 - Toro 32" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp (SN: 240000001 - 240999999) (2004) STARTER SYSTEM (KOHLER CV13T-PS-21524) Parts Diagram

32" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp

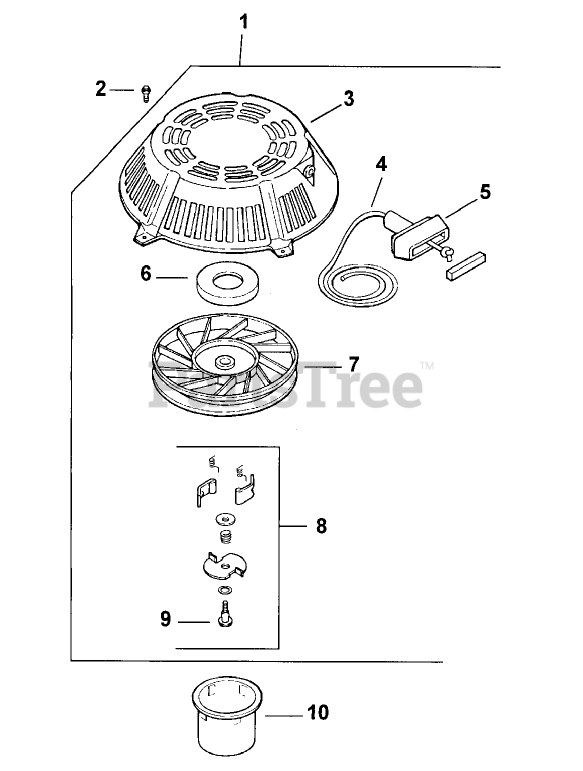

STARTER SYSTEM (KOHLER CV13T-PS-21524) Parts Diagram

  • Title

1

1216501

Starter Incl 3-9

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

Toro M-0545010

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

3

1208101

Housing-Starter

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

1216001

Rope-Starter

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

2516601

Handle-Recoil

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

1208906

Spring & Keeper

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

1209301

Pulley

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

1275706

Kit-Dog Replacement (incl. Ref.#9)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

4108609

Screw-Posidrive

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

1510901

Cup-Driver

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1211307

Decal-Starting

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1211307

Decal-Starting

Note: Not illustrated

$

$

Not available
