30316 - Toro 32" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp (SN: 230000001 - 230999999) (2003) SPINDLE ASSEMBLY Parts Diagram

32" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp

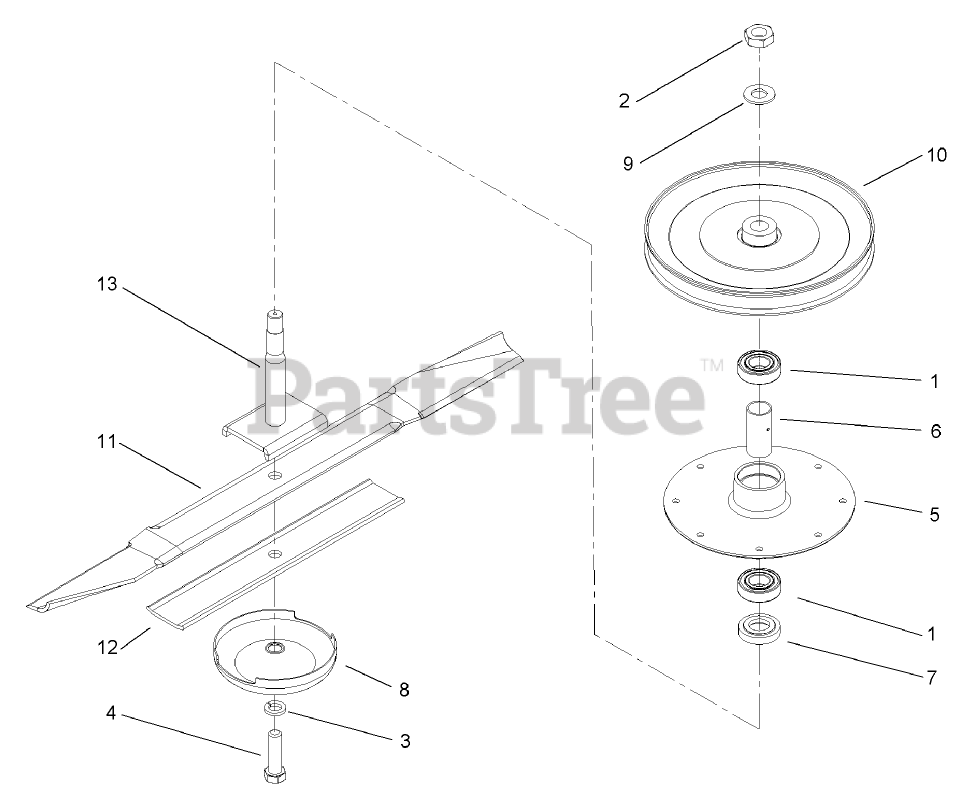

SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 104-6325

BEARING-BALL
(Superseded to 116-0720)

$22.99

$

In Stock, Qty 20+

0

2

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

3

Toro 3253-23

WASHER-LOCK/SP

$5.49

$

In Stock, only 3 left!

0

4

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 20+

0

5

Toro 67-6060

HOUSING-SPINDLE
(Superseded to 67-6060-03)

$570.99

$

Usually ships in 3-6 days

0

6

Toro 67-6070

SPACER-BEARING

$56.99

$

Usually ships in 3-6 days

0

7

Toro 67-6080

SPACER

$102.99

$

Usually ships in 3-6 days

0

8

Toro 7-3522

Cup
(Superseded to 92-6313)

$53.99

$

In Stock, only 1 left!

0

9

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

10

Toro 74-0580

PULLEY ASM

$289.99

$

Usually ships in 3-6 days

0

11

Toro 80-4430

BLADE-RECYCLER
(Superseded to 80-4430-03)

$52.99

$

In Stock, Qty 10

0

12

Toro 82-4750

Decal-Danger
(Superseded to 82-4750-03)

$77.99

$

Usually ships in 3-6 days

0

13

Toro 105-4607

Shaft-Spindle

$210.99

$

Usually ships in 3-6 days

0
