30316 - Toro 32" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp (SN: 230000001 - 230999999) (2003) OIL PAN / LUBRICATION (KOHLER CV13T-PS-21524) Parts Diagram

32" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp

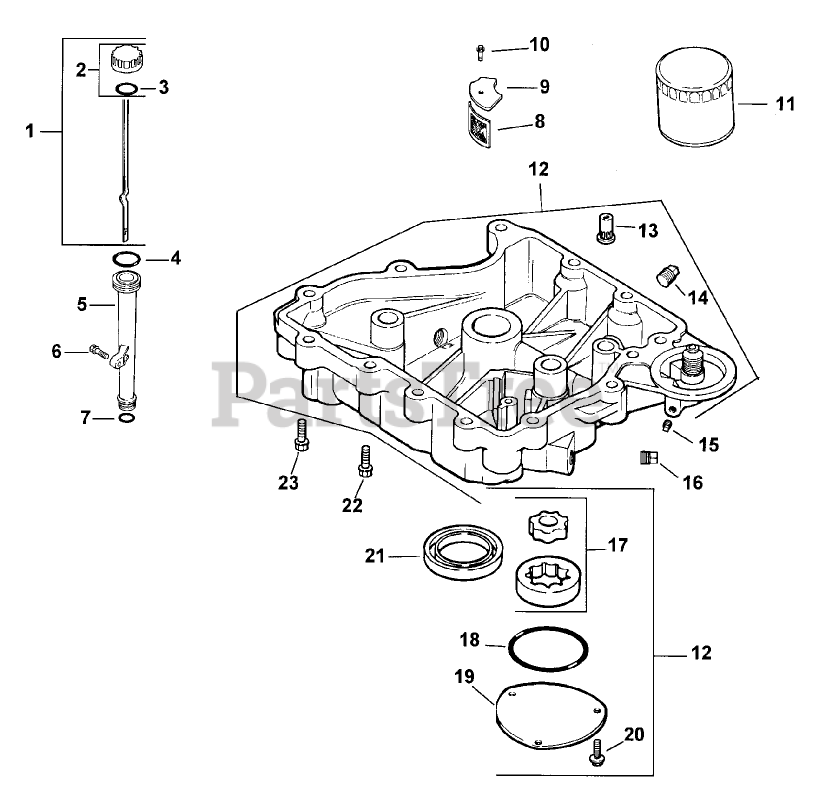

OIL PAN / LUBRICATION (KOHLER CV13T-PS-21524) Parts Diagram

  • Title

1

1203801

Dipstick INC 2-3

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

2575513

Kit-Oil Fill Cap

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

1215303

"O"Ring

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

1215302

"O"Ring

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

1212304

Tube-Oil Fill

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

Kohler M-0545020

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

1215301

"O"Ring

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

2516207

Screen-Oil

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

1209603

Cover-Oil Screen

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 15

0

11

5205002

Filter-Oil

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

1275545

Pan-Oil (Incl. Ref. #13, 14, 17-20)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

2546209

Valve-Oil Pressure

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

14

Kohler X-75-2

Plug
(Superseded to X-75-2-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

Usually ships in 2-5 days

0

15

Kohler X-75-1

Plug-SH 1/8
(Superseded to X-75-1-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 1 left!

0

16

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

17

1239301

Pump-Oil

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

18

1215306

O-ring-Oil Pump

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

19

1209634

Cover-Oil Pump

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

20

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 15

0

21

1203203

Seal-Crankshaft

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

22

Kohler 24 086 16

Screw
(Superseded to 24 086 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 5

0

23

2406817

Screw-M5X1.25X45

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
