30316 - Toro 32" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp (SN: 230000001 - 230999999) (2003) FUEL TANK AND IDLER BRACKET ASSEMBLY Parts Diagram

32" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp

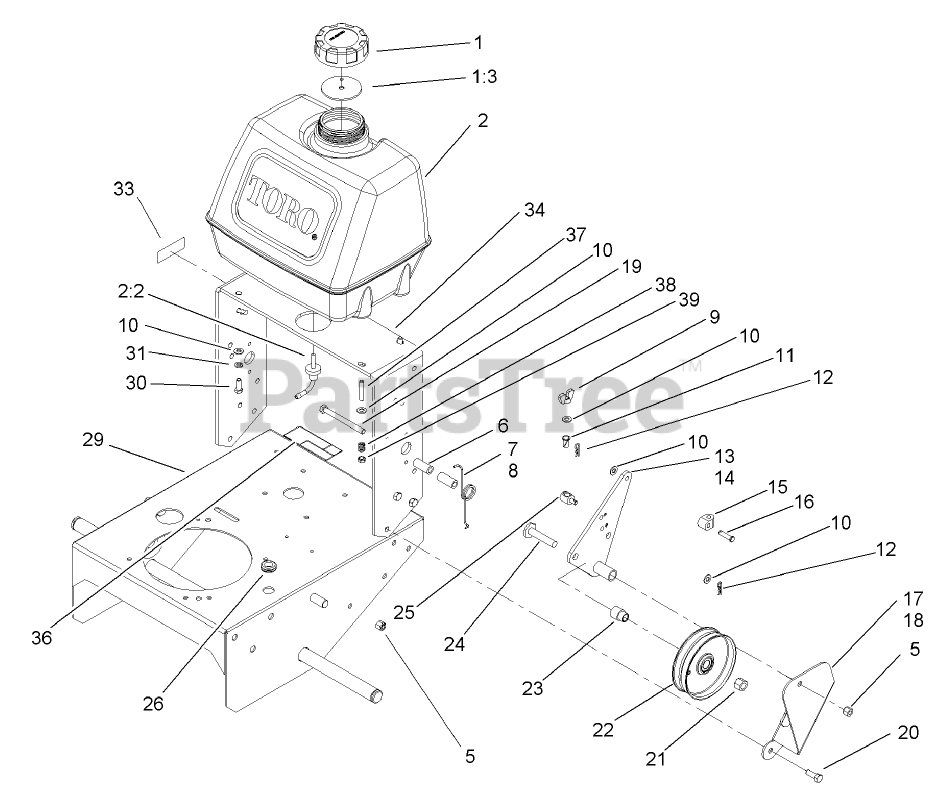

FUEL TANK AND IDLER BRACKET ASSEMBLY Parts Diagram

  • Title
1

Toro 88-3980

GAS CAP ASM

$33.99

$

In Stock, Qty 6

0

1:3

Toro 88-4010

GASKET-CAP, GAS

$34.99

$

In Stock, only 1 left!

0

2

Toro 106-0730

FUEL TANK ASM

$

$

Not available

2:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

6

Toro 74-0040

SPACER-PIVOT, IDLER

$6.49

$

Usually ships in 3-6 days

0

7

Toro 51-4370

SPRING-TORSION, RH

$17.99

$

In Stock, only 1 left!

0

8

Toro 51-4380

SPRING-TORSION, LH

$17.99

$

In Stock, only 1 left!

0

9

Toro 32103-25

NUT-WING

$5.49

$

Usually ships in 3-6 days

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 52-2890

BUSHING-NYLON

$3.49

$

Usually ships in 3-6 days

0

12

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

13

Toro 74-0230-01

BRACKET-IDLER, RH

$

$

Not available

14

Toro 74-0220-01

BRACKET-IDLER, LH

$

$

Not available

15

Toro 74-0521

FITTING-ROD

$14.99

$

Usually ships in 3-6 days

0

16

Toro 283-6

PIN-CLEVIS

$1.99

$

In Stock, Qty 11

0

17

Toro 67-6370-01

BRACKET-SUPPORT, RH

$126.99

$

Usually ships in 3-6 days

0

18

Toro 67-6380-01

BRACKET-SUPPORT, LH

$126.99

$

Usually ships in 3-6 days

0

19

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

0

20

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

21

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 95-2800

PULLEY-IDLER

$44.99

$

Usually ships in 3-6 days

0

23

Toro 95-2801

SPACER-PULLEY

$9.49

$

Usually ships in 3-6 days

0

24

Toro 51-4450

SCREW-LEVELER

$13.99

$

Usually ships in 3-6 days

0

25

Toro 68-9690

FITTING-ROD

$56.99

$

Usually ships in 3-6 days

0

26

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

29

Toro 105-4670-01

Frame ASM

$

$

Not available

30

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

31

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

33

Toro 95-2814

DECAL-SHUT OFF, FUEL

$

$

Not available

34

Toro 106-0649-01

FRAME-UPPER

$

$

Not available

36

Toro 98-0776

DECAL-CAUTION

$18.99

$

Usually ships in 3-6 days

0

37

Toro 104-8121

STUD-THREADED

$18.99

$

Usually ships in 3-6 days

0

38

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

39

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0
