30316 - Toro 32" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp (SN: 230000001 - 230999999) (2003) ENGINE ASSEMBLY Parts Diagram

32" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp

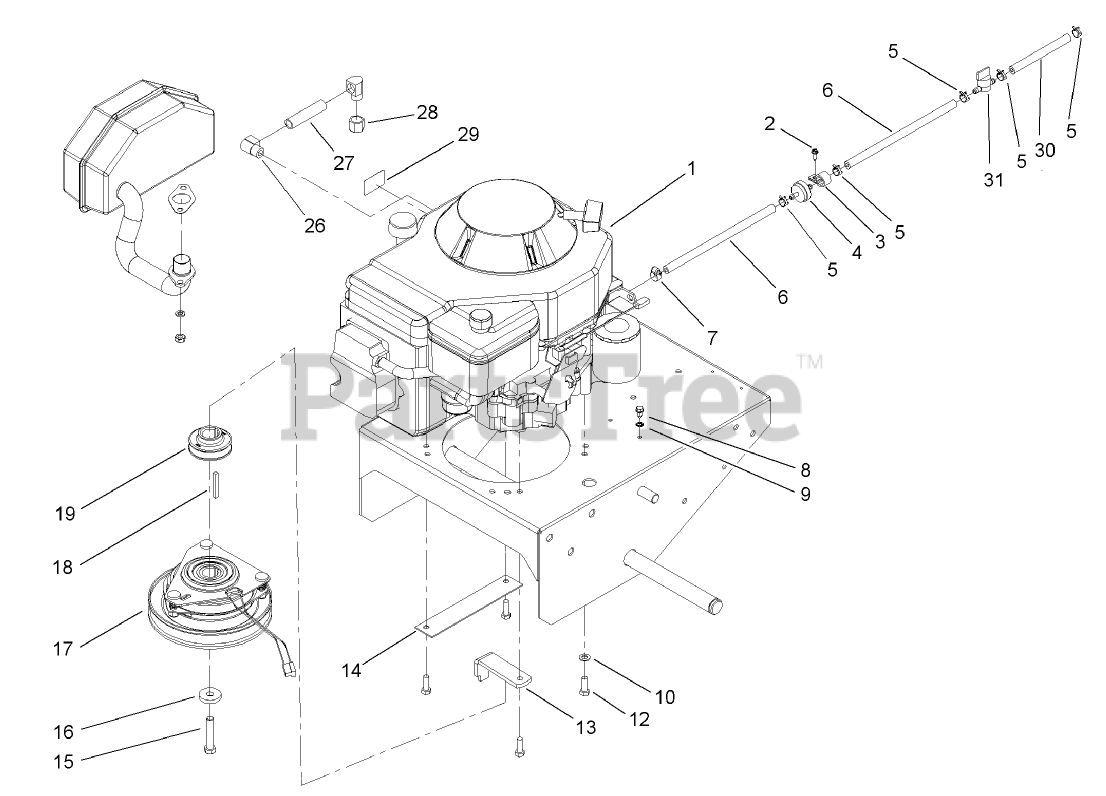

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Engine-Kohler, Cv13t-Ps-21524

Note: Not serviced separately

$

$

Not available

2

Toro 32144-19

SCREW-SHWH

$1.49

$

Usually ships in 3-6 days

0

3

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

4

Toro 56-6360

FILTER-FUEL

$6.49

$

In Stock, Qty 20+

0

5

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

6

Toro 47-2982

HOSE-FUEL
(Superseded to 110-4894)

$9.99

$

In Stock, only 1 left!

0

7

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

8

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

9

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

12

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

13

Toro 51-4540-03

RETAINER-CLUTCH

$21.99

$

In Stock, only 3 left!

0

14

Toro 74-0930-01

GUARD-PULLEY

$

$

Not available

15

Toro 3212-9

SCREW-HH

$12.99

$

In Stock, only 2 left!

0

16

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

17

Toro 105-2635

CLUTCH / BRAKE ASM

$576.99

$

In Stock, only 1 left!

0

18

Toro 608006

KEY-SQUARE

$5.49

$

In Stock, only 1 left!

0

19

Toro 105-0827

PULLEY-DRIVE
(Superseded to 107-4112)

$137.99

$

Usually ships in 3-6 days

0

26

Toro 74-0950

ELBOW-STREET, 90 DEG

$

$

Not available

27

Toro 289-20

NIPPLE-PIPE

$

$

Not available

28

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

29

Toro 106-0699

DECAL-WARNING

$55.99

$

Usually ships in 3-6 days

0

30

Toro 47-2966

HOSE-FUEL
(Superseded to 109-0678)

$5.49

$

Usually ships in 3-6 days

0

31

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 5

0
