30314 TE - Toro 91cm ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp (SN: 250000001 - 250999999) (2005) ROLLER, COVER AND DEFLECTOR ASSEMBLY Parts Diagram

91cm ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp

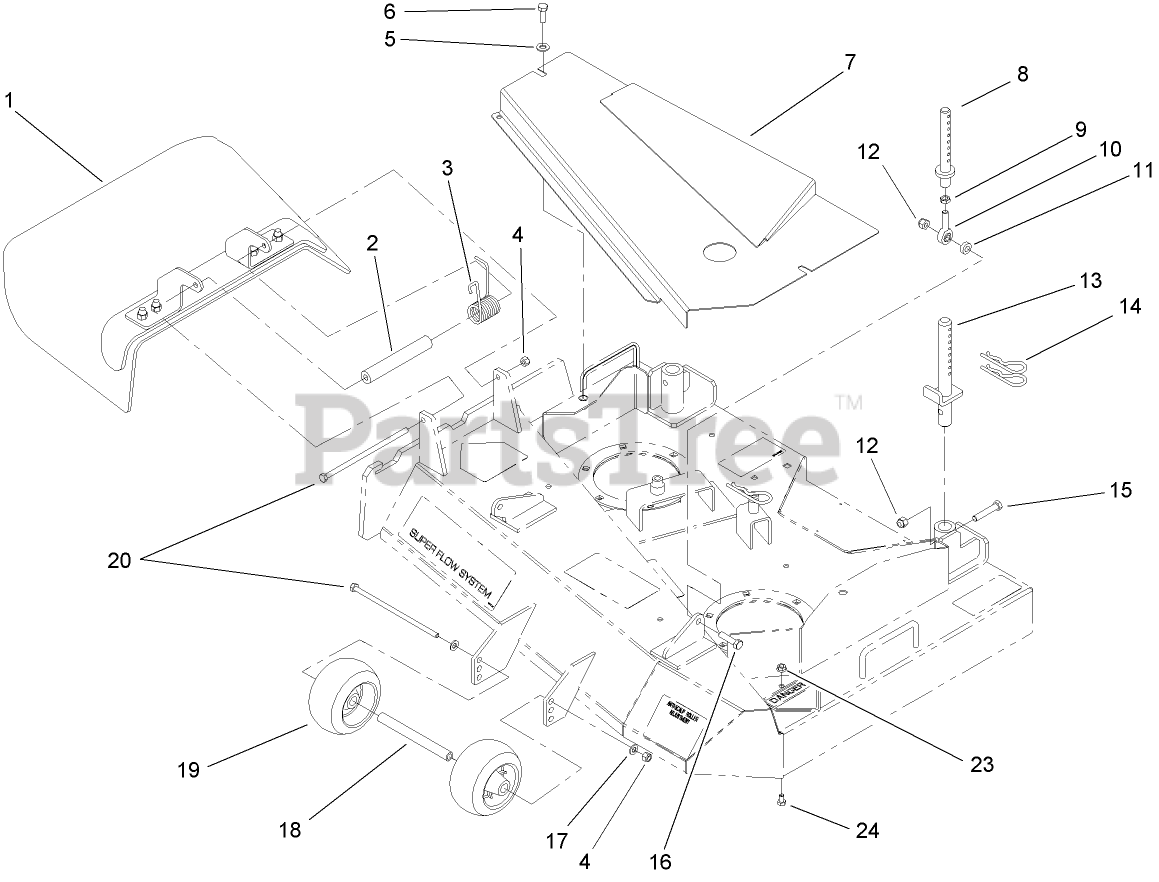

ROLLER, COVER AND DEFLECTOR ASSEMBLY Parts Diagram

  • Title

1

Toro 107-4194

DEFLECTOR ASM

$285.99

$

Usually ships in 3-6 days

0

2

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

3

Toro 104-8554

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

7

Toro 106-5508-01

COVER ASM

$

$

Not available

8

Toro 106-0684

FRONT PIN ASM

$

$

Not available

9

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

10

Toro 1-613204

BALLJOINT

$31.99

$

In Stock, only 2 left!

0

11

Toro 104-1156

SPACER

$7.49

$

In Stock, only 2 left!

0

12

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Toro 106-3365

REAR PIN ASM

$

$

Not available

14

Toro 3290-256

PIN-HAIR

$8.49

$

In Stock, Qty 9

0

15

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Toro 98-5967

SPACER-WHEEL

$15.99

$

Usually ships in 3-6 days

0

19

Toro 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

20

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

23

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0
