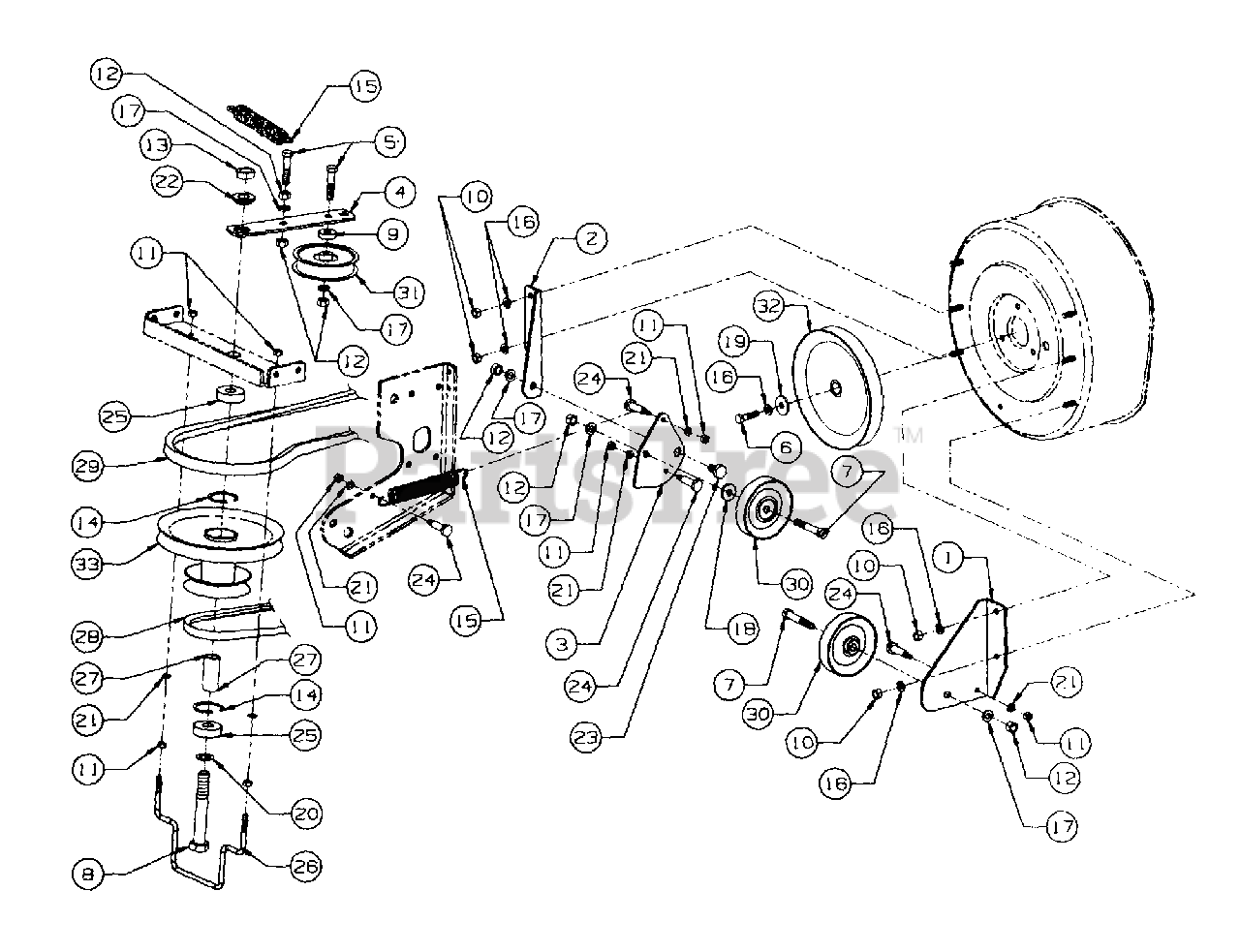

303 (190-303-100) - Cub Cadet 40" Snow Thrower Attachment Drive Belts & Pulleys Parts Diagram

40" Snow Thrower Attachment

Drive Belts & Pulleys Parts Diagram

  • Title

1

Cub Cadet 703-2729

Bracket, Fixed Idler - RH

Variations

Cub Cadet 703-2729-0498

BRACKET-FIXED IDLE(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2729-0637

BRACKET-FIXED IDLE(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 703-2741

Bracket, Idler - LH

Variations

Cub Cadet 703-2741-0498

IDLER BRACKET L/H (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2741-0637

IDLER BRACKET L/H (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 703-2742

Plate, Floating Idler

Variations

Cub Cadet 703-2742-0637

PLATE-FLOATING IDL(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-2742-0498

PLATE-FLOATING IDL(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

4

Cub Cadet 703-2749

Arm, Idler

Variations

Cub Cadet 703-2749-0498

ARM IDLER (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2749-0637

ARM IDLER (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 710-0347

Screw, Hex Cap, 3/8-16 X 1.75 Lg GR5

$5.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0672

Screw, Hex Cap, 5/16-24 X 1.25 Lg GR5

$4.49

$

In Stock, Qty 18

0

7

Cub Cadet 701-0756

Screw, Hex Cap, 3/8-16 X 2.25 Lg

$

$

Currently unavailable

8

Cub Cadet 710-0929

Screw, Hex Cap, 5/8-18 X 4.50 Lg GR5
(Superseded to 710-3151A)

$18.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 711-0242

Spacer, .38 ID X 1.00 OD X .32 Lg

$4.49

$

In Stock, Qty 9

0

10

Cub Cadet 712-0123

Nut, Hex, 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

11

Cub Cadet 712-0287

Nut, Hex, 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

12

Cub Cadet 712-0798

Nut, Hex, 3/8-16

$4.49

$

In Stock, Qty 12

0

13

Cub Cadet 712-0923

Nut, Hex Center Lock, 5/8-18

$6.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 716-3020

Ring, Internal Snap
(Superseded to 916-3020)

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 732-0478

Spring, Extension
(Superseded to 932-0478)

$12.99

$

In Stock, Qty 10

0

16

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0206

Washer, Flat, .378 X 1.00 X .125 Thk
(Superseded to 936-0206)

$4.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 736-0231

Washer, Flat, .344 X 1.125 X .063 Thk

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0290

Washer, Flat, .625 X 1.00 X .063 Thk HDN

$6.99

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

22

Cub Cadet 736-0341A

Washer, Flange
(Superseded to 736-0341B)

$

$

Not available

23

Cub Cadet 738-0258

Bolt, Shoulder, .500 Dia X .250 Lg
(Superseded to 938-0258)

$

$

Not available

Cub Cadet 736-0192

Washer, Flat, .531 X .93 X .090 Thk

$4.49

$

In Stock, Qty 18

0

24

Cub Cadet 738-0572

Bolt, Shoulder, .374 Dia X 1.160 Lg

$7.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 741-0524

Bearing, Ball, .62 l D X 1.57 OD X .44 Thk
(Superseded to 941-0524A)

$23.99

$

In Stock, Qty 20+

0

26

Cub Cadet 747-3250

Guard, Belt

$

$

Not available

27

Cub Cadet 750-3164

Spacer, Pulley, .635 ID X .88 OD X 2.00 Lg

$16.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 754-0339

Belt, Auger, A-Section X 79 Lg
(Superseded to 954-0339A)

$71.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 754-3075

Belt, PTO, B-Section X 78.6
(Superseded to 954-3075)

$66.99

$

In Stock, only 3 left!

0

30

Cub Cadet 756-0399

Pulley, V-Idler
(Superseded to 956-0399)

$50.99

$

In Stock, only 2 left!

0

31

Cub Cadet 756-0405

Pulley, Flat Idler

$71.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 756-0430

Pulley, Auger Idler

$100.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 756-3080

Pulley, Double Drive

$

$

Not available
