30299 TE - Toro 112cm ProLine Walk-Behind Mower, T-Bar, Hydro Drive, 15hp (SN: 260000001 - 260999999) (2006) CARRIER FRAME ASSEMBLY Parts Diagram

112cm ProLine Walk-Behind Mower, T-Bar, Hydro Drive, 15hp

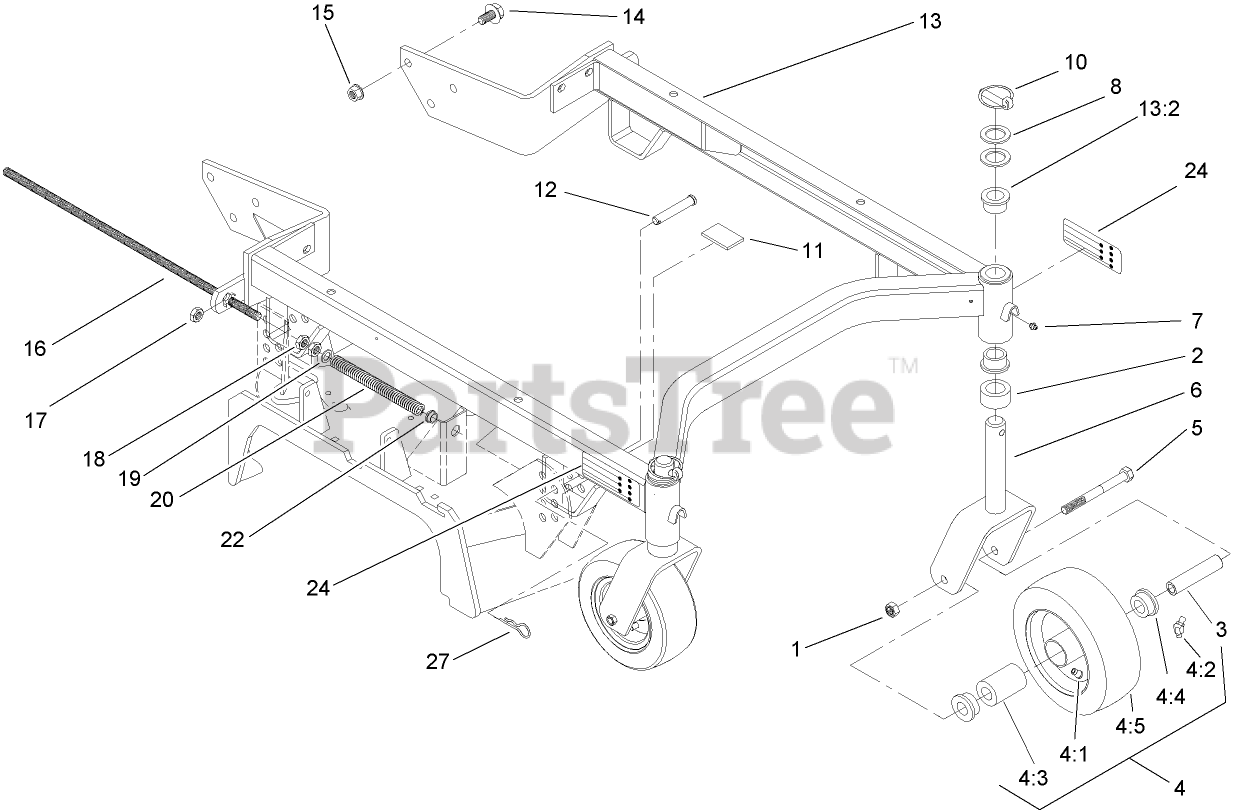

CARRIER FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

2

Toro 93-1166

SPACER-CASTOR

$38.99

$

Usually ships in 3-6 days

0

3

Toro 100-6453

BUSHING-SPANNER

$26.99

$

In Stock, only 2 left!

0

4

Toro 100-6451

CASTER WHEEL ASM

$159.99

$

In Stock, only 2 left!

0

4:1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

4:2

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0

4:3

Toro 83-4740

BEARING

$14.99

$

In Stock, Qty 5

0

4:4

Toro 62-5580

BEARING-OUTSIDE

$7.49

$

In Stock, only 2 left!

0

4:5

Toro 100-6452

TIRE-TUBELESS

$71.99

$

In Stock, only 2 left!

0

5

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

6

Toro 100-6455-01

CASTOR FORK ASM

$259.99

$

Usually ships in 3-6 days

0

7

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

8

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

10

Toro 3290-384

PIN-LYNCH

$22.99

$

Usually ships in 3-6 days

0

11

Toro 74-0340

CUSHION-RUBBER

$4.99

$

Usually ships in 3-6 days

0

12

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

13

Toro 94-4175

FRAME ASM

$2121.99

$

Usually ships in 3-6 days

0

13:2

Toro 94-1291

BUSHING

$11.99

$

In Stock, Qty 10

0

14

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

15

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

16

Toro 74-0310

SHAFT-ADJUSTING

$64.99

$

In Stock, only 2 left!

0

17

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

18

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

19

Toro 41-8440

WASHER

$1.99

$

In Stock, only 4 left!

0

20

Toro 74-0290

SPRING

$27.99

$

Usually ships in 3-6 days

0

22

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

24

Toro 93-7819

DECAL-HOC

$9.99

$

Usually ships in 3-6 days

0

27

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0
