30299 TE - Toro 112cm ProLine Walk-Behind Mower, T-Bar, Hydro Drive, 15hp (SN: 250000001 - 250999999) (2005) EXHAUST ASSEMBLY KOHLER CV15S-41620 Parts Diagram

112cm ProLine Walk-Behind Mower, T-Bar, Hydro Drive, 15hp

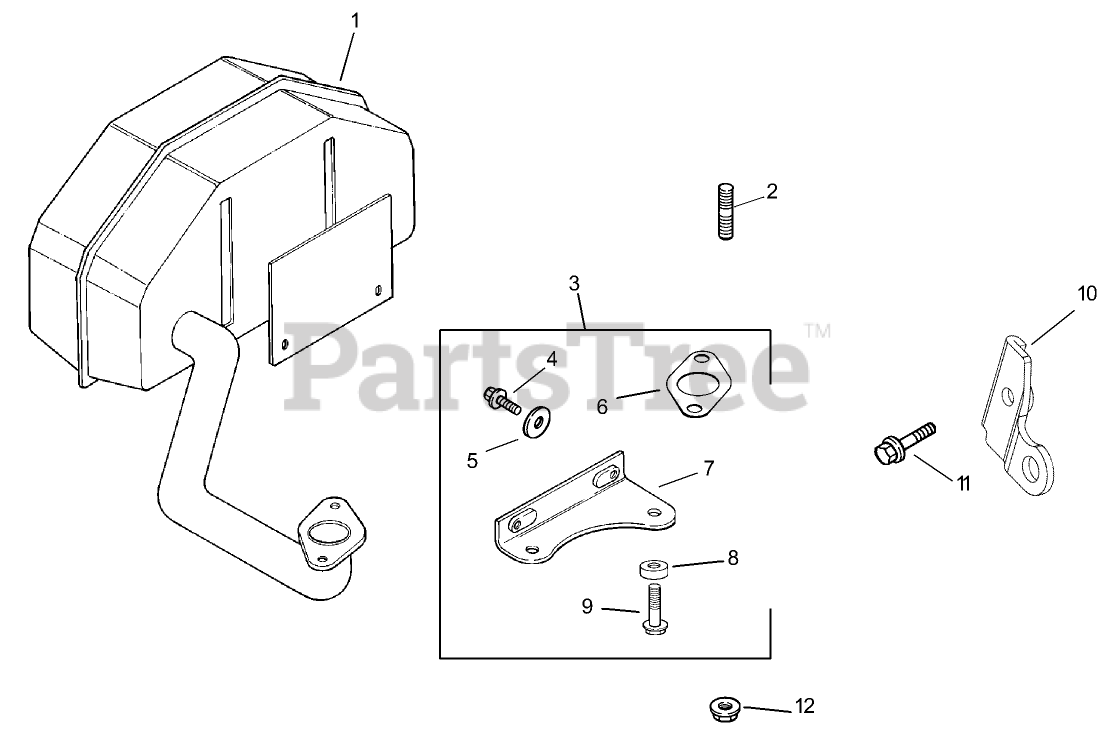

EXHAUST ASSEMBLY KOHLER CV15S-41620 Parts Diagram

  • Title

1

Kohler 12 068 35-S

Muffler

Note: Obtain from Kohler.

$

$

Not available

2

Kohler 25 072 04-S

STUD (M8X1.25X33)
(Superseded to 25 072 24-S)

Note: Obtain from Kohler.

$3.99

$

In Stock, Qty 14

0

3

Kohler 12 755 30-S

Kit, bracket (Incl. Ref. #4-9)

Note: Obtain from Kohler.

$

$

Not available

4

Kohler M-650012-S

Screw-HF (M6x1.0x12)

Note: Obtain from Kohler.

$3.49

$

In Stock, only 3 left!

0

5

Kohler X-25-52-S

Washer-Flat (1/4)

Note: Obtain from Kohler.

$3.99

$

In Stock, only 1 left!

0

6

Kohler 12 041 03-S

Gasket-Manifold, Exhaust

Note: Obtain from Kohler.

$7.49

$

In Stock, Qty 9

0

7

Kohler 12 126 55-S

Bracket-Muffler

Note: Obtain from Kohler.

$

$

Not available

8

Kohler 12 468 01-S

Washer

Note: Obtain from Kohler.

$2.99

$

Usually ships in 2-5 days

0

9

Kohler 12 086 13-S

Screw-HF (M8x1.25x 50)
(Superseded to 25 086 618-S)

Note: Obtain from Kohler.

$2.99

$

Usually ships in 2-5 days

0

10

Kohler 12 126 87-S

Bracket-Strap, Lifting

Note: Obtain from Kohler.

$

$

Not available

11

Kohler M-645020-S

SCREW-HHFTF (M6X1.0X20)
(Superseded to 25 086 396-S)

Note: Obtain from Kohler.

$2.49

$

In Stock, only 1 left!

0

12

Kohler M-841080-S

NUT-FLANGE (M8X1.25)

Note: Obtain from Kohler.

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 522 18

Block-Short

Note: Obtain from Kohler.

$1933.99

$

Usually ships in 2-5 days

0

Kohler 12 522 18

Block-Short

Note: Not illustrated

$1933.99

$

Usually ships in 2-5 days

0

Kohler 12 755 93-S

Gasket Set

Note: Not illustrated

$89.99

$

Usually ships in 2-5 days

0

Kohler 12 755 93-S

Gasket Set

Note: Obtain from Kohler.

$89.99

$

Usually ships in 2-5 days

0
