30297 - Toro 52" ProLine Walk-Behind Mower, Hydro Drive, 17hp (SN: 210005001 - 210999999) (2001) WHEEL MOTORS, PUMP BELT AND PUMP IDLER ASSEMBLY Parts Diagram

52" ProLine Walk-Behind Mower, Hydro Drive, 17hp

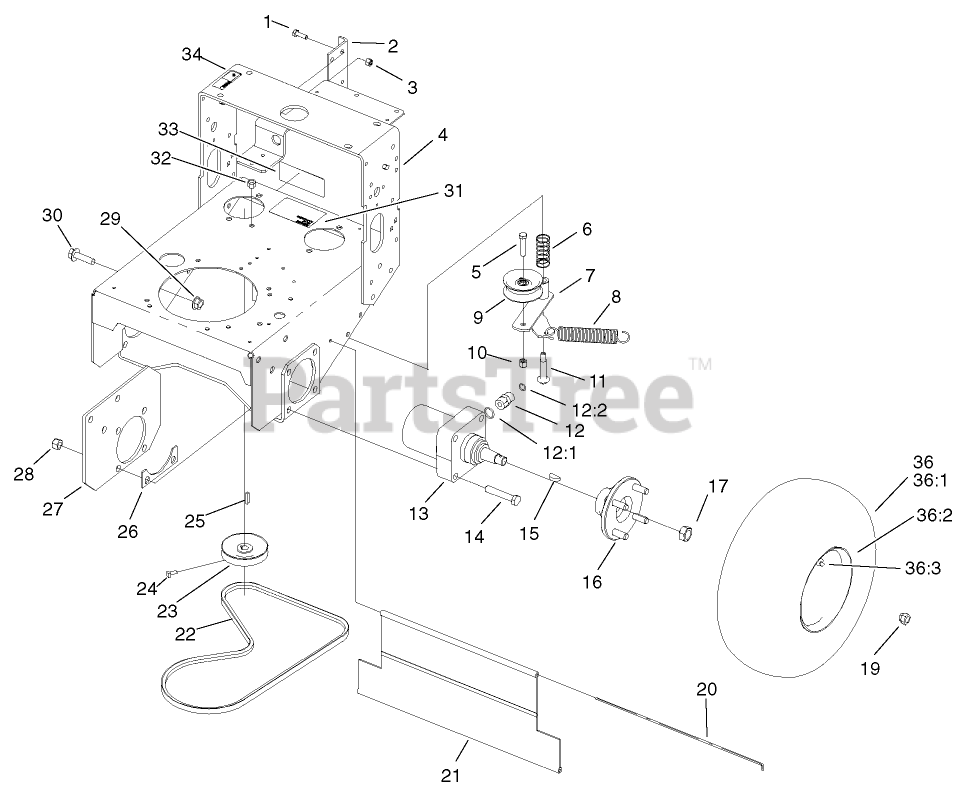

WHEEL MOTORS, PUMP BELT AND PUMP IDLER ASSEMBLY Parts Diagram

  • Title
1

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 105-0876-01

BRACKET-BUSHING

$

$

Not available

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 104-1100-01

FRAME ASM

$

$

Not available

5

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 88-1880

SPRING-COMPRESSION

$49.99

$

Usually ships in 3-6 days

0

7

Toro 86-4770

IDLER LEVER ASM

$107.99

$

Usually ships in 3-6 days

0

8

Toro 68-2190

SPRING

$74.99

$

In Stock, only 1 left!

0

9

Toro 62-4540

PULLEY

$92.99

$

In Stock, only 1 left!

0

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

11

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

12

Toro 340-6

FITTING-STRAIGHT

$20.99

$

In Stock, only 2 left!

0

12:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

12:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

13

Toro 104-1171

HYD MOTOR ASM

$1198.99

$

Usually ships in 3-6 days

0

14

Toro 325-11

SCREW-HH

$2.99

$

In Stock, Qty 7

0

15

Toro 80-6090

KEY-PUMP

$9.99

$

In Stock, only 2 left!

0

16

Toro 105-0800

WHEEL HUB ASM

$248.99

$

In Stock, only 1 left!

0

17

Toro 85-7310

NUT-MOTOR, WHEEL

$27.99

$

Usually ships in 3-6 days

0

19

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

20

Toro 95-1529

ROD-SHIELD

$5.49

$

Usually ships in 3-6 days

0

21

Toro 95-1526

SHIELD-TRAILING

$80.99

$

Usually ships in 3-6 days

0

22

Toro 82-4110

BELT-V

$41.99

$

Usually ships in 3-6 days

0

23

Toro 95-1528

PULLEY-PUMP

$122.99

$

Usually ships in 3-6 days

0

24

Toro 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

25

Toro 3257-8

KEY-WOODRUFF

$5.49

$

In Stock, Qty 5

0

26

Toro 86-4740-01

SPACER-FRAME

$

$

Not available

27

Toro 104-6326-01

PLATE-FRAME

$

$

Not available

28

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

29

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

30

Toro 3234-22

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

30

Toro 3234-32

SCREW-HHF

$10.99

$

In Stock, only 1 left!

0

31

Toro 95-1543

DECAL-ADJUSTMENT, VALVE

$

$

Not available

32

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

33

Toro 98-0776

DECAL-CAUTION

$18.99

$

Usually ships in 3-6 days

0

34

Toro 95-2814

DECAL-SHUT OFF, FUEL

$

$

Not available

36

Toro 104-1198

WHEEL AND TIRE ASM

$360.99

$

Usually ships in 3-6 days

0

36:1

$121.99

$

Usually ships in 3-6 days

0

36:2

$

$

Not available

36:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0
